Engineered to improve drivetrain stability, reduce excessive engine movement, and provide increased durability compared with aging factory rubber and hydraulic engine mounts, this performance-oriented mounting kit is an excellent upgrade for daily-driven Accords, modified street cars, and high-performance builds.

The factory engine mounting system is designed to isolate vibration and maintain passenger comfort. However, as original rubber and hydraulic mounts age, they can crack, deteriorate, or leak, allowing excessive engine and transmission movement during acceleration, deceleration, and gear changes.

Excessive drivetrain movement can contribute to inconsistent throttle response, unwanted engine rocking, wheel hop, and additional stress on surrounding components. These problems may become more noticeable in modified vehicles producing increased horsepower and torque.

Innovative Mounts addresses these concerns with heavy-duty steel mounting assemblies and specially engineered polyurethane bushings. Unlike conventional fluid-filled hydraulic mounts, the polyurethane design provides increased resistance to drivetrain movement while maintaining vibration isolation appropriate to the selected bushing hardness.

The Innovative Mounts 20251 includes three primary mounting assemblies and a driver-side mounting bracket. Together, these components provide a coordinated mounting solution for compatible automatic-transmission Accord applications.

Each mount features Innovative Mounts' unique no-tear polyurethane bushing design, engineered to control excessive drivetrain movement while minimizing unnecessary binding. This construction helps maintain more consistent engine positioning under load and can improve overall drivetrain response.

The kit is CAD/CAM designed, stress analyzed, and engineered for bolt-on installation using compatible factory mounting locations and original Honda mounting hardware.

Important: Installation requires the appropriate F-Series timing belt-side engine post mount, Honda part number 11910-P0A-010, used in specified 1995–1998 Honda Odyssey and 1994–2002 Honda Accord applications.

The Innovative Mounts 20251 also supports compatible 1998-and-newer H-Series engine configurations using the specified mounting arrangement. For earlier H-Series engines requiring the Prelude-style timing belt-side mounting post, Innovative Mounts offers the alternative 20253 automatic-transmission conversion kit.

Available in 75A, 85A, and 95A polyurethane bushing hardness options, this kit allows enthusiasts to select the appropriate level of drivetrain rigidity for their intended use.

Whether you're replacing worn factory mounts on your Accord, upgrading a naturally aspirated F23 engine, or completing a compatible automatic H-Series conversion, the Innovative Mounts 20251 provides a durable foundation for improved drivetrain stability and performance.

Features

• Complete Three-Mount Replacement / Conversion Kit: Includes driver-side, passenger-side, and rear engine mounting assemblies.

• Driver-Side Mounting Bracket Included: Provides the required mounting arrangement for supported F-Series and 1998+ H-Series configurations.

• 1998–2002 Honda Accord Compatibility: Designed for compatible sixth-generation Accord CG3/CG5 chassis applications.

• Automatic Transmission Specific: Engineered for supported automatic-transmission configurations.

• F-Series Engine Compatibility: Designed for compatible Honda F-Series engine applications.

• 1998+ H-Series Compatibility: Supports compatible later H-Series configurations using the required engine mounting components.

• Heavy-Duty Steel Construction: Durable steel mounting assemblies engineered for increased strength and drivetrain support.

• Direct Factory Replacement: Replaces compatible original Honda engine and transmission mounting components.

• Bolt-On Installation: Designed around supported factory chassis mounting locations.

• Uses Factory/OEM Hardware: Utilizes compatible original Honda mounting hardware.

• Reduced Engine Movement: Helps minimize excessive drivetrain rocking during acceleration, deceleration, and automatic transmission shifts.

• Improved Drivetrain Response: Firmer polyurethane bushings reduce unwanted mount deflection under load.

• Reduced Wheel Hop: Helps control drivetrain movement that can contribute to wheel hop during aggressive acceleration.

• Improved Powertrain Stability: Maintains more consistent engine and transmission positioning during changes in load.

• Innovative No-Tear Polyurethane Bushings: Engineered for durability and controlled vibration isolation.

• Multiple Bushing Hardness Options: Available in 75A, 85A, and 95A configurations.

• No Hood Modifications Required: Designed for supported installations without trimming or notching the factory hood.

• CAD/CAM Designed: Developed using computer-aided design for accurate fitment.

• Stress Analyzed: Engineered for demanding street and performance driving conditions.

• Lifetime Manufacturer Warranty: Backed by Innovative Mounts' lifetime warranty, subject to manufacturer terms.

Popular Performance Applications

1998–2002 Honda Accord F23 Automatic

An excellent upgrade for sixth-generation Accord owners seeking improved drivetrain stability and reduced engine movement compared with worn factory mounts.

Naturally Aspirated F-Series Performance Builds

Helps control unwanted engine movement in modified F-Series engines equipped with performance intake systems, upgraded camshafts, headers, and exhaust modifications.

Turbocharged F23 Applications

Provides firmer drivetrain support for compatible turbocharged F23 builds where increased torque places additional demands on the factory mounting system.

1998+ H-Series Automatic Conversions

Suitable for supported later H-Series engine configurations installed in the sixth-generation Accord chassis using the required mounting arrangement.

Street Performance Builds

The 75A polyurethane bushing option provides increased drivetrain rigidity while retaining some vibration isolation for performance-oriented street vehicles.

Autocross and Track Applications

The 85A polyurethane bushing option provides increased resistance to engine movement during aggressive acceleration, braking, and cornering.

High-Horsepower Competition Applications

The 95A polyurethane bushing option offers maximum resistance to drivetrain movement for dedicated competition vehicles.

Factory Hydraulic Engine Mount Replacement

A performance-oriented alternative for replacing worn, cracked, or leaking original rubber and hydraulic engine mounts.

Additional Information

• Manufacturer: Innovative Mounts
• Part Number: 20251
• Product Type: Steel Replacement / Conversion Engine Mount Kit
• Mount Construction: Steel
• Bushing Material: Polyurethane
• Number of Mounts: 3
• Additional Bracket: Driver-Side Engine Mount Bracket
• Mounting Positions: Driver-Side Engine / Passenger-Side Transmission / Rear Engine
• Primary Vehicle Application: 1998–2002 Honda Accord
• Chassis Compatibility: CG3 / CG5
• Engine Compatibility: Honda F-Series / Compatible 1998+ H-Series
• Transmission Compatibility: Automatic Transmission
• Installation Type: Bolt-On Replacement / Conversion
• Required Timing Belt-Side Engine Post: Honda 11910-P0A-010
• Hood Modification Required: No, for supported configurations
• Manufacturer-Listed Kit Weight: Approximately 14 lbs
• Manufacturer Warranty: Lifetime Warranty, Subject to Manufacturer Terms

Individual Mount Components:

• 20210: Driver-Side Engine Mount

• 20210-SB: Driver-Side Mounting Bracket

• 20220: Passenger-Side Transmission Mount

• 20231: Rear Engine Mount – Automatic Transmission

Alternative Manual Transmission Kit: Innovative Mounts 20250

Alternative Earlier H-Series Automatic Conversion Kit: Innovative Mounts 20253

Available Polyurethane Bushing Hardness Options:

• 75A – Black: Street and performance configuration offering increased drivetrain rigidity. Manufacturer-recommended for approximately 250–400 HP.

• 85A – Gray: Track-oriented configuration designed to further reduce drivetrain movement. Manufacturer-recommended for approximately 400–500 HP.

• 95A – Red: Race-oriented configuration providing maximum resistance to drivetrain movement. Manufacturer-recommended for applications exceeding 500 HP.

Bushing Selection Note: Horsepower ranges are general manufacturer recommendations rather than guaranteed capacity limits. Actual bushing selection should consider engine torque, vehicle use, transmission configuration, and acceptable vibration levels.

Automatic Transmission Note: Firmer polyurethane mounts may transmit more vibration into the cabin, particularly at idle or when the transmission is engaged in Drive or Reverse.

Common Reasons for Replacement

• Worn Factory Engine Mounts: Aging rubber mounting components can deteriorate, crack, or separate, allowing excessive drivetrain movement.

• Leaking Hydraulic Engine Mounts: Factory hydraulic mounts may lose damping fluid, reducing their ability to control engine movement.

• Excessive Engine Rocking: Unwanted drivetrain movement during acceleration and deceleration can negatively affect vehicle response.

• Engine Movement During Automatic Shifts: Firmer polyurethane bushings help maintain more consistent engine and transmission positioning.

• Wheel Hop During Acceleration: Reduced drivetrain movement can help minimize conditions that contribute to wheel hop.

• High-Horsepower F-Series Builds: Increased engine torque places additional demands on factory mounting components.

• H-Series Engine Conversion: Provides the required mounting arrangement for supported later H-Series automatic-transmission applications.

• Improved Drivetrain Response: Reduced mount deflection helps provide more consistent powertrain positioning under load.

• Damaged Factory Mount Bushings: Replaces deteriorated original rubber and hydraulic mounting components.

• Coordinated Mount Replacement: Replacing all three primary mounts together helps eliminate unwanted movement caused by worn components.

• Street and Track Performance: Improves drivetrain stability during demanding driving conditions.

Installation Notes

1. Verify Vehicle Compatibility: Confirm that the vehicle is a supported 1998–2002 Honda Accord CG3/CG5 chassis.

2. Confirm Engine Configuration: Verify that the vehicle uses a compatible F-Series or 1998-and-newer H-Series engine.

3. Verify Transmission Type: Innovative Mounts 20251 is designed specifically for compatible automatic-transmission applications.

4. Confirm Required Timing Belt-Side Engine Post: Installation requires Honda part number 11910-P0A-010.

5. Check Earlier H-Series Applications: Older H-Series engine configurations using a different timing belt-side post may require Innovative Mounts 20253.

6. Support the Engine and Transmission: Properly support the drivetrain before removing the original mounting components.

7. Remove the Factory Engine Mounts: Follow the appropriate Honda service procedures when removing the original engine and transmission mounting assemblies.

8. Inspect Factory Mounting Locations: Check the chassis mounting points, engine brackets, transmission brackets, and surrounding components for damage or excessive wear.

9. Install the Driver-Side Engine Mount: Position the Innovative Mounts 20210 assembly according to the manufacturer's instructions.

10. Install the Driver-Side Mounting Bracket: Position the included Innovative Mounts 20210-SB bracket in the designated mounting location.

11. Install the Passenger-Side Transmission Mount: Position the Innovative Mounts 20220 assembly according to the manufacturer's instructions.

12. Install the Rear Engine Mount: Position the Innovative Mounts 20231 automatic-transmission rear mount in the designated mounting location.

13. Reuse Compatible OEM Hardware: The kit is designed to utilize original Honda mounting hardware. Inspect all bolts and fasteners before reuse.

14. Align the Drivetrain: Ensure the engine and transmission are properly positioned before final tightening to prevent unnecessary bushing preload.

15. Torque Mounting Hardware: Tighten all fasteners according to Innovative Mounts' installation instructions and applicable Honda service specifications.

16. Verify Component Clearance: Inspect clearance around the engine, transmission, exhaust system, intake components, axles, and surrounding chassis structure.

17. Check Automatic Transmission Operation: After installation, verify that the drivetrain remains properly positioned when shifting between Park, Reverse, Neutral, and Drive.

18. Select the Appropriate Bushing Hardness: Choose the polyurethane durometer that best matches the vehicle's horsepower level, intended use, and acceptable vibration.

19. Expect Increased Engine Vibration: Performance polyurethane mounts generally transmit more vibration into the chassis than factory rubber or hydraulic mounts. Higher-durometer bushings typically increase vibration further.

20. Inspect After Installation: Recheck mounting hardware, drivetrain alignment, and surrounding component clearances after the initial driving period.

21. Professional Installation Recommended: Installation by an experienced Honda technician or performance automotive specialist is strongly recommended.

22. Confirm Fitment Before Bolting Down: Innovative Mounts states that mounts showing installation bolt impressions cannot be returned or exchanged. Verify all mounting requirements before installation.

What's Included

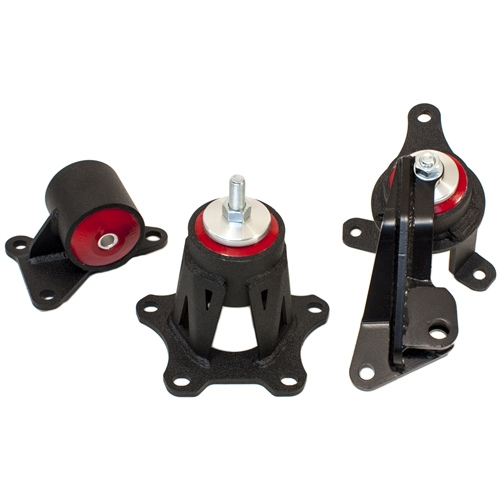

• (1) Driver-Side Engine Mount – Innovative Mounts 20210

• (1) Driver-Side Mounting Bracket – Innovative Mounts 20210-SB

• (1) Passenger-Side Transmission Mount – Innovative Mounts 20220

• (1) Rear Engine Mount – Innovative Mounts 20231

• Polyurethane Bushings in the Selected Durometer

Important: This product is a three-mount, one-bracket replacement / conversion kit specifically designed for compatible automatic-transmission applications.

The Honda 11910-P0A-010 timing belt-side engine post mount is required and must be sourced separately if not already installed.

The kit uses compatible factory Honda mounting hardware. Replacement OEM fasteners are not included unless otherwise specified.

This kit is not compatible with manual-transmission applications. For those vehicles, see Innovative Mounts 20250.

Upgrade your sixth-generation Honda Accord with the Innovative Mounts Steel Replacement / Conversion Engine Mount Kit (20251), engineered for 1998–2002 CG3/CG5 chassis applications equipped with compatible F-Series or 1998-and-newer H-Series engines and automatic transmissions.

Featuring heavy-duty steel construction, Innovative Mounts' no-tear polyurethane bushings, three replacement engine mounts, and a driver-side mounting bracket, this kit provides improved drivetrain stability, reduced engine movement, and more consistent driving response.

Whether you're replacing worn factory hydraulic mounts, upgrading your F23-powered Accord, building a turbocharged F-Series performance vehicle, or completing a compatible H-Series automatic conversion, Innovative Mounts delivers the strength, durability, and drivetrain control enthusiasts demand.
