Upgrade your Honda CR-Z drivetrain with the Innovative Mounts Steel Replacement Engine Mount Kit (11550), designed for 2011–2015 Honda CR-Z ZF chassis applications equipped with the factory LEA-series 1.5L hybrid engine and either a six-speed manual or CVT transmission.

Engineered to improve drivetrain stability, reduce excessive engine movement, and provide increased durability compared with aging factory rubber and hydraulic mounts, this performance-oriented three-piece replacement kit is an excellent upgrade for daily-driven vehicles, modified street cars, autocross builds, and track-focused Honda CR-Z applications.

Factory Honda engine mounts are designed primarily to isolate engine vibration and maintain passenger comfort. Over time, original rubber and fluid-filled mounting components can deteriorate, crack, leak, or separate, allowing excessive engine and transmission movement during acceleration, deceleration, and shifting.

Excessive drivetrain movement can contribute to wheel hop, reduced throttle response consistency, unwanted vibration from damaged mounts, and additional stress on surrounding components. These issues may become more noticeable in modified applications where increased engine output places additional demands on the factory mounting system.

Innovative Mounts addresses these limitations with durable steel mounting assemblies and specially engineered polyurethane bushings. The upgraded design helps maintain more consistent engine and transmission positioning under load, reducing drivetrain deflection and improving overall driving response.

The Innovative Mounts 11550 includes replacement mounts for the driver-side, passenger-side, and rear mounting positions. By upgrading all three locations together, the kit provides a coordinated mounting solution rather than replacing only one worn factory component.

Unlike conventional factory rubber or hydraulic mounts, Innovative Mounts' performance-oriented polyurethane bushings provide a firmer connection between the drivetrain and chassis. The company's unique no-tear bushing design is engineered to control engine movement while providing vibration isolation appropriate to the selected bushing hardness.

Each mount is CAD/CAM designed and stress analyzed for strength, durability, and precise fitment. The kit is designed as a direct bolt-in replacement for compatible factory mounting locations, requiring no hood trimming or notching.

Available in multiple polyurethane bushing hardness options, the Innovative Mounts 11550 allows enthusiasts to select the appropriate balance between everyday driving comfort and performance-oriented drivetrain rigidity.

Whether you're replacing worn factory mounts on your Honda CR-Z, improving drivetrain stability in your six-speed manual model, or upgrading a modified LEA-powered hybrid performance build, the Innovative Mounts 11550 provides the strength, durability, and drivetrain control needed for demanding applications.

Features

• Complete Three-Mount Replacement Kit: Includes driver-side, passenger-side, and rear engine mounts.

• Heavy-Duty Steel Construction: Durable steel mounting assemblies engineered for increased strength and long-term performance.

• Honda CR-Z Compatibility: Designed for compatible 2011–2015 Honda CR-Z ZF chassis applications.

• LEA-Series Engine Compatibility: Engineered for the factory Honda CR-Z 1.5L hybrid powertrain.

• Manual and CVT Compatibility: Designed for compatible six-speed manual and continuously variable transmission applications.

• Direct Bolt-In Replacement: Installs in supported factory mounting locations without extensive chassis modifications.

• Reduced Engine Movement: Helps minimize excessive drivetrain rocking during acceleration and deceleration.

• Improved Drivetrain Response: Firmer polyurethane bushings reduce unwanted drivetrain deflection under load.

• Improved Shifting Consistency: Reduced drivetrain movement can improve drivetrain stability during manual gear changes.

• Reduced Wheel Hop: Helps control engine movement that can contribute to wheel hop during aggressive acceleration.

• Innovative No-Tear Polyurethane Bushings: Engineered for durability and controlled vibration isolation.

• Multiple Bushing Hardness Options: Available in 75A, 85A, and 95A polyurethane configurations.

• Factory Replacement Design: Maintains the intended mounting arrangement for compatible CR-Z applications.

• No Hood Modifications Required: Designed to install without trimming or notching the factory hood.

• CAD/CAM Designed: Developed using computer-aided design for accurate fitment and manufacturing consistency.

• Stress Analyzed: Engineered to withstand demanding street and performance driving conditions.

• Street and Competition Applications: Suitable for modified daily drivers, autocross vehicles, and track-oriented builds.

• Lifetime Manufacturer Warranty: Backed by Innovative Mounts' lifetime warranty, subject to manufacturer terms.

Popular Performance Applications

2011–2015 Honda CR-Z Performance Builds

An excellent upgrade for CR-Z owners seeking improved drivetrain stability and reduced engine movement compared with deteriorated factory mounts.

Honda CR-Z Six-Speed Manual Performance Upgrades

Provides firmer engine and transmission support for manual-equipped CR-Z applications, helping minimize unwanted drivetrain movement during aggressive acceleration and shifting.

Honda CR-Z CVT Applications

Offers improved drivetrain stability for compatible CVT-equipped CR-Z models while retaining the factory transmission mounting arrangement.

Naturally Aspirated LEA Performance Builds

Suitable for compatible vehicles equipped with performance intake systems, upgraded exhaust components, engine management, and other naturally aspirated modifications.

Supercharged Honda CR-Z Applications

Helps control excessive drivetrain movement in compatible supercharged LEA builds where increased torque places additional stress on factory mounting components.

Street Performance Applications

The 75A polyurethane bushing option provides increased drivetrain rigidity while retaining some vibration isolation for performance-oriented street vehicles.

Autocross and Track Builds

Higher-durometer polyurethane bushings help maintain more consistent drivetrain positioning during aggressive acceleration, braking, and cornering.

Factory Engine Mount Replacement

An excellent performance-oriented alternative for replacing worn, cracked, or deteriorated original engine mounts.

Additional Information

• Manufacturer: Innovative Mounts
• Part Number: 11550
• Product Type: Steel Replacement Engine Mount Kit
• Mount Construction: Steel
• Bushing Material: Polyurethane
• Number of Engine Mounts: 3
• Mounting Positions: Driver Side / Passenger Side / Rear
• Primary Vehicle Application: 2011–2015 Honda CR-Z 1.5L Hybrid
• Chassis Compatibility: ZF1 / ZF
• Engine Compatibility: Honda LEA-Series 1.5L Hybrid
• Transmission Compatibility: 6-Speed Manual / CVT
• Installation Type: Direct Bolt-In Factory Replacement
• Hood Modification Required: No
• Manufacturer-Listed Kit Weight: Approximately 14 lbs
• Manufacturer Warranty: Lifetime Limited Warranty

Individual Mount Components:

• 11510: Driver-Side Mount

• 11520: Passenger-Side Mount

• 11530: Rear Engine Mount

Available Polyurethane Bushing Hardness Options:

• 75A – Black: Street and performance configuration offering increased drivetrain rigidity. Manufacturer-recommended for approximately 250–400 HP.

• 85A – Gray: Track and performance-oriented configuration designed to further reduce drivetrain movement. Manufacturer-recommended for approximately 400–500 HP.

• 95A – Red: Race-oriented configuration designed for maximum drivetrain control. Manufacturer-recommended for applications exceeding 500 HP.

Bushing Selection Note: Manufacturer horsepower recommendations are general selection guidelines rather than guaranteed capacity limits. The horsepower ratings are not specific to the factory CR-Z hybrid powertrain. Actual bushing selection should consider engine torque, vehicle use, drivetrain configuration, and acceptable vibration levels.

Common Reasons for Replacement

• Worn Factory Engine Mounts: Aging rubber and hydraulic mounting components can deteriorate, crack, leak, or separate, allowing excessive drivetrain movement.

• Excessive Engine Rocking: Unwanted drivetrain movement during acceleration and deceleration can negatively affect vehicle response.

• Engine Movement During Shifting: Firmer polyurethane bushings help maintain more consistent drivetrain positioning during manual gear changes.

• Wheel Hop During Acceleration: Reduced drivetrain movement can help minimize conditions that contribute to wheel hop.

• Modified LEA-Series Builds: Increased engine output places additional stress on factory mounting components.

• Broken or Damaged Mount Bushings: Replace deteriorated factory rubber mounts with durable polyurethane alternatives.

• Improved Drivetrain Response: Reduced mount deflection provides a more direct connection between engine output and vehicle movement.

• Coordinated Mount Replacement: Replacing all three primary mounts together helps eliminate unwanted movement caused by deteriorated factory components.

• Street and Track Performance: Improve drivetrain stability during demanding driving conditions.

• Long-Term Drivetrain Maintenance: Replace aging original engine mounts with a performance-oriented mounting system.

Installation Notes

1. Verify Vehicle Compatibility: Confirm that the vehicle is a compatible 2011–2015 Honda CR-Z equipped with the factory LEA-series 1.5L hybrid powertrain.

2. Confirm Chassis Configuration: Verify that the vehicle uses the supported first-generation CR-Z ZF mounting arrangement.

3. Verify Transmission Compatibility: Innovative Mounts 11550 is designed for compatible six-speed manual and CVT transmission applications.

4. Follow Hybrid Vehicle Safety Procedures: The Honda CR-Z contains high-voltage hybrid components. Follow the factory Honda service procedures before working near hybrid electrical systems.

5. Support the Engine and Transmission: Properly support the drivetrain before removing the factory engine mounts to prevent unexpected movement or damage.

6. Remove Existing Engine Mounts: Follow the appropriate Honda service procedures when removing the original driver-side, passenger-side, and rear mounting components.

7. Inspect Factory Mounting Locations: Check the chassis mounting points, engine brackets, transmission brackets, and surrounding components for damage or excessive wear.

8. Install the Driver-Side Mount: Position the Innovative Mounts 11510 assembly in the corresponding factory mounting location.

9. Install the Passenger-Side Mount: Position the Innovative Mounts 11520 assembly according to the manufacturer's instructions.

10. Install the Rear Engine Mount: Position the Innovative Mounts 11530 assembly in the factory rear mounting location.

11. Inspect Factory Hardware: Examine original mounting bolts and fasteners before reuse. Replace damaged or excessively worn hardware.

12. Align the Drivetrain: Ensure the engine and transmission are properly positioned before final tightening to prevent unnecessary bushing preload.

13. Torque Mounting Hardware: Tighten all fasteners according to the applicable Honda and Innovative Mounts specifications.

14. Verify Component Clearance: Inspect clearance around the engine, transmission, hybrid system components, exhaust system, intake components, and surrounding chassis structure before operating the vehicle.

15. Select the Appropriate Bushing Hardness: Choose the polyurethane durometer that best matches the vehicle's intended use and acceptable vibration.

16. Expect Increased Engine Vibration: Performance polyurethane mounts generally transmit more engine vibration into the chassis than factory rubber or hydraulic mounts. Higher-durometer bushings typically increase vibration further.

17. Inspect After Installation: Recheck mounting hardware, drivetrain alignment, and surrounding component clearances after the initial driving period.

18. Professional Installation Recommended: Installation by an experienced Honda technician familiar with hybrid vehicle safety procedures is strongly recommended.

19. Confirm Fitment Before Bolting Down: Innovative Mounts states that mounts showing installation bolt impressions cannot be returned or exchanged. Verify all mounting requirements before installation.

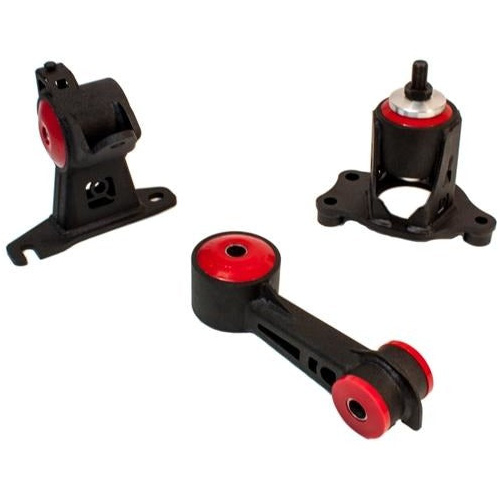

What's Included

• (1) Driver-Side Engine/Transmission Mount – Innovative Mounts 11510

• (1) Passenger-Side Engine Mount – Innovative Mounts 11520

• (1) Rear Engine Mount – Innovative Mounts 11530

• Polyurethane Bushings in the Selected Durometer

• Manufacturer-Supplied Mounting Components

Important: This product is a three-mount replacement engine mount kit designed for compatible first-generation Honda CR-Z LEA-series hybrid applications. It is not a K-Series engine swap kit.

Confirm the exact supplied hardware and components for the selected product configuration before installation.

Upgrade your Honda CR-Z drivetrain with the Innovative Mounts Steel Replacement Engine Mount Kit (11550), engineered for compatible 2011–2015 Honda CR-Z applications equipped with LEA-series 1.5L hybrid engines and factory manual or CVT transmissions.

Featuring durable steel construction, Innovative Mounts' no-tear polyurethane bushings, and multiple bushing hardness options, this complete three-mount replacement kit provides improved drivetrain stability, reduced engine movement, and more responsive power delivery.

Whether you're replacing worn factory engine mounts, upgrading your daily-driven six-speed Honda CR-Z, or building a modified hybrid performance vehicle, Innovative Mounts delivers the strength, durability, and drivetrain control enthusiasts demand.
