Product Details
| Part Number: | HYB-TRC-01-05 |
| Brand: | Hybrid Racing |
| Length: | 56.5 in |

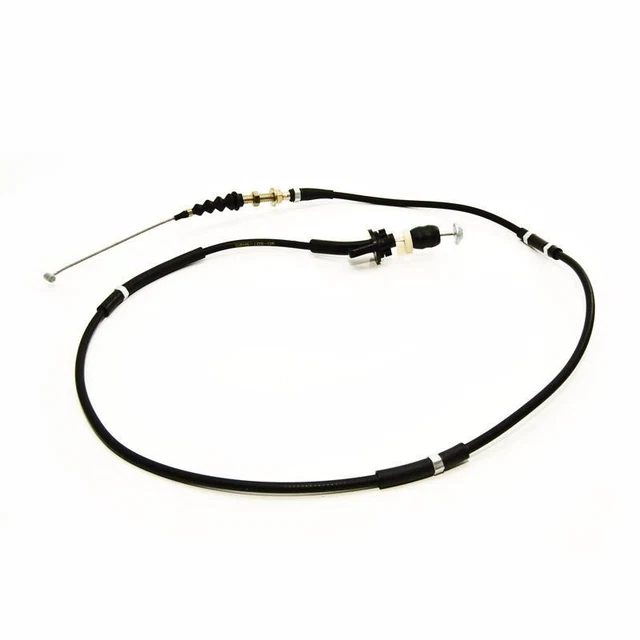

Complete your K-Series swap with the Hybrid Racing HYB-TRC-01-05 Long Throttle Cable. Designed to provide the proper cable length for 1996–2000 Honda Civic K-swaps, this replacement throttle cable offers a clean and straightforward way to connect the factory accelerator pedal assembly to a compatible cable-operated K-Series throttle body.
At approximately 56.5 inches long, the HYB-TRC-01-05 provides additional routing flexibility in swapped applications. It clips into the factory firewall location and is designed to work particularly well with Hybrid Racing's cable-operated K-Series throttle bodies. Hybrid Racing's current 75mm RBC throttle body documentation specifically identifies HYB-TRC-01-05 as its long cable option for K-swapped EG, EK, and DC2 chassis.
The cable can also serve as a replacement for the factory throttle cable on applicable 2002–2004 Acura RSX Type-S applications. Its OEM-style installation and additional length make it a practical solution for K-swapped street, track, and competition builds.
Features
- Genuine Hybrid Racing Long Throttle Cable
- Part Number: HYB-TRC-01-05
- Designed for K-Series engine swap applications
- Approximately 56.5 inches long
- Excellent choice for 1996–2000 Honda Civic EK K-swaps
- Compatible with K-swapped EG Civic and DC2 Integra configurations when properly routed
- Connects to the factory accelerator pedal assembly
- Clips into the factory firewall location
- Provides additional length for clean K-swap throttle cable routing
- Compatible with Hybrid Racing's current 75mm K-Series cable-operated throttle bodies
- Hybrid Racing identifies it as the "Long Cable" option for its throttle body configurations
- Works with the appropriate throttle cable position on Hybrid Racing's adjustable throttle rotor
- Can be used with the Hybrid Racing Cruise Control Delete setup on applicable EK K-swaps
- Also suitable as a replacement throttle cable for applicable 2002–2004 Acura RSX Type-S models
- Clean solution for eliminating poorly routed or improperly sized throttle cables
- Ideal for street, drag, autocross, and road-course K-Series builds
Common Applications
- 1996–2000 Honda Civic (EK) – K-Series Swap
- 1992–1995 Honda Civic (EG) – applicable K-Series swap configurations
- 1994–2001 Acura Integra (DC2) – applicable K-Series swap configurations
- 2002–2004 Acura RSX Type-S – replacement cable application
Specifications
- Manufacturer: Hybrid Racing
- Part Number: HYB-TRC-01-05
- Type: Mechanical Throttle Cable
- Configuration: Long
- Length: Approximately 56.5 inches
- Throttle Type: Drive-by-Cable
- OEM Reference: Honda 17910-S01-G03
Kit Includes
- 1 × Hybrid Racing Long Throttle Cable
Important Fitment Note:
- Throttle cable compatibility on a K-swap depends on the chassis, intake manifold, throttle body, throttle cable bracket, and cable routing. Hybrid Racing specifically documents HYB-TRC-01-05 for use with its cable-operated K-Series throttle bodies in K-swapped 1992–1995 Civic, 1996–2000 Civic, and 1994–2001 Integra applications. Fitment on RHD vehicles may vary.
- K Swap w/ OE K Series Throttle Body & Hybrid Racing Cruise Control Delete Bracket
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1992 | Honda | Civic | CX |
| 1992 | Honda | Civic | DX |
| 1992 | Honda | Civic | EX |
| 1992 | Honda | Civic | LX |
| 1992 | Honda | Civic | Si |
| 1992 | Honda | Civic | VX |
| 1993 | Honda | Civic del Sol | S |
| 1993 | Honda | Civic del Sol | Si |
| 1993 | Honda | Civic | CX |
| 1993 | Honda | Civic | DX |
| 1993 | Honda | Civic | EX |
| 1993 | Honda | Civic | LX |
| 1993 | Honda | Civic | Si |
| 1993 | Honda | Civic | VX |
| 1994 | Honda | Civic del Sol | S |
| 1994 | Honda | Civic del Sol | Si |
| 1994 | Honda | Civic del Sol | VTEC |
| 1994 | Honda | Civic | CX |
| 1994 | Honda | Civic | DX |
| 1994 | Honda | Civic | EX |
| 1994 | Honda | Civic | LX |
| 1994 | Honda | Civic | Si |
| 1994 | Honda | Civic | VX |
| 1995 | Honda | Civic del Sol | S |
| 1995 | Honda | Civic del Sol | Si |
| 1995 | Honda | Civic del Sol | VTEC |
| 1995 | Honda | Civic | CX |
| 1995 | Honda | Civic | DX |
| 1995 | Honda | Civic | EX |
| 1995 | Honda | Civic | LX |
| 1995 | Honda | Civic | Si |
| 1995 | Honda | Civic | VX |
| 1996 | Honda | Civic del Sol | S |
| 1996 | Honda | Civic del Sol | Si |
| 1996 | Honda | Civic del Sol | VTEC |
| 1996 | Honda | Civic | CX |
| 1996 | Honda | Civic | DX |
| 1996 | Honda | Civic | EX |
| 1996 | Honda | Civic | HX |
| 1996 | Honda | Civic | LX |
| 1997 | Honda | Civic del Sol | S |
| 1997 | Honda | Civic del Sol | Si |
| 1997 | Honda | Civic del Sol | VTEC |
| 1997 | Honda | Civic | CX |
| 1997 | Honda | Civic | DX |
| 1997 | Honda | Civic | EX |
| 1997 | Honda | Civic | HX |
| 1997 | Honda | Civic | LX |
| 1998 | Honda | Civic | CX |
| 1998 | Honda | Civic | DX |
| 1998 | Honda | Civic | EX |
| 1998 | Honda | Civic | GX |
| 1998 | Honda | Civic | HX |
| 1998 | Honda | Civic | LX |
| 1999 | Honda | Civic | CX |
| 1999 | Honda | Civic | DX |
| 1999 | Honda | Civic | EX |
| 1999 | Honda | Civic | GX |
| 1999 | Honda | Civic | HX |
| 1999 | Honda | Civic | LX |
| 1999 | Honda | Civic | Si |
| 1999 | Honda | Civic | Value Package |
| 2000 | Honda | Civic | CX |
| 2000 | Honda | Civic | DX |
| 2000 | Honda | Civic | EX |
| 2000 | Honda | Civic | GX |
| 2000 | Honda | Civic | HX |
| 2000 | Honda | Civic | LX |
| 2000 | Honda | Civic | Si |
| 2002 | Acura | RSX | Base |
| 2002 | Acura | RSX | Type-S |
| 2003 | Acura | RSX | Base |
| 2003 | Acura | RSX | Type-S |
| 2004 | Acura | RSX | Base |
| 2004 | Acura | RSX | Type-S |
