Product Details
| Part Number: | HYB-TBA-01-80 |
| Brand: | Hybrid Racing |
| Size: | 74mm |
Upgrade your K-Series intake setup with the Hybrid Racing HYB-TBA-01-80 PRB-to-ZDX Throttle Body Adapter. Designed to install an Acura ZDX drive-by-wire (DBW) throttle body onto an intake manifold with a PRB-style throttle body flange, this adapter provides a clean solution for combining a large OEM DBW throttle body with popular performance intake manifolds.
This adapter is especially useful for 2006–2011 and 2012–2015 Honda Civic Si builds using large-plenum aftermarket intake manifolds such as the Skunk2 Street intake manifold. These manifolds use a PRB-style drive-by-cable bolt pattern, which normally prevents direct installation of the larger ZDX drive-by-wire throttle body. The HYB-TBA-01-80 bridges the two patterns without requiring modification to the intake manifold.
Precision CNC-machined from aluminum and anodized for durability, the adapter features a 74mm internal diameter for smooth airflow between the throttle body and manifold. Hybrid Racing also includes both the ZDX and PRB thermal gaskets along with the necessary mounting hardware, providing a complete installation package.
Features
- Genuine Hybrid Racing PRB-to-ZDX Throttle Body Adapter
- Part Number: HYB-TBA-01-80
- Allows installation of an Acura ZDX throttle body onto a PRB-flange intake manifold
- Designed for drive-by-wire throttle body conversions
- 74mm internal diameter
- Compatible with intake manifolds featuring a large-bore PRB-style throttle body flange
- Excellent solution for using a ZDX DBW throttle body with Skunk2 Street-style intake manifolds
- Precision CNC-machined aluminum construction
- Durable anodized finish
- No intake manifold modification required for compatible applications
- Includes thermal insulating gaskets for both sides of the adapter
- Helps provide a clean transition between the throttle body and intake manifold
- Complete mounting hardware included
- Hybrid Racing states installation can be completed in less than 30 minutes in the intended configuration
- Ideal for K-Series street, naturally aspirated, turbocharged, and track builds
Common Applications
- 2006–2011 Honda Civic Si using a PRB-flange performance intake manifold
- 2012–2015 Honda Civic Si using a PRB-flange performance intake manifold
- K-Series swaps utilizing an Acura ZDX DBW throttle body and compatible PRB-style intake manifold
- Large-bore Skunk2 Street intake manifold applications with a PRB-style throttle body flange
Specifications
- Adapter Type: PRB Manifold to ZDX Throttle Body
- Throttle Body: Acura ZDX DBW
- Manifold Flange: PRB Style
- Inside Diameter: 74mm
- Material: CNC-Machined Aluminum
- Finish: Anodized

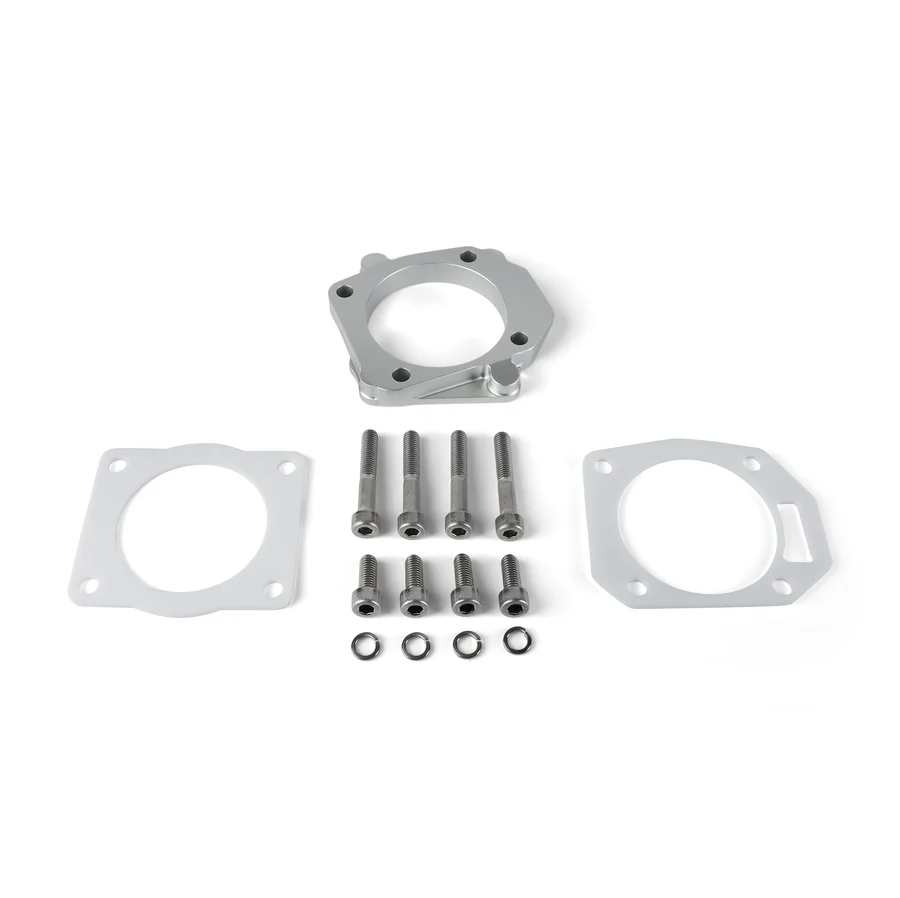

Kit Includes
- 1 × Hybrid Racing ZDX-to-PRB Throttle Body Adapter
- 1 × ZDX Thermal Gasket
- 1 × PRB Thermal Gasket
- Mounting Bolts and Washers
Important Fitment Note:
- HYB-TBA-01-80 is intended for a ZDX throttle body and PRB-style intake manifold flange. Hybrid Racing specifies that the adapter and supplied gaskets have a 74mm opening and require an Acura ZDX throttle body. Verify your intake manifold flange and throttle body configuration before ordering.
