Product Details
| Part Number: | HYB-SCA-01-34 |
| Brand: | Hybrid Racing |

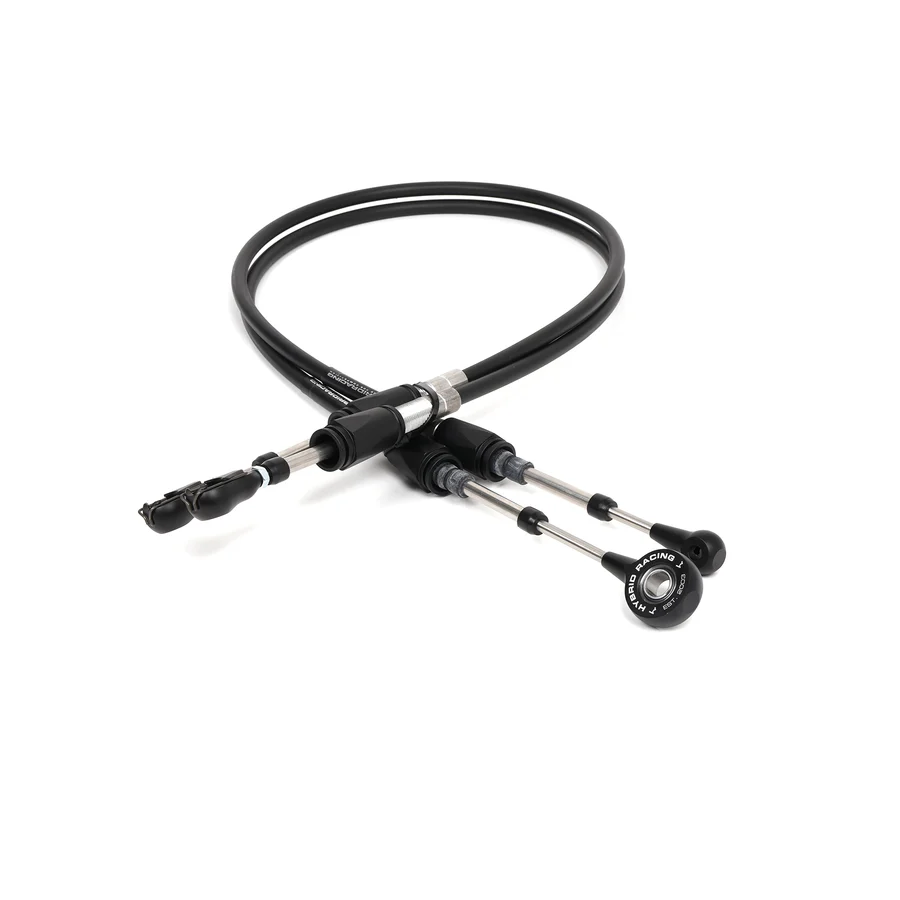

Complete your K20Z3-powered K-swap with the Hybrid Racing HYB-SCA-01-34 Performance Shifter Cable Set. Developed specifically for 1992–2000 Honda Civic, 1993–1997 Honda Del Sol, and 1994–2001 Acura Integra K-swaps, these cables provide the correct length and connections for use with a K20Z3 transmission and Hybrid Racing Z3 K-Swap shifter.
Unlike adapting factory 2006–2011 Civic Si cables, Hybrid Racing designed the HYB-SCA-01-34 specifically around the EG, EK, and DC chassis. The cables are shorter than OEM 8th-generation Civic Si cables, allowing a cleaner and more direct routing path between the shifter and transmission. This helps reduce internal cable resistance while improving shift feel and reliability.
Built for demanding street and motorsport use, these cables feature solid rod ends, spherical bearings, a 30% thicker cable core, stainless steel push rods, and stainless steel swivel support tubes. CNC-machined 6061 aluminum rod ends and mounting bushings further reduce unwanted flex, delivering a tighter and more connected feel during fast gear changes.
Features
- Genuine Hybrid Racing K20Z3 K-Swap Performance Shifter Cable Set
- Part Number: HYB-SCA-01-34
- Specifically engineered for K-Series engine swap applications
- Designed for EG, EK, and DC-series Honda/Acura chassis
- Compatible with the K20Z3 6-speed transmission
- Designed for use with the Hybrid Racing Z3 K-Swap Bolt-In Short Shifter (HYB-SAS-01-11)
- Uses the OEM K20Z3 transmission shifter cable bracket
- Shorter than factory 2006–2011 Civic Si shifter cables for cleaner routing
- 30% thicker cable core than the OEM-style design
- Solid rod ends reduce unwanted movement and compliance
- Spherical bearings provide precise cable articulation
- Stainless steel push rods for increased strength and durability
- Stainless steel swivel support tubes replace OEM-style plastic components
- CNC-machined 6061 aluminum rod ends and mounting bushings
- Aluminum components are anodized black and laser etched
- Provides a tighter, more direct and connected shift feel
- Helps improve reliability during aggressive shifting
- Made and assembled in the USA
- Excellent for street, drag, autocross, and road-course K-swapped vehicles
Vehicle Fitment
- 1992–1995 Honda Civic (EG) – K20Z3 transmission swap
- 1996–2000 Honda Civic (EK) – K20Z3 transmission swap
- 1993–1997 Honda Del Sol – K20Z3 transmission swap
- 1994–2001 Acura Integra (DC2/DC4) – K20Z3 transmission swap
Required Configuration
- K20Z3 transmission
- OEM K20Z3 transmission cable bracket
- Hybrid Racing Z3 K-Swap Bolt-In Short Shifter – HYB-SAS-01-11
- Hybrid Racing cannot confirm compatibility with aftermarket transmission cable brackets.
Kit Includes
- 2 × Hybrid Racing Z3 K-Swap Shifter Cables
- 2 × Cotter Pins
- 2 × Shifter Cable Spring Clips
- 1 × Bushing Insert for 2006 K20Z3 Transmission
- 1 × Bushing Insert for 2007–2011 K20Z3 Transmission
- 1 × Retaining Ring
- 1 × "M" Mounting Bracket
- 1 × Allen-Head Mounting Bolt
Installation Note:
- A complete cable installation requires four retaining clips, while the kit includes two. Two additional clips may therefore be required.
Fitment Note:
- HYB-SCA-01-34 is specifically designed for K-swapped EG/EK Civic, Del Sol, and DC Integra chassis using a K20Z3 transmission, OEM K20Z3 transmission bracket, and Hybrid Racing Z3 K-Swap shifter. It is not a universal replacement for standard OEM Honda shifter cables.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1992 | Honda | Civic | CX |
| 1992 | Honda | Civic | DX |
| 1992 | Honda | Civic | EX |
| 1992 | Honda | Civic | LX |
| 1992 | Honda | Civic | Si |
| 1992 | Honda | Civic | VX |
| 1993 | Honda | Civic del Sol | S |
| 1993 | Honda | Civic del Sol | Si |
| 1993 | Honda | Civic | CX |
| 1993 | Honda | Civic | DX |
| 1993 | Honda | Civic | EX |
| 1993 | Honda | Civic | LX |
| 1993 | Honda | Civic | Si |
| 1993 | Honda | Civic | VX |
| 1994 | Acura | Integra | GS-R |
| 1994 | Acura | Integra | LS |
| 1994 | Acura | Integra | RS |
| 1994 | Honda | Civic del Sol | S |
| 1994 | Honda | Civic del Sol | Si |
| 1994 | Honda | Civic del Sol | VTEC |
| 1994 | Honda | Civic | CX |
| 1994 | Honda | Civic | DX |
| 1994 | Honda | Civic | EX |
| 1994 | Honda | Civic | LX |
| 1994 | Honda | Civic | Si |
| 1994 | Honda | Civic | VX |
| 1995 | Acura | Integra | GS-R |
| 1995 | Acura | Integra | LS |
| 1995 | Acura | Integra | RS |
| 1995 | Acura | Integra | Special Edition |
| 1995 | Honda | Civic del Sol | S |
| 1995 | Honda | Civic del Sol | Si |
| 1995 | Honda | Civic del Sol | VTEC |
| 1995 | Honda | Civic | CX |
| 1995 | Honda | Civic | DX |
| 1995 | Honda | Civic | EX |
| 1995 | Honda | Civic | LX |
| 1995 | Honda | Civic | Si |
| 1995 | Honda | Civic | VX |
| 1996 | Acura | Integra | GS-R |
| 1996 | Acura | Integra | LS |
| 1996 | Acura | Integra | RS |
| 1996 | Acura | Integra | Special Edition |
| 1996 | Honda | Civic del Sol | S |
| 1996 | Honda | Civic del Sol | Si |
| 1996 | Honda | Civic del Sol | VTEC |
| 1996 | Honda | Civic | CX |
| 1996 | Honda | Civic | DX |
| 1996 | Honda | Civic | EX |
| 1996 | Honda | Civic | HX |
| 1996 | Honda | Civic | LX |
| 1997 | Acura | Integra | GS |
| 1997 | Acura | Integra | GS-R |
| 1997 | Acura | Integra | LS |
| 1997 | Acura | Integra | RS |
| 1997 | Acura | Integra | Type R |
| 1997 | Honda | Civic del Sol | S |
| 1997 | Honda | Civic del Sol | Si |
| 1997 | Honda | Civic del Sol | VTEC |
| 1997 | Honda | Civic | CX |
| 1997 | Honda | Civic | DX |
| 1997 | Honda | Civic | EX |
| 1997 | Honda | Civic | HX |
| 1997 | Honda | Civic | LX |
| 1998 | Acura | Integra | GS |
| 1998 | Acura | Integra | GS-R |
| 1998 | Acura | Integra | LS |
| 1998 | Acura | Integra | RS |
| 1998 | Acura | Integra | Type R |
| 1998 | Honda | Civic | CX |
| 1998 | Honda | Civic | DX |
| 1998 | Honda | Civic | EX |
| 1998 | Honda | Civic | GX |
| 1998 | Honda | Civic | HX |
| 1998 | Honda | Civic | LX |
| 1999 | Acura | Integra | GS |
| 1999 | Acura | Integra | GS-R |
| 1999 | Acura | Integra | LS |
| 1999 | Honda | Civic | CX |
| 1999 | Honda | Civic | DX |
| 1999 | Honda | Civic | EX |
| 1999 | Honda | Civic | GX |
| 1999 | Honda | Civic | HX |
| 1999 | Honda | Civic | LX |
| 1999 | Honda | Civic | Si |
| 1999 | Honda | Civic | Value Package |
| 2000 | Acura | Integra | GS |
| 2000 | Acura | Integra | GS-R |
| 2000 | Acura | Integra | LS |
| 2000 | Acura | Integra | Type R |
| 2000 | Honda | Civic | CX |
| 2000 | Honda | Civic | DX |
| 2000 | Honda | Civic | EX |
| 2000 | Honda | Civic | GX |
| 2000 | Honda | Civic | HX |
| 2000 | Honda | Civic | LX |
| 2000 | Honda | Civic | Si |
| 2001 | Acura | Integra | GS |
| 2001 | Acura | Integra | GS-R |
| 2001 | Acura | Integra | LS |
| 2001 | Acura | Integra | Type R |
Engine Fitment
Honda 2.0L/1998CC - 4 Cylinder (K20A3)
Honda 2.0L/1998CC - 4 Cylinder (K20A2)
Honda 2.0L/1998CC - 4 Cylinder (K20Z1)
Honda 2.0L/1998CC - 4 Cylinder (K20Z3)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A1)
Honda 2.4L/2354CC - 4 Cylinder (K24A8)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A4)
