Images may be for reference only
Product Details
| Part Number: | HYB-SCA-01-04 |
| Brand: | Hybrid Racing |
| Drivetrain: | AWD |

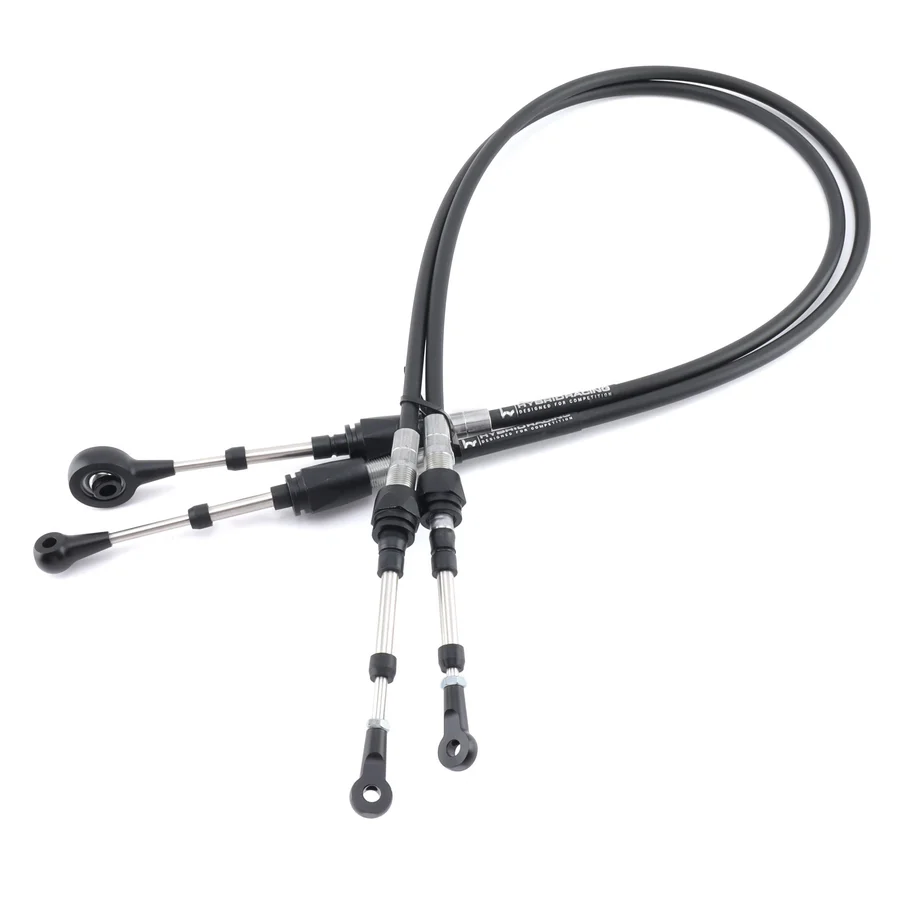

Upgrade your AWD B-Series drivetrain with the Hybrid Racing HYB-SCA-01-04 Performance Shifter Cables. Developed specifically for vehicles equipped with a Honda B-Series AWD transmission, these cables provide a firmer, more precise connection between the shifter and transmission, making them an excellent solution for AWD Honda conversions and high-performance builds.
Unlike factory-style cables that rely heavily on rubber and plastic components, Hybrid Racing uses solid rod ends, spherical bearings, stainless steel push rods, and CNC-machined 6061 aluminum end links and mounting bushings. These upgrades reduce unwanted movement and compliance in the shifting system, resulting in a tighter, more connected feel and more consistent gear engagement during aggressive driving.
The cables feature a stainless steel core and core guides, permanently lubricated internals, and a high-temperature wire-reinforced outer sleeve. They are rated for temperatures up to 225°F, making them suitable for demanding street, drag, track, and motorsport environments.
Features
- Genuine Hybrid Racing Performance Shifter Cable Set
- Part Number: HYB-SCA-01-04
- Designed specifically for Honda B-Series AWD transmissions
- Ideal for custom B-Series AWD Honda/Acura conversions
- Works with the Hybrid Racing TSX-style shifter
- Compatible with the OEM Honda/Acura TSX shifter
- Solid rod ends provide a more direct connection than OEM-style rubber components
- Spherical bearings improve precision and shift feel
- CNC-machined 6061 aluminum rod ends and mounting bushings
- Black anodized and laser-etched aluminum components
- Upgraded stainless steel push rods
- Stainless steel swivel support tubes replace failure-prone OEM-style plastic components
- Stainless steel cable core and core guides
- Permanently lubricated cable core for smooth operation
- High-temperature wire-reinforced outer sleeve
- Heat resistant up to 225°F
- Recommended maximum bend radius of 5 inches for optimum cable life
- Helps provide a firmer, tighter, and more connected shifting experience
- Designed to improve reliability during hard shifting and demanding motorsport use
- Compatibility Requirements
- Requires a Honda B-Series AWD transmission
- Must be used with an OEM Honda B-Series AWD transmission cable bracket
- Not compatible with aftermarket or modified transmission cable brackets
- Designed to work with the Hybrid Racing TSX Shifter or an OEM Honda/Acura TSX shifter
- Compatible Hybrid Racing short shifters include HYB-SAS-01-55 and HYB-SAS-01-56
- Compatible Hybrid Racing shifter mount: HYB-SMP-01-10
- These cables are not a direct replacement for conventional OEM B-Series FWD shifter cables
Kit Includes
- 2 × Hybrid Racing performance shifter cables
- 2 × cotter pins
- Transmission-end retaining clips
- New mounting hardware for attaching the cable plates to the transmission bracket
Fitment Note:
- HYB-SCA-01-04 is intended for vehicles using a Honda B-Series AWD transmission and the required OEM AWD cable bracket. Because AWD conversions can vary considerably in chassis, transmission, shifter placement, and fabrication, verify your complete drivetrain and shifter configuration before ordering.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim | Notes |
|---|---|---|---|---|
| 1988 | Honda | Prelude | 2.0 Si | AWD |
| 1988 | Honda | Prelude | 2.0 Si 4WS | AWD |
| 1989 | Honda | Prelude | 2.0 Si | AWD |
| 1989 | Honda | Prelude | 2.0 Si 4WS | AWD |
| 1990 | Acura | Integra | GS | AWD |
| 1990 | Acura | Integra | LS | AWD |
| 1990 | Acura | Integra | RS | AWD |
| 1990 | Honda | Prelude | 2.0 Si | AWD |
| 1991 | Acura | Integra | GS | AWD |
| 1991 | Acura | Integra | LS | AWD |
| 1991 | Acura | Integra | RS | AWD |
| 1991 | Honda | Prelude | 2.0 Si | AWD |
| 1992 | Acura | Integra | GS | AWD |
| 1992 | Acura | Integra | GS-R | AWD |
| 1992 | Acura | Integra | LS | AWD |
| 1992 | Acura | Integra | RS | AWD |
| 1993 | Acura | Integra | GS | AWD |
| 1993 | Acura | Integra | GS-R | AWD |
| 1993 | Acura | Integra | LS | AWD |
| 1993 | Acura | Integra | RS | AWD |
| 1994 | Acura | Integra | GS-R | AWD |
| 1994 | Acura | Integra | LS | AWD |
| 1994 | Acura | Integra | RS | AWD |
| 1994 | Honda | Civic del Sol | VTEC | AWD |
| 1995 | Acura | Integra | GS-R | AWD |
| 1995 | Acura | Integra | LS | AWD |
| 1995 | Acura | Integra | RS | AWD |
| 1995 | Acura | Integra | Special Edition | AWD |
| 1995 | Honda | Civic del Sol | VTEC | AWD |
| 1996 | Acura | Integra | GS-R | AWD |
| 1996 | Acura | Integra | LS | AWD |
| 1996 | Acura | Integra | RS | AWD |
| 1996 | Acura | Integra | Special Edition | AWD |
| 1996 | Honda | Civic del Sol | VTEC | AWD |
| 1997 | Acura | Integra | GS | AWD |
| 1997 | Acura | Integra | GS-R | AWD |
| 1997 | Acura | Integra | LS | AWD |
| 1997 | Acura | Integra | RS | AWD |
| 1997 | Acura | Integra | Type R | AWD |
| 1997 | Honda | CR-V | LX | AWD |
| 1997 | Honda | Civic del Sol | VTEC | AWD |
| 1998 | Acura | Integra | GS | AWD |
| 1998 | Acura | Integra | GS-R | AWD |
| 1998 | Acura | Integra | LS | AWD |
| 1998 | Acura | Integra | RS | AWD |
| 1998 | Acura | Integra | Type R | AWD |
| 1998 | Honda | CR-V | EX | AWD |
| 1998 | Honda | CR-V | LX | AWD |
| 1999 | Acura | Integra | GS | AWD |
| 1999 | Acura | Integra | GS-R | AWD |
| 1999 | Acura | Integra | LS | AWD |
| 1999 | Honda | CR-V | EX | AWD |
| 1999 | Honda | CR-V | LX | AWD |
| 1999 | Honda | Civic | Si | AWD |
| 2000 | Acura | Integra | GS | AWD |
| 2000 | Acura | Integra | GS-R | AWD |
| 2000 | Acura | Integra | LS | AWD |
| 2000 | Acura | Integra | Type R | AWD |
| 2000 | Honda | CR-V | EX | AWD |
| 2000 | Honda | CR-V | LX | AWD |
| 2000 | Honda | CR-V | SE | AWD |
| 2000 | Honda | Civic | Si | AWD |
| 2001 | Acura | Integra | GS | AWD |
| 2001 | Acura | Integra | GS-R | AWD |
| 2001 | Acura | Integra | LS | AWD |
| 2001 | Acura | Integra | Type R | AWD |
| 2001 | Honda | CR-V | EX | AWD |
| 2001 | Honda | CR-V | LX | AWD |
| 2001 | Honda | CR-V | SE | AWD |
