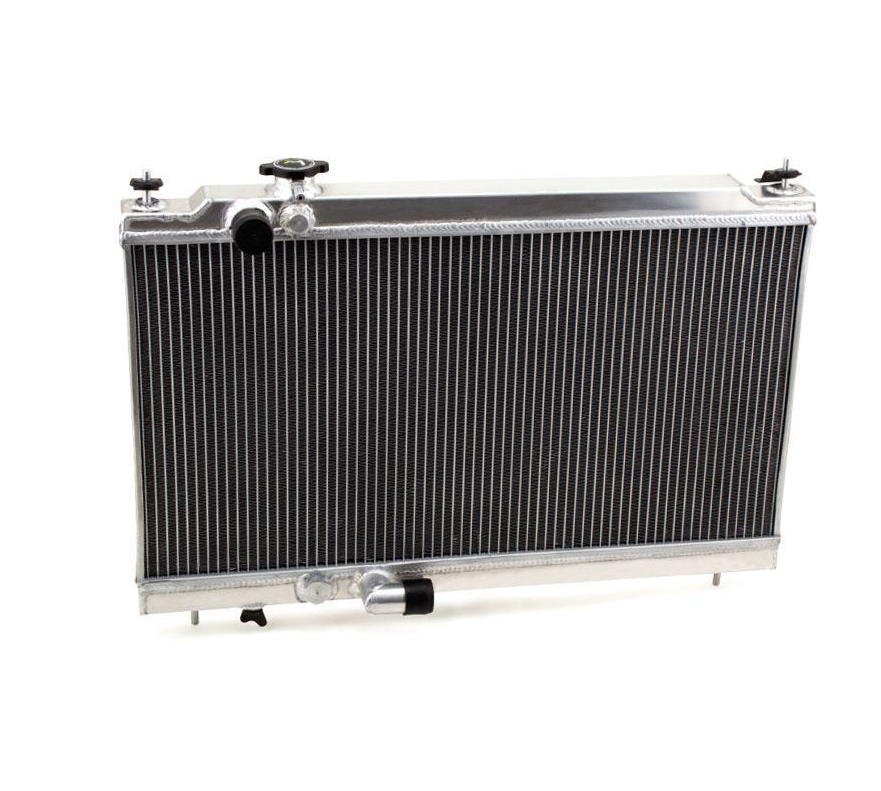

Hybrid Racing 94-01 Integra K Swap Full Size Radiator
Part Number: HYB-RAD-01-07

Images may be for reference only

Product Details

Part Number:	HYB-RAD-01-07
Brand:	Hybrid Racing

Each K-Series swap radiator was carefully designed by Hybrid Racing to take into account both the chassis' dimensions and mounting points, as well as the K-Series' motor's coolant inlet and outlet. These radiators simplify the K-Series engine swap by eliminating the need for custom mounting brackets and by providing a guaranteed fit for your specific swap.

All Hybrid Racing radiators feature dual core, all-aluminum construction with high-precision TIG welds. This radiator integrates the necessary ports for the Coolant Temperature Sending Unit and the Fan Switch, eliminating the need for special adapters and inserts.

Bolt in K-Swap Radiator for your Integra!
Integrated bungs to mount coolant temperature sending unit and fan switch.
Hybrid Racing Radiator cap included.
Dual Core Construction.

How is this radiator better than the OEM radiator?

This question has several answers. First, this Hybrid Racing full-size K-Swap radiator features all aluminum, and fully tig welded construction. As a result, it's less likely to leak or crack like the OEM unit which uses an aluminum core and plastic end tanks. Second, the coolant ports on all Hybrid Racing K swap radiators are relocated to allow the use of shorter coolant hoses when used in conjunction with a K series motor.

Do I have to modify my chassis to make this radiator fit?

No. This radiator is a complete bolt-on part. It mounts to the factory lower support tabs. We recommend using two high speed ten-inch cooling fans.

Is this radiator compatible with the Hybrid Racing AC kit for my chassis?

YES! This unit is compatible with the Hybrid Racing conversion AC kit!

Dimensions

Core: 26.8" x 13.75" x 2"
Inlet / Outlet: 1.25"

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Year	Make	Model	Trim
1994	Acura	Integra	GS-R
1994	Acura	Integra	LS
1994	Acura	Integra	RS
1995	Acura	Integra	GS-R
1995	Acura	Integra	LS
1995	Acura	Integra	RS
1995	Acura	Integra	Special Edition
1996	Acura	Integra	GS-R
1996	Acura	Integra	LS
1996	Acura	Integra	RS
1996	Acura	Integra	Special Edition
1997	Acura	Integra	GS
1997	Acura	Integra	GS-R
1997	Acura	Integra	LS
1997	Acura	Integra	RS
1997	Acura	Integra	Type R
1998	Acura	Integra	GS
1998	Acura	Integra	GS-R
1998	Acura	Integra	LS
1998	Acura	Integra	RS
1998	Acura	Integra	Type R
1999	Acura	Integra	GS
1999	Acura	Integra	GS-R
1999	Acura	Integra	LS
2000	Acura	Integra	GS
2000	Acura	Integra	GS-R
2000	Acura	Integra	LS
2000	Acura	Integra	Type R
2001	Acura	Integra	GS
2001	Acura	Integra	GS-R
2001	Acura	Integra	LS
2001	Acura	Integra	Type R
