Product Details
| Part Number: | HYB-FRL-01-17 |
| Brand: | Hybrid Racing |
| Color: | Red |

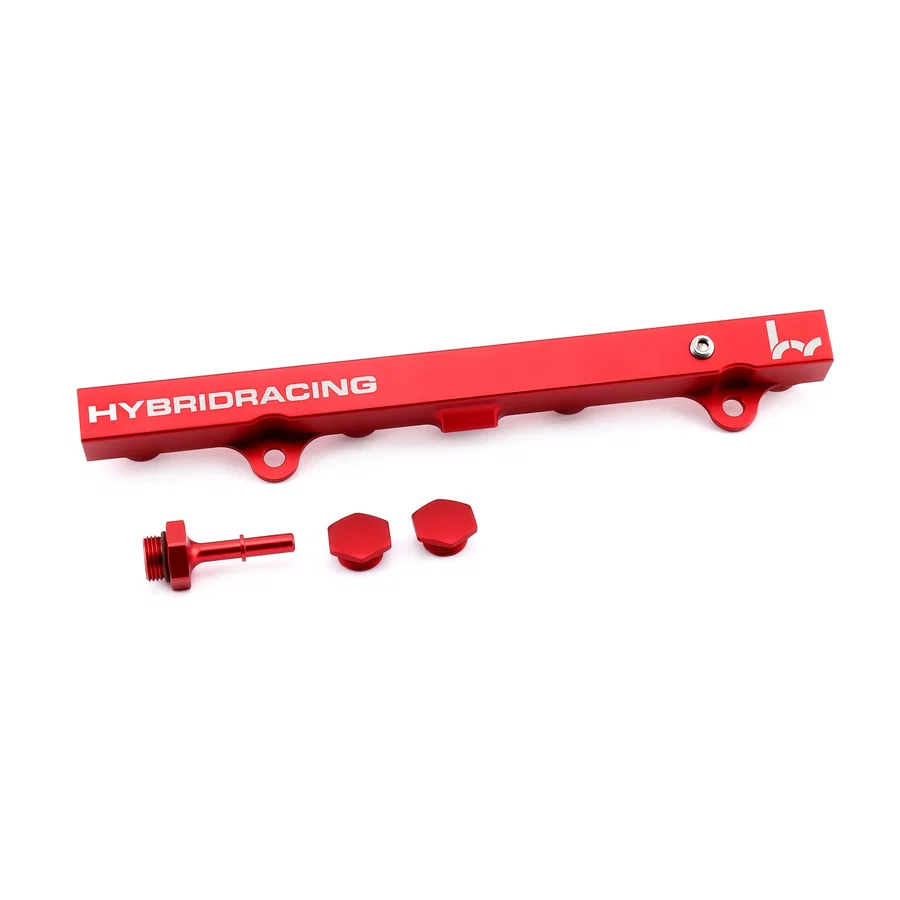

Upgrade your K-Series fuel system with the Hybrid Racing HYB-FRL-01-17 Fuel Rail & Fittings Kit. Designed for popular Honda and Acura K-Series applications, this high-quality fuel rail combines increased fuel-system flexibility with a clean Dust Red anodized finish, making it an excellent choice for both performance and show-oriented engine bays.
Manufactured from 6061 aluminum with T6 heat treatment, the Hybrid Racing fuel rail is built for strength, durability, and reliable fuel delivery. Multiple -8 ORB ports allow the fuel system to be configured for -6AN or -8AN plumbing, while the included plugs give builders the option to route the fuel line through the centrally located port for a cleaner, tucked installation.
A dedicated 1/8" NPT port allows a fuel pressure gauge to be mounted directly to the rail for easy pressure monitoring. The rail is also E85 compatible and has been verified with PRB, RBC, and RBB intake manifolds, making it a versatile upgrade for naturally aspirated, turbocharged, supercharged, and K-swapped applications.
Features
- Genuine Hybrid Racing K-Series Fuel Rail
- Part Number: HYB-FRL-01-17
- Attractive Dust Red anodized finish
- Manufactured from 6061 aluminum
- T6 heat-treated for strength and durability
- Laser-etched Hybrid Racing logo
- Bolt-on design for compatible Honda/Acura K-Series applications
- Multiple -8 ORB inlet/outlet ports
- Supports configurations using -6AN or -8AN fuel lines
- Centrally located -8 ORB port provides additional fuel-line routing options
- Center port can allow fuel plumbing to pass between the middle intake runners on compatible manifolds
- Excellent for tucked fuel-line installations
- Integrated 1/8" NPT port for mounting a fuel pressure gauge
- Compatible with PRB, RBC, and RBB intake manifolds
- Compatible with aftermarket manifolds using the same fuel rail mounting points
- E85 compatible
- Suitable for naturally aspirated and forced-induction K-Series builds
- Great for street, drag, autocross, road racing, and show applications
Vehicle Fitment
- 2001–2005 Honda Civic Si
- 2002–2006 Acura RSX
- 2012–2015 Honda Civic Si
Intake Manifold Compatibility
- PRB Intake Manifold
- RBC Intake Manifold
- RBB Intake Manifold
- Compatible aftermarket intake manifolds using the same fuel rail mounting locations
Kit Includes
- 1 × Hybrid Racing K-Series Fuel Rail – Dust Red
- 1 × Push-On EFI Fitting
- 2 × -8 ORB Plugs
- 1 × 1/8" NPT Plug
Fitment Note:
- HYB-FRL-01-17 is the Dust Red version of Hybrid Racing's K-Series fuel rail; HYB-FRL-01-16 is the corresponding black version. Fuel-line routing and fitting requirements will vary depending on your fuel system, intake manifold, regulator, and injector configuration.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2002 | Acura | RSX | Base |
| 2002 | Acura | RSX | Type-S |
| 2002 | Honda | Civic | Si |
| 2003 | Acura | RSX | Base |
| 2003 | Acura | RSX | Type-S |
| 2003 | Honda | Civic | Si |
| 2004 | Acura | RSX | Base |
| 2004 | Acura | RSX | Type-S |
| 2004 | Honda | Civic | Si |
| 2005 | Acura | RSX | Base |
| 2005 | Acura | RSX | Type-S |
| 2005 | Honda | Civic | Si |
| 2006 | Acura | RSX | Base |
| 2006 | Acura | RSX | Type-S |
| 2012 | Honda | Civic | Si |
| 2013 | Honda | Civic | Si |
| 2014 | Honda | Civic | Si |
| 2015 | Honda | Civic | Si |
