Product Details
| Part Number: | HYB-FIT-00-75 |
| Brand: | Hybrid Racing |
| Color: | Black |
| Thread Pitch: | M12 x 1.0 |
| Size: | -8AN |

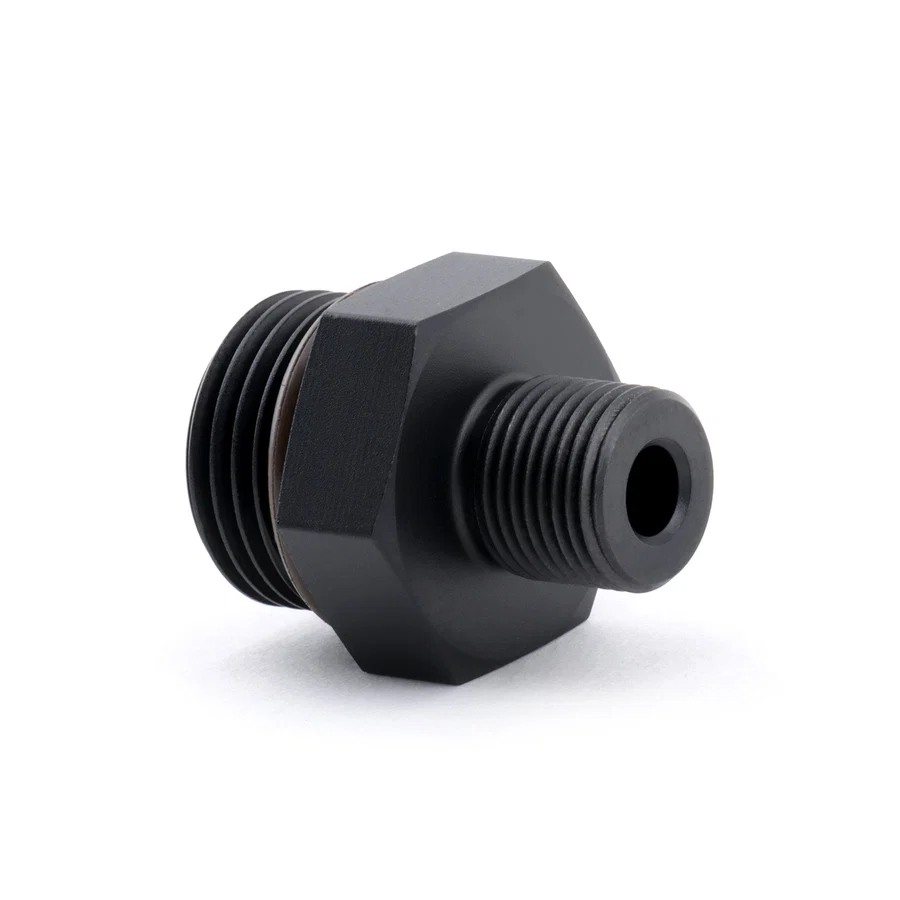

Add an OEM Honda fuel pressure damper to an aftermarket fuel rail with the Hybrid Racing HYB-FIT-00-75 Fuel Pressure Damper Adapter Fitting. This compact adapter provides a straightforward solution for performance fuel systems that use a fuel rail equipped with a -8 ORB port, allowing compatible Honda B-Series or K-Series fuel pressure dampers to be retained.
A fuel pressure damper helps stabilize fuel pressure by smoothing the pressure pulses created as the fuel injectors rapidly open and close. Retaining an OEM-style damper can help provide more consistent fuel delivery in modified Honda and Acura fuel systems.
The HYB-FIT-00-75 features a black anodized finish, an E85-safe O-ring, and a hex-shaped body that makes installation and removal easier with standard tools. Its universal design allows it to work with any aftermarket fuel rail featuring a compatible -8 ORB port, provided sufficient clearance is available around the fitting and damper.
Features
- Genuine Hybrid Racing Fuel Pressure Damper Adapter Fitting
- Part Number: HYB-FIT-00-75
- Allows an OEM Honda fuel pressure damper to be installed on an aftermarket fuel rail
- Compatible with fuel rails featuring a -8 ORB port
- M12x1.0mm thread on the non-O-ring/damper side
- -8 ORB fuel rail connection
- Includes an E85-safe O-ring
- Suitable for gasoline and compatible ethanol-fuel applications
- Black anodized finish
- Hex-shaped body allows easy installation with standard tools
- Helps retain the functionality of the factory-style fuel pressure damper
- Fuel pressure damper helps smooth pressure fluctuations caused by injector operation
- Compatible with select Honda B-Series and K-Series OEM dampers
- Universal design works with many aftermarket fuel rails
- Compact solution for modified and performance fuel systems
- Excellent for street, naturally aspirated, turbocharged, supercharged, and competition Honda/Acura builds
Specifications
- Manufacturer: Hybrid Racing
- Part Number: HYB-FIT-00-75
- Product Type: Fuel Pressure Damper Adapter
- Fuel Rail Connection: -8 ORB
- Damper-Side Thread: M12x1.0mm
- Finish: Black Anodized
- O-Ring: E85 Safe
- Fitment: Universal
- Compatible OEM Honda Fuel Pressure Dampers
Hybrid Racing lists HYB-FIT-00-75 for use with:
- 16680-PZA-L01 – K-Series Fuel Pressure Damper
- 16680-PCX-003 – B-Series Fuel Pressure Damper
- 16705-PD1-003 – OEM Damper Crush Washer (required)
Kit Includes
- 1 × Hybrid Racing Fuel Pressure Damper Adapter Fitting
- 1 × E85-Safe O-Ring
Important Fitment Note:
- HYB-FIT-00-75 is a universal adapter rather than a vehicle-specific fitting. It can be used with any suitable aftermarket fuel rail featuring a -8 ORB port, provided there is enough physical clearance for the adapter and OEM fuel pressure damper. The OEM Honda damper and required crush washer are not included unless otherwise specified by the seller.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
