Product Details
| Part Number: | HYB-BUN-01-TB1 |
| Brand: | Hybrid Racing |
| Color: | Black |
| Size: | 75mm |

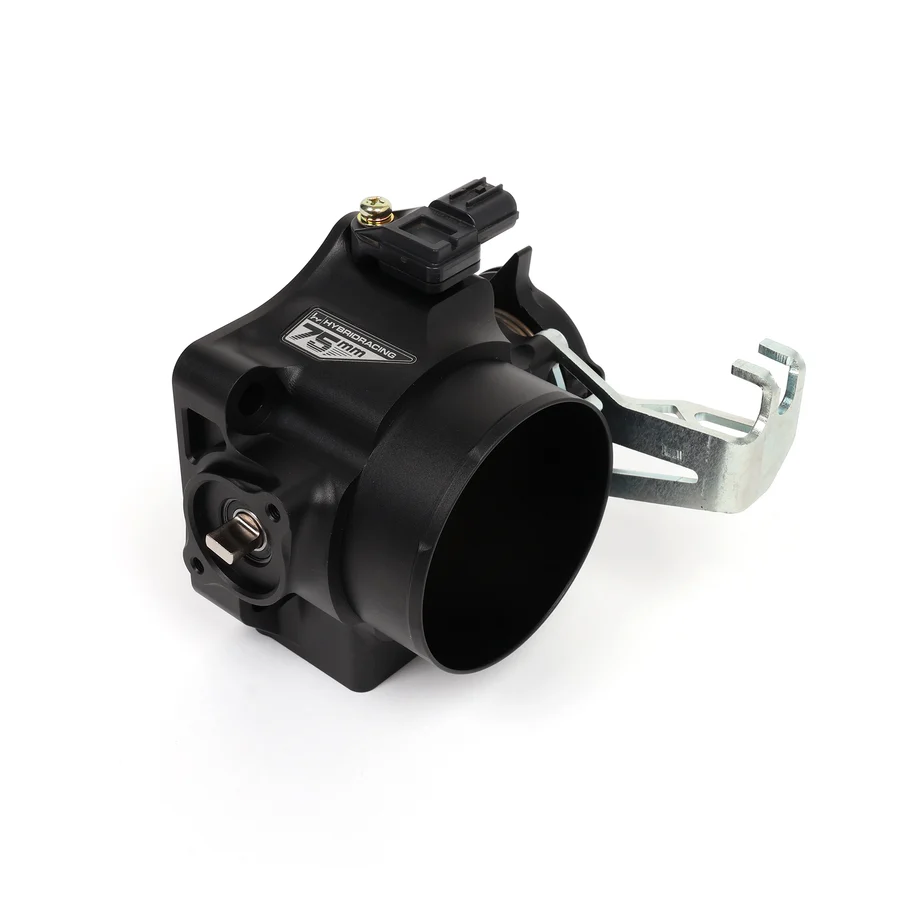

Upgrade airflow on your K-Series setup with the Hybrid Racing HYB-BUN-01-TB1 75mm K-Series Throttle Body Bundle. This package combines Hybrid Racing's high-flow 75mm drive-by-cable throttle body with the MAP sensor plug option, making it a convenient solution for builds where the throttle body's MAP sensor port will not be used.
Designed for RBC, RRB, RRC, and RBB intake manifold bolt patterns, the throttle body is machined from 6061-T6 aluminum and engineered for performance K-Series street, swap, and motorsport applications. Its 75mm bore supports increased airflow while retaining a compact design that works with standard 3-inch intake couplers.
Hybrid Racing incorporates several durability and drivability features, including double-sealed roller bearings, dual stainless steel throttle return springs, staked butterfly bolts, and an included thermal insulating gasket. The throttle rotor also provides three cable mounting positions, giving additional flexibility when setting up throttle cables in popular K-swapped chassis.
Features
- Genuine Hybrid Racing 75mm K-Series Throttle Body Bundle
- Part Number: HYB-BUN-01-TB1
- Bundle includes the MAP sensor port plug option
- Large 75mm throttle bore for increased airflow
- Designed for drive-by-cable applications
- Direct bolt pattern compatibility with RBC, RRB, RRC, and RBB intake manifolds
- Precision-machined 6061-T6 aluminum construction
- Compatible with standard 3-inch intake couplers
- Three-position throttle cable rotor provides additional installation flexibility
- Designed for popular K-swapped EG, EK, DC2, RSX, and EP3 applications
- OEM-inspired TPS positioning helps maintain proper sensor calibration
- Rotated IACV port improves radiator and wiring-harness clearance
- Double-sealed roller bearings provide smooth throttle operation
- Dual stainless steel throttle return springs
- Staked butterfly bolts help prevent hardware from loosening
- Includes a custom-fit thermal insulating gasket to reduce heat transfer from the intake manifold
- Zinc-plated high-strength steel throttle cable bracket
- Suitable for both naturally aspirated and forced-induction K-Series builds
- Excellent for street, drag, autocross, and road-course applications
Intake Manifold Compatibility
- Honda RBC
- Honda RRB
- Honda RRC
- Honda RBB
Bundle Configuration
- HYB-BUN-01-TB1 is the 75mm throttle body + MAP plug configuration. Hybrid Racing's related bundle options include an IACV plug version and a version containing both MAP and IACV plugs.
Important Fitment Note:
- This throttle body is intended for drive-by-cable applications and is not a replacement for a factory drive-by-wire throttle body. When installed on an RRC intake manifold, the manifold's idle-air passage requires an appropriate block-off solution because idle control is not provided through that manifold configuration. MAP sensor, IACV, and intake manifold shown in some product images are not included unless specifically stated as part of the bundle.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2002 | Acura | RSX | Base |
| 2002 | Acura | RSX | Type-S |
| 2002 | Honda | Civic | Si |
| 2003 | Acura | RSX | Base |
| 2003 | Acura | RSX | Type-S |
| 2003 | Honda | Civic | Si |
| 2004 | Acura | RSX | Base |
| 2004 | Acura | RSX | Type-S |
| 2004 | Honda | Civic | Si |
| 2005 | Acura | RSX | Base |
| 2005 | Acura | RSX | Type-S |
| 2005 | Honda | Civic | Si |
| 2006 | Acura | RSX | Base |
| 2006 | Acura | RSX | Type-S |
