Product Details
| Part Number: | HYB-BUN-01-B2 |
| Brand: | Hybrid Racing |
| Color: | Black |

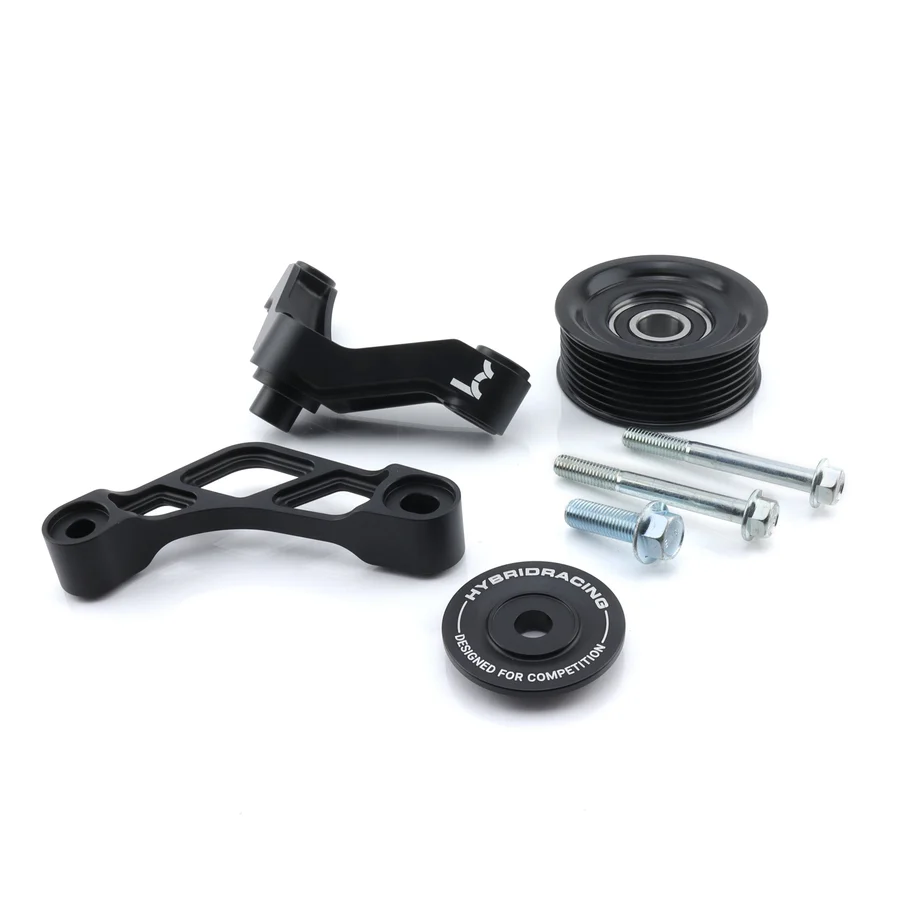

Simplify the accessory drive on your JDM K24A swap with the Hybrid Racing HYB-BUN-01-B2 Idler Bracket, Pulley & Belt Combo. Designed specifically for the popular JDM K24A engine, this kit replaces the factory hydraulic power steering pump while retaining the OEM automatic belt tensioner and alternator for reliable, properly controlled serpentine belt tension.
Hybrid Racing developed its K24A-specific idler system to solve common power-steering-delete issues such as poor belt alignment, excessive tension, belt slip, and limited hood clearance. Rather than relying on an adjustable alternator or improvised tensioning setup, the system keeps the factory automatic tensioner functioning as Honda intended.
The HYB-BUN-01-B2 configuration is specifically intended for JDM K24A engines equipped with a 6.50-inch (165mm) crank pulley. It uses Hybrid Racing's K24A-specific HYB-IDB-01-04 idler bracket and the appropriate HYB-BLT-00-03 51.2-inch belt for a power-steering and A/C-delete configuration.
Features
- Genuine Hybrid Racing K24A Idler Bracket, Pulley & Belt Combo
- Part Number: HYB-BUN-01-B2
- Designed specifically for the JDM K24A engine
- Intended for engines with a 6.50" / 165mm crank pulley
- Replaces the factory hydraulic power steering pump
- Designed for power steering and A/C delete configurations
- Retains the OEM automatic belt tensioner
- Retains the factory alternator mounting location
- Helps maintain the serpentine belt within the proper tension range
- Reduces the risk of excessive belt tension, belt slip, or belt walking
- K24A-specific spacer/bracket design
- Improves hood clearance by approximately 1.81 inches compared with the factory K24A power steering pump
- Purpose-built solution for popular JDM K24A engine swaps
- Includes the properly sized serpentine belt for the specified configuration
- Ideal for K-swapped Civic, Integra, and other Honda/Acura chassis using a compatible JDM K24A engine
For the HYB-IDB-01-04 JDM K24A idler bracket, Hybrid Racing specifies:
- 6.25" crank pulley: HYB-BLT-00-02 – 50.5"
- 6.50" crank pulley: HYB-BLT-00-03 – 51.2"
Therefore, HYB-BUN-01-B2 is the bundle intended for the 6.50-inch crank pulley configuration.
Kit Includes
- Hybrid Racing HYB-IDB-01-04 K24A-specific idler bracket
- Idler pulley and associated mounting components
- Hybrid Racing HYB-BLT-00-03 serpentine belt
- K24A-specific spacer/bracket components
- Applicable installation hardware
Engine Compatibility
- JDM Honda K24A
- Commonly used imported K24A engines for Honda/Acura K-Series swaps
- This particular bracket system was developed specifically for the JDM K24A because its accessory/water-pump-housing configuration differs from many North American K20 and K24 engines.
Important Fitment Note:
- HYB-BUN-01-B2 is specifically for a JDM K24A with a 6.50" (165mm) crank pulley in a power-steering and A/C-delete configuration.
- Measure the outside diameter of your crank pulley before ordering.
- Hybrid Racing uses a different bracket and belt combination for many K20A/A2/A3/Z1/Z3/Z4 and K24A1/A2/A4/A8 engines.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
