Product Details
| Part Number: | HYB-BUN-01-A2 |
| Brand: | Hybrid Racing |
| Color: | Black |
Simplify your K-Series accessory drive with the Hybrid Racing HYB-BUN-01-A2 Idler Bracket, Pulley & Belt Combo. Designed for Honda and Acura K-Series engines with the factory hydraulic power steering pump removed, this kit replaces the power steering pump with a properly positioned idler pulley while retaining the OEM automatic belt tensioner and alternator.
The HYB-BUN-01-A2 configuration is specifically designed for engines equipped with a 6.25-inch (159mm) crank pulley. It pairs Hybrid Racing's common K-Series HYB-IDB-01-02 idler bracket with the HYB-BLT-00-03 51.2-inch (7PK1300/512K7) serpentine belt for applications deleting both power steering and A/C.
Unlike accessory-delete setups that rely on manually repositioning the alternator to establish belt tension, Hybrid Racing's design retains Honda's factory automatic tensioning system. This helps keep the belt within the proper operating tension range, reducing the risk of belt slip, belt walking, charging issues, and excessive accessory wear. The compact idler arrangement also provides more than 1.5 inches of additional hood clearance compared with the stock power steering pulley.
Features
- Genuine Hybrid Racing K-Series Idler Bracket, Pulley & Belt Combo
- Part Number: HYB-BUN-01-A2
- Designed for a 6.25" / 159mm crank pulley
- Includes the correct 51.2" serpentine belt
- Belt specification: 7PK1300 / 512K7
- Replaces the factory hydraulic power steering pump
- Configured for power steering and A/C delete applications
- Retains the OEM automatic belt tensioner
- Retains the factory alternator position
- Maintains proper OEM-style automatic belt tensioning
- Helps reduce the risk of belt slip or belt walking
- Helps prevent excessive accessory wear caused by an overtightened belt
- Provides more than 1.5" of additional hood clearance compared with the factory power steering pulley
- Approximately 0.5" shorter than the OEM EP3 idler bracket and pulley
- Requires no modification to the water pump housing or other accessory components on compatible engines
- Excellent solution for K-swapped Civic, Integra, and other Honda/Acura chassis
Hybrid Racing lists the HYB-IDB-01-02 system used in this bundle for:
- K20A
- K20A2
- K20A3
- K20Z1
- K20Z3
- K20Z4
- K24A1
- K24A2
- K24A4
- K24A8
This configuration is not listed for the K24Z3. The common imported JDM K24A uses Hybrid Racing's separate HYB-IDB-01-04 bracket configuration.
Specifications
- Manufacturer: Hybrid Racing
- Part Number: HYB-BUN-01-A2
- Product Type: Idler Bracket, Pulley & Belt Combo
- Crank Pulley Diameter: 6.25" / 159mm
- Belt Length: 51.2"
- Belt Size: 7PK1300 / 512K7
- Power Steering: Deleted
- A/C: Deleted
- Tensioning: Retains OEM automatic tensioner

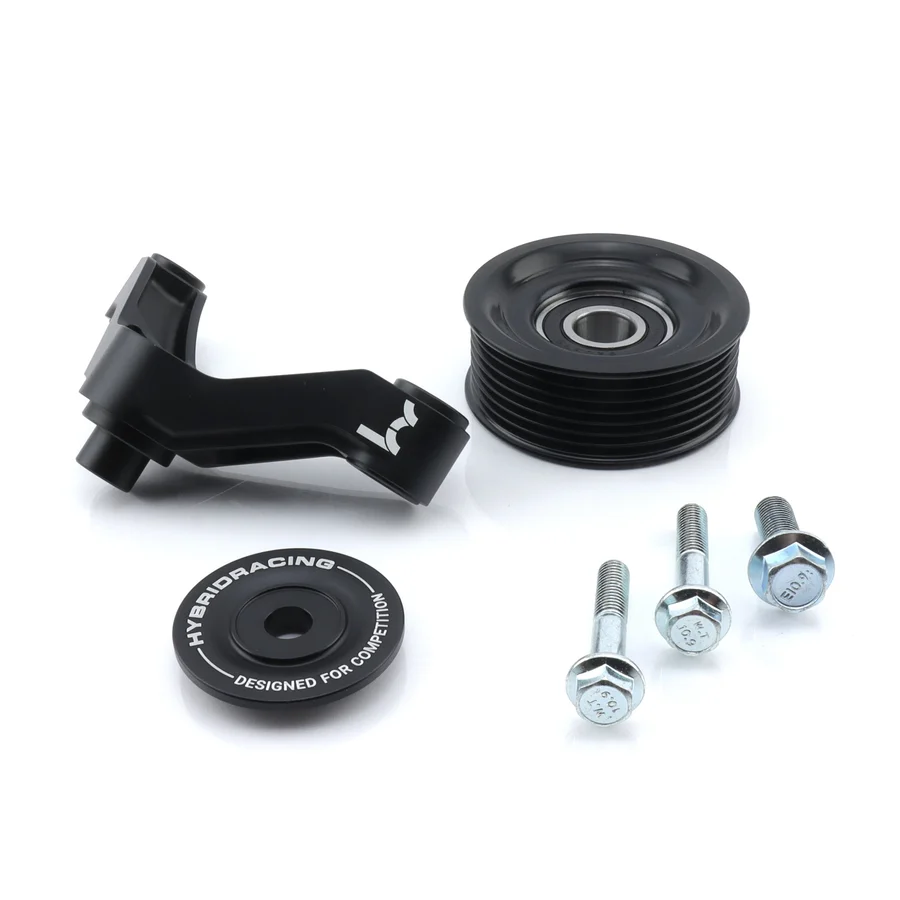

Kit Includes
- Hybrid Racing HYB-IDB-01-02 K-Series Idler Bracket
- Idler pulley
- Applicable mounting hardware
- Hybrid Racing HYB-BLT-00-03 51.2" 7-rib serpentine belt
For the HYB-IDB-01-02 system with power steering and A/C deleted, belt selection is based on crank pulley diameter:
- HYB-BUN-01-A1: 5.8" crank pulley / 50.0" belt
- HYB-BUN-01-A2: 6.25" crank pulley / 51.2" belt
- HYB-BUN-01-A3: 6.50" crank pulley / 52.0" belt
Important Fitment Note:
- HYB-BUN-01-A2 is specifically configured for a 6.25-inch (159mm) crank pulley with both hydraulic power steering and A/C deleted.
- Crank pulley size should be measured at the outside diameter before ordering.
- If you plan to retain A/C, this bundle's supplied 51.2-inch belt is not the correct length; Hybrid Racing specifies a longer belt for power-steering-delete applications retaining air conditioning.
