Images may be for reference only
Product Details

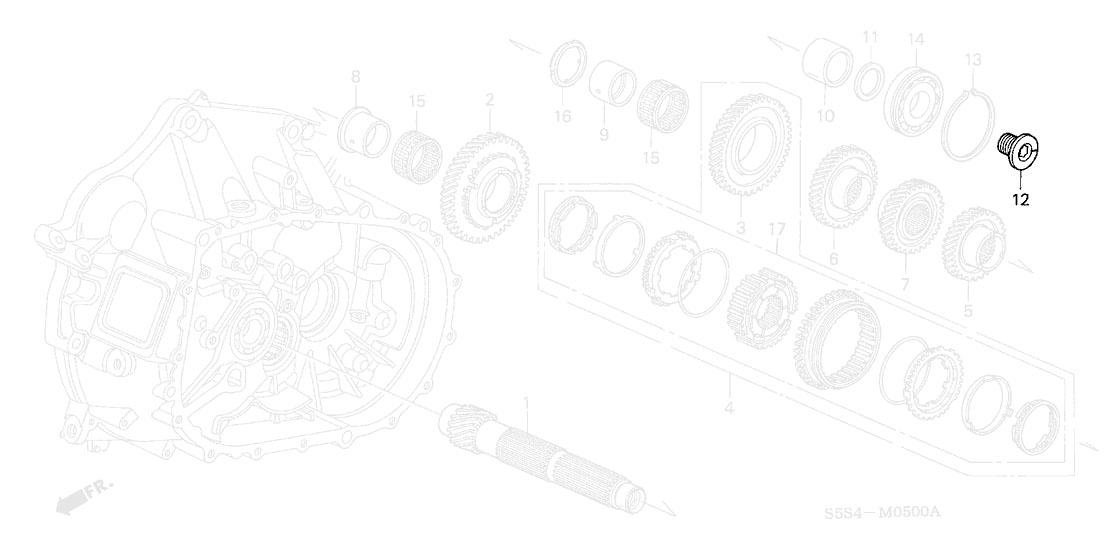

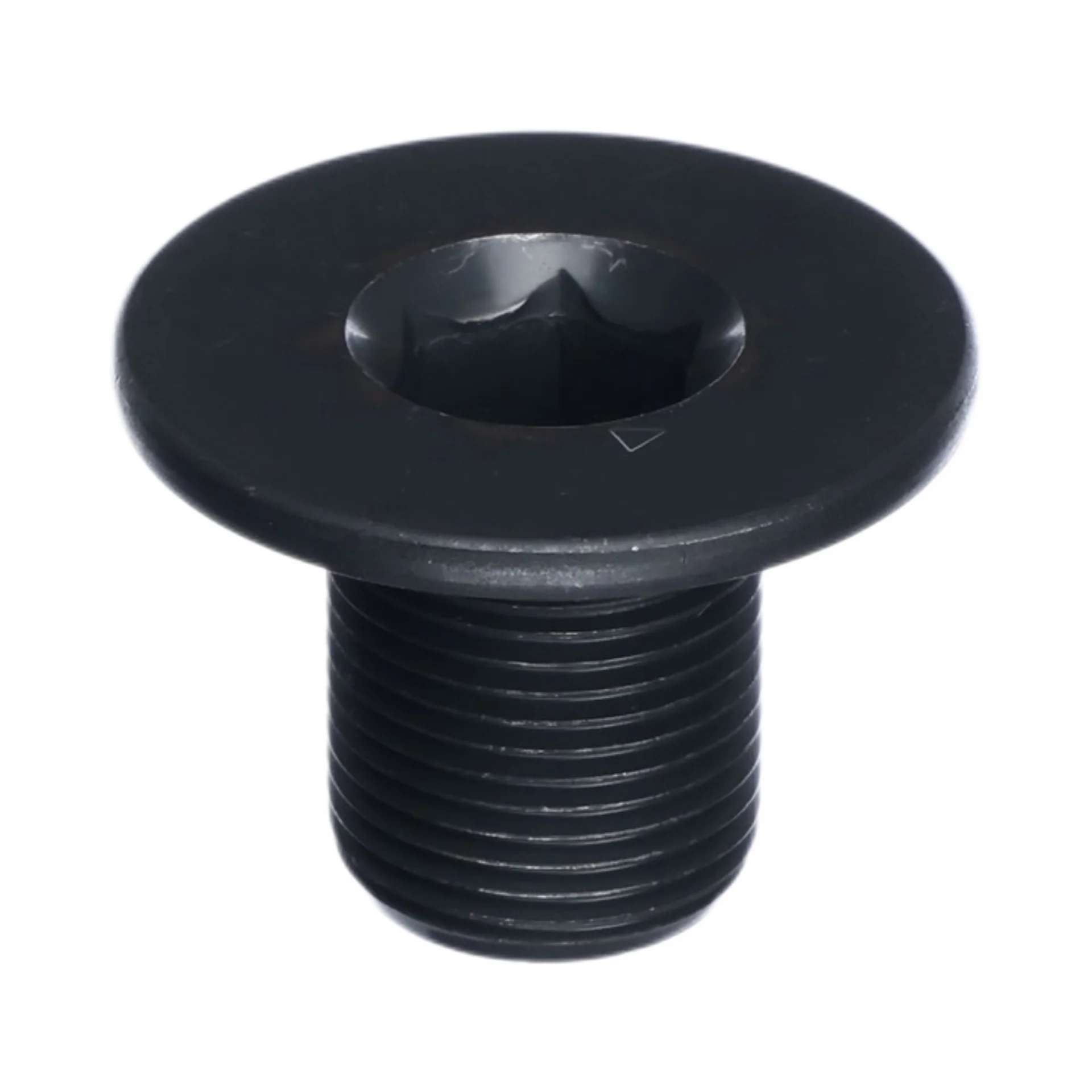

The Genuine Honda 90011-PPP-000 Countershaft Bolt is an OEM special bolt used to secure the countershaft assembly in a variety of Honda and Acura manual transmissions. Honda identifies this component as a Special Bolt (20x25), and it is located at the end of the transmission countershaft.
An important feature of this bolt is its left-hand (reverse) thread. Unlike a conventional fastener, it loosens clockwise and tightens counterclockwise. This genuine Honda replacement is a smart addition when servicing or rebuilding a compatible K-Series or other applicable Honda/Acura manual transmission.
Features:
- Genuine Honda OEM transmission hardware
- Honda part number 90011-PPP-000
- Factory description: Bolt, Special (20x25)
- Commonly referred to as the countershaft bolt
- 20mm thread diameter x 25mm length
- Special left-hand / reverse thread design
- Loosens clockwise and tightens counterclockwise
- Used to retain the bearing and gear stack on the transmission countershaft
- Direct OEM replacement for the original countershaft fastener
- Suitable for transmission rebuilds, gear changes, final-drive installations, and countershaft service
- Used across numerous Honda and Acura manual-transmission applications, including select RSX, Civic, Civic Si, Accord, CR-V, Element, ILX, TSX, and TL models
- Sold individually
Important Installation Note:
- This is a left-hand-thread bolt. Turning it counterclockwise during removal will tighten it rather than loosen it. Verify the applicable Honda service procedure and torque specification for your specific transmission before installation.
| Part Number: | 90011-PPP-000 |
| Brand: | Honda |
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2002 | Acura | RSX | Base |
| 2002 | Acura | RSX | Type-S |
| 2002 | Honda | CR-V | EX |
| 2002 | Honda | CR-V | LX |
| 2002 | Honda | Civic | Si |
| 2003 | Acura | CL | Type-S |
| 2003 | Acura | RSX | Base |
| 2003 | Acura | RSX | Type-S |
| 2003 | Honda | Accord | DX |
| 2003 | Honda | Accord | EX |
| 2003 | Honda | Accord | LX |
| 2003 | Honda | CR-V | EX |
| 2003 | Honda | CR-V | LX |
| 2003 | Honda | Civic | Si |
| 2003 | Honda | Element | DX |
| 2003 | Honda | Element | EX |
| 2004 | Acura | RSX | Base |
| 2004 | Acura | RSX | Type-S |
| 2004 | Acura | TL | Base |
| 2004 | Acura | TSX | Base |
| 2004 | Honda | Accord | DX |
| 2004 | Honda | Accord | EX |
| 2004 | Honda | Accord | LX |
| 2004 | Honda | CR-V | EX |
| 2004 | Honda | CR-V | LX |
| 2004 | Honda | Civic | Si |
| 2004 | Honda | Element | DX |
| 2004 | Honda | Element | EX |
| 2004 | Honda | Element | LX |
| 2005 | Acura | RSX | Base |
| 2005 | Acura | RSX | Type-S |
| 2005 | Acura | TL | Base |
| 2005 | Acura | TSX | Base |
| 2005 | Honda | Accord | DX |
| 2005 | Honda | Accord | EX |
| 2005 | Honda | Accord | LX |
| 2005 | Honda | Accord | SE |
| 2005 | Honda | CR-V | EX |
| 2005 | Honda | Civic | Si |
| 2005 | Honda | Element | EX |
| 2005 | Honda | Element | LX |
| 2006 | Acura | RSX | Base |
| 2006 | Acura | RSX | Type-S |
| 2006 | Acura | TL | Base |
| 2006 | Acura | TSX | Base |
| 2006 | Honda | Accord | EX |
| 2006 | Honda | Accord | LX |
| 2006 | Honda | Accord | LX Special Edition |
| 2006 | Honda | Accord | Value Package |
| 2006 | Honda | CR-V | EX |
| 2006 | Honda | Civic | Si |
| 2006 | Honda | Element | EX |
| 2006 | Honda | Element | LX |
| 2007 | Acura | TL | Base |
| 2007 | Acura | TL | Type-S |
| 2007 | Acura | TSX | Base |
| 2007 | Honda | Accord | EX |
| 2007 | Honda | Accord | EX-L |
| 2007 | Honda | Accord | LX |
| 2007 | Honda | Accord | Special Edition |
| 2007 | Honda | Accord | Value Package |
| 2007 | Honda | Civic | Si |
| 2007 | Honda | Element | EX |
| 2007 | Honda | Element | LX |
| 2007 | Honda | Element | SC |
| 2008 | Acura | TL | Base |
| 2008 | Acura | TL | Type-S |
| 2008 | Acura | TSX | Base |
| 2008 | Honda | Accord | EX |
| 2008 | Honda | Accord | EX-L |
| 2008 | Honda | Accord | LX |
| 2008 | Honda | Accord | LX-P |
| 2008 | Honda | Civic | MUGEN Si |
| 2008 | Honda | Civic | Si |
| 2008 | Honda | Element | EX |
| 2008 | Honda | Element | LX |
| 2008 | Honda | Element | SC |
| 2009 | Acura | TL | Base |
| 2009 | Acura | TL | SH-AWD |
| 2009 | Acura | TSX | Base |
| 2009 | Honda | Accord | EX |
| 2009 | Honda | Accord | EX-L |
| 2009 | Honda | Accord | LX |
| 2009 | Honda | Accord | LX-P |
| 2009 | Honda | Accord | LX-S |
| 2009 | Honda | Civic | Si |
| 2009 | Honda | Element | EX |
| 2009 | Honda | Element | LX |
| 2009 | Honda | Element | SC |
| 2010 | Acura | TL | Base |
| 2010 | Acura | TL | SH-AWD |
| 2010 | Acura | TSX | Base |
| 2010 | Honda | Accord | EX |
| 2010 | Honda | Accord | EX-L |
| 2010 | Honda | Accord | LX |
| 2010 | Honda | Accord | LX-P |
| 2010 | Honda | Accord | LX-S |
| 2010 | Honda | Civic | Si |
| 2010 | Honda | Element | EX |
| 2010 | Honda | Element | LX |
| 2010 | Honda | Element | SC |
| 2011 | Acura | TL | Base |
| 2011 | Acura | TL | SH-AWD |
| 2011 | Acura | TSX | Base |
| 2011 | Honda | Accord | EX |
| 2011 | Honda | Accord | EX-L |
| 2011 | Honda | Accord | LX |
| 2011 | Honda | Accord | LX-S |
| 2011 | Honda | Civic | Si |
| 2011 | Honda | Element | EX |
| 2011 | Honda | Element | LX |
| 2012 | Acura | TL | Base |
| 2012 | Acura | TL | SH-AWD |
| 2012 | Acura | TSX | Base |
| 2012 | Acura | TSX | Special Edition |
| 2012 | Honda | Accord | EX |
| 2012 | Honda | Accord | EX-L |
| 2012 | Honda | Accord | LX |
| 2012 | Honda | Accord | LX-S |
| 2012 | Honda | Civic | Si |
| 2013 | Acura | ILX | Base |
| 2013 | Acura | TL | Base |
| 2013 | Acura | TL | SH-AWD |
| 2013 | Acura | TSX | Base |
| 2013 | Acura | TSX | Special Edition |
| 2013 | Honda | Accord | EX |
| 2013 | Honda | Accord | EX-L |
| 2013 | Honda | Accord | LX |
| 2013 | Honda | Accord | LX-S |
| 2013 | Honda | Accord | Sport |
| 2013 | Honda | Civic | Si |
| 2014 | Acura | ILX | Base |
| 2014 | Acura | TL | Base |
| 2014 | Acura | TL | SH-AWD |
| 2014 | Acura | TSX | Base |
| 2014 | Acura | TSX | Special Edition |
| 2014 | Honda | Accord | EX |
| 2014 | Honda | Accord | EX-L |
| 2014 | Honda | Accord | LX |
| 2014 | Honda | Accord | LX-S |
| 2014 | Honda | Accord | Sport |
| 2014 | Honda | Civic | Si |
| 2015 | Acura | ILX | Base |
| 2015 | Honda | Accord | EX |
| 2015 | Honda | Accord | EX-L |
| 2015 | Honda | Accord | LX |
| 2015 | Honda | Accord | LX-S |
| 2015 | Honda | Accord | Sport |
| 2015 | Honda | Civic | Si |
| 2016 | Honda | Accord | EX |
| 2016 | Honda | Accord | EX-L |
| 2016 | Honda | Accord | LX |
| 2016 | Honda | Accord | LX-S |
| 2016 | Honda | Accord | Sport |
| 2016 | Honda | Civic | LX |
| 2016 | Honda | HR-V | EX |
| 2016 | Honda | HR-V | LX |
| 2017 | Honda | Accord | EX |
| 2017 | Honda | Accord | EX-L |
| 2017 | Honda | Accord | LX |
| 2017 | Honda | Accord | LX-S |
| 2017 | Honda | Accord | Sport |
| 2017 | Honda | Accord | Sport Special Edition |
| 2017 | Honda | Civic | EX-T |
| 2017 | Honda | Civic | LX |
| 2017 | Honda | Civic | Si |
| 2017 | Honda | Civic | Sport |
| 2017 | Honda | Civic | Touring |
| 2017 | Honda | Civic | Type R |
| 2017 | Honda | HR-V | EX |
| 2017 | Honda | HR-V | LX |
| 2018 | Honda | Accord | Sport |
| 2018 | Honda | Civic | EX-T |
| 2018 | Honda | Civic | LX |
| 2018 | Honda | Civic | Si |
| 2018 | Honda | Civic | Sport |
| 2018 | Honda | Civic | Touring |
| 2018 | Honda | Civic | Type R |
| 2018 | Honda | HR-V | EX |
| 2018 | Honda | HR-V | LX |
| 2019 | Honda | Accord | Sport |
| 2019 | Honda | Civic | LX |
| 2019 | Honda | Civic | Si |
| 2019 | Honda | Civic | Sport |
| 2019 | Honda | Civic | Touring |
| 2019 | Honda | Civic | Type R |
| 2020 | Honda | Accord | Sport |
| 2020 | Honda | Civic | LX |
| 2020 | Honda | Civic | Si |
| 2020 | Honda | Civic | Sport |
| 2020 | Honda | Civic | Sport Touring |
| 2020 | Honda | Civic | Touring |
| 2020 | Honda | Civic | Type R |
