Product Details
| Part Number: | GDK20 |
| Brand: | Hasport |
Bring K-Series performance to the first-generation Honda Fit with the Hasport GDK20 K20 Engine Swap Mount Bracket Kit. Designed for the 2007–2008 Honda Fit (GD chassis), the GDK20 provides the brackets required to install a Honda K20 engine with an Acura RSX or 2002–2011 Honda Civic Si manual transmission.
Unlike many Hasport swap kits that replace the complete engine mount system, the GDK20 is a bracket kit that retains and reuses the factory Honda Fit engine mounts. This makes it a specialized solution engineered specifically around the GD Fit chassis and its original mounting system.
Hasport engineered the GDK20 using modern solid-modeling and CAD/CAM technology. The included components combine a CNC-machined 6061-T6 billet aluminum upper engine bracket with application-specific steel transmission brackets to properly position the K-Series drivetrain in the Fit engine bay.
Features
- Genuine Hasport Performance K-Series swap bracket kit
- Part Number: GDK20
- Designed for 2007–2008 Honda Fit (GD chassis)
- Specifically designed for K20 engine swaps
- Compatible with Acura RSX manual transmissions
- Compatible with 2002–2011 Honda Civic Si-style manual transmissions
- Reuses the factory Honda Fit engine mounts
- Includes application-specific engine and transmission mounting brackets
- CNC-machined 6061-T6 billet aluminum upper engine bracket
- Application-specific steel transmission brackets
- Engineered using sophisticated CAD/CAM and solid-modeling technology
- Provides purpose-built K-Series drivetrain positioning
- Eliminates the need to fabricate a complete custom engine mounting system
- Designed for strength and proper fitment
- Excellent foundation for a high-performance K20-powered Honda Fit
- Suitable for naturally aspirated and forced-induction builds
- Backed by Hasport's applicable limited lifetime warranty against defects
Vehicle Fitment
- 2007-2008 Honda Fit
The GDK20 is specifically designed for:
- Honda K20-Series engines
- K20 engine paired with a compatible K-Series manual transmission
- For builders installing a K24, Hasport offers the separate GDK24 bracket kit.
Hasport specifies the GDK20 for use with:
- Acura RSX manual transmissions
- 2002–2011 Honda Civic Si manual transmissions

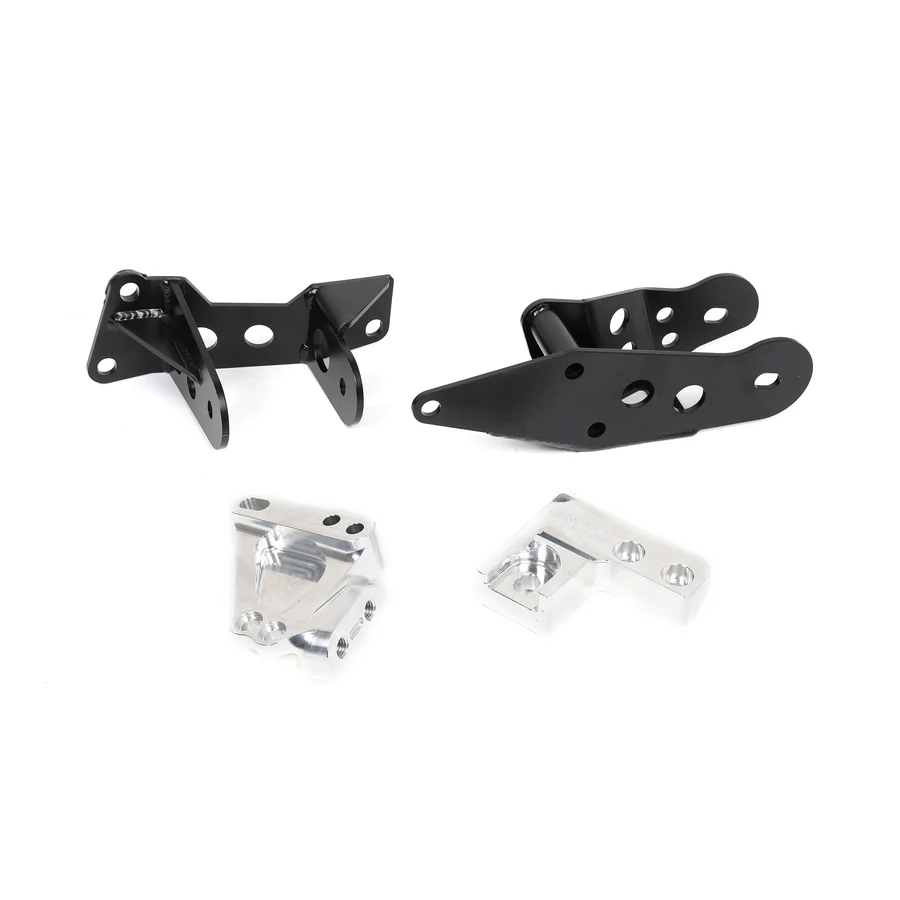

Kit Includes
- 1 × Billet Aluminum Upper Engine Mount Bracket
- 1 × Steel Left Transmission Bracket
- 1 × Steel Rear Transmission Bracket
- Right Bracket Hardware
- Rear Bracket Hardware
The kit does not include replacement polyurethane engine mounts; it is designed to work with the Fit's original mounts.
Additional Swap Components Required
- The GDK20 is only the engine/transmission mounting portion of the K20 conversion. Hasport's installation documentation identifies additional components typically required, including a K20 manual-transmission intermediate shaft, swap axles, K-Series ECU and engine harness, cooling fan solution, and K20 Fit swap header. Other wiring, cooling, fuel, exhaust, shifter, and application-specific components will also need to be addressed.
Installation Note
- This is an involved engine conversion. Hasport's installation instructions state that because the K-Series drivetrain is considerably larger than the original Fit L-Series drivetrain, engine-bay sheet-metal modification is required to provide adequate clearance. Hasport recommends having the conversion performed by an experienced shop if the installer is not familiar with engine swaps.
Important Fitment Note:
- GDK20 is a bracket kit for installing a K20 engine into the 2007–2008 Honda Fit while retaining the factory Fit mounts. It is not a complete polyurethane replacement mount kit. For a K24-powered GD Fit, use the corresponding Hasport GDK24 kit instead.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2007 | Honda | Fit | Base |
| 2007 | Honda | Fit | Sport |
| 2008 | Honda | Fit | Base |
| 2008 | Honda | Fit | Sport |
Engine Fitment
Honda 2.0L/1998CC - 4 Cylinder (K20A3)
Honda 2.0L/1998CC - 4 Cylinder (K20A2)
Honda 2.0L/1998CC - 4 Cylinder (K20Z3)
