Transform your 1996–2000 Honda Civic into an all-wheel-drive performance build with the Hasport EKBAWD2 B-Series AWD Engine Swap Mount Kit. Designed for sixth-generation Civic applications using a compatible Honda B-Series engine and first-generation Honda CR-V AWD manual transmission, this mounting system provides the specialized drivetrain support required for an AWD conversion.

The EKBAWD2 is designed for B-Series engines equipped with a 2-bolt left-hand engine mounting bracket. Its application-specific construction accommodates the AWD transmission's unique mounting requirements while helping maintain proper engine and transmission positioning within the Civic engine bay.

Whether you're building a turbocharged B18, a naturally aspirated B16, or a high-torque B20, the Hasport EKBAWD2 provides a performance-oriented mounting foundation for your AWD Civic project.

Designed for B-Series AWD Conversions

Converting a front-wheel-drive Honda Civic to all-wheel drive requires more than simply installing an AWD transmission. The engine and transmission must be correctly positioned to accommodate the transfer assembly, front axles, driveshaft, and supporting drivetrain components.

The Hasport EKBAWD2 is designed specifically for this conversion using a compatible B-Series engine and 1997–2001 Honda CR-V AWD manual transmission.

Its mounting configuration helps provide:

• Proper engine and transmission positioning.

• Support for the AWD transmission assembly.

• Reduced excessive drivetrain movement.

• Consistent drivetrain alignment.

• A dependable foundation for additional AWD conversion components.

2-Bolt Left-Hand Engine Mount Configuration

The EKBAWD2 is intended for B-Series engines using a 2-bolt left-hand engine mount bracket.

Honda B-Series engines can use different engine-side mounting arrangements depending on their original application and installed brackets.

Selecting the correct mount kit is essential to achieving proper fitment.

Before ordering, verify the engine's left-hand mounting bracket and confirm that it uses the required 2-bolt configuration.

Performance Polyurethane Bushings

Hasport performance polyurethane bushings are designed to reduce excessive engine and transmission movement compared with conventional factory rubber mounts.

Limiting drivetrain movement can help improve engine stability during hard acceleration, aggressive shifting, and high-traction launches.

The EKBAWD2 is available with multiple bushing hardness options to accommodate street-driven vehicles and dedicated motorsport applications.

Features

• 1996–2000 Honda Civic Compatibility: Designed for sixth-generation Civic AWD conversions.

• B-Series Engine Support: Accommodates compatible Honda B16, B18, and B20 engine configurations.

• CR-V AWD Transmission Compatibility: Designed for compatible 1997–2001 Honda CR-V AWD manual transmissions.

• 2-Bolt Engine Mount Configuration: Intended for engines equipped with the appropriate 2-bolt left-hand mounting bracket.

• AWD-Specific Mounting Design: Provides application-specific engine and transmission support.

• Performance Polyurethane Bushings: Help reduce excessive drivetrain movement.

• Improved Engine Stability: Limits unwanted engine rocking during acceleration and shifting.

• Performance-Oriented Construction: Designed for demanding street and competition applications.

• Precision-Engineered Components: Developed for consistent fitment and drivetrain positioning.

• Multiple Bushing Hardness Options: Allows builders to select the desired level of drivetrain rigidity.

• Naturally Aspirated and Turbocharged Applications: Suitable for compatible performance B-Series builds.

• AWD Drag Racing Applications: Provides drivetrain support for high-traction launches.

Popular Performance Applications

B-Series AWD Civic Conversions

Provides the engine and transmission mounting foundation for sixth-generation Civic AWD builds.

B16A and B16A2 AWD Builds

Suitable for compatible high-revving B16 engine configurations paired with a CR-V AWD transmission.

B18B1 Turbocharged Applications

Provides stable drivetrain mounting for turbocharged non-VTEC B-Series builds.

B18C1 and B18C5 Performance Builds

Supports compatible VTEC B18 engine applications for high-performance street and track use.

B20B and B20Z AWD Conversions

Suitable for compatible B20 engine configurations where additional displacement and torque are desired.

B20/VTEC Hybrid Builds

Can support compatible B20-based hybrid configurations equipped with the appropriate engine mounting brackets.

AWD Drag Racing

Performance polyurethane bushings help reduce unwanted drivetrain movement during aggressive launches.

Additional Information

• Manufacturer: Hasport Performance
• Part Number: EKBAWD2
• Product Type: B-Series AWD Engine Swap Mount Kit
• Vehicle Application: 1996–2000 Honda Civic
• Chassis: EK / EM
• Engine Compatibility: Compatible Honda B-Series
• Transmission Compatibility: 1997–2001 Honda CR-V AWD Manual
• Left-Hand Mount Configuration: 2-Bolt
• Drivetrain Application: AWD Conversion
• Bushing Material: Performance Polyurethane
• Available Bushing Hardness Options: 62A / 70A / 88A / 94A
• Installation Type: Performance AWD Engine and Transmission Conversion

Available Polyurethane Bushing Hardness Options

62A – Street

Designed for street-driven vehicles where vibration isolation and everyday comfort are important.

70A – Race

Provides increased drivetrain rigidity for aggressive street driving and occasional motorsport use.

88A – Extreme Race

Designed for demanding competition applications where limiting drivetrain movement is a priority.

94A – Most Extreme Race

The stiffest available configuration, intended for dedicated racing vehicles where maximum drivetrain rigidity is preferred.

Higher-durometer bushings generally transmit more engine vibration and noise into the vehicle cabin.

EKBAWD2 vs. EKBAWD3

Hasport EKBAWD2: Intended for compatible B-Series engines using a 2-bolt left-hand engine mounting configuration.

Hasport EKBAWD3: Intended for compatible B-Series engines using a 3-bolt left-hand engine mounting configuration.

Confirm the engine's mounting bracket arrangement before selecting the correct kit.

Common Reasons for Replacement or Upgrade

• AWD Drivetrain Conversion: Provides mounting support for installing a CR-V AWD manual transmission.

• B-Series Engine Swap: Supports compatible B-Series engines in the sixth-generation Civic chassis.

• 2-Bolt Mount Compatibility: Accommodates the appropriate B-Series left-hand engine bracket.

• Reduced Drivetrain Movement: Polyurethane bushings help control excessive engine movement.

• Improved Engine Stability: Maintains more consistent drivetrain positioning during acceleration.

• Turbocharged Performance Builds: Provides a performance-oriented mounting foundation for increased power.

• AWD Drag Racing Applications: Helps stabilize the drivetrain during high-traction launches.

• Street and Track Upgrades: Multiple bushing hardness options allow customization for the intended use.

Installation Notes

1. Verify Vehicle Compatibility: Confirm the vehicle is a 1996–2000 Honda Civic with a compatible chassis configuration.

2. Confirm Engine Compatibility: Identify the exact B-Series engine being installed.

3. Inspect the Left-Hand Engine Bracket: Verify that the engine uses the required 2-bolt mounting configuration.

4. Confirm Transmission Compatibility: Verify that the transmission is a compatible 1997–2001 Honda CR-V AWD manual transmission.

5. Plan the Complete AWD Conversion: Additional drivetrain components, including a driveshaft, rear differential, axles, and supporting suspension components, will be required.

6. Inspect Chassis Mounting Points: Check the condition of the engine bay, subframe, and mounting locations before installation.

7. Complete Required Fabrication: AWD conversions may require modifications to the chassis, floor, exhaust system, and rear suspension.

8. Support the Engine and Transmission: Use appropriate lifting equipment and drivetrain supports.

9. Install the Hasport Mounting Components: Position the engine and transmission mounts according to the manufacturer's installation instructions.

10. Verify Engine Positioning: Confirm adequate clearance around the transmission, transfer assembly, and surrounding engine bay components.

11. Inspect Axle Alignment: Verify proper front axle engagement and operating angles.

12. Check Driveshaft Clearance: Confirm proper clearance and alignment for the AWD driveshaft.

13. Inspect Exhaust and Fuel System Routing: Additional modifications may be necessary to accommodate the AWD drivetrain.

14. Torque Mounting Hardware: Follow Hasport's instructions and applicable Honda service specifications.

15. Perform a Final Inspection: Check all mounting points, drivetrain clearances, and associated AWD components before operating the vehicle.

Professional installation is recommended due to the fabrication and drivetrain modifications typically required for an AWD conversion.

What's Included

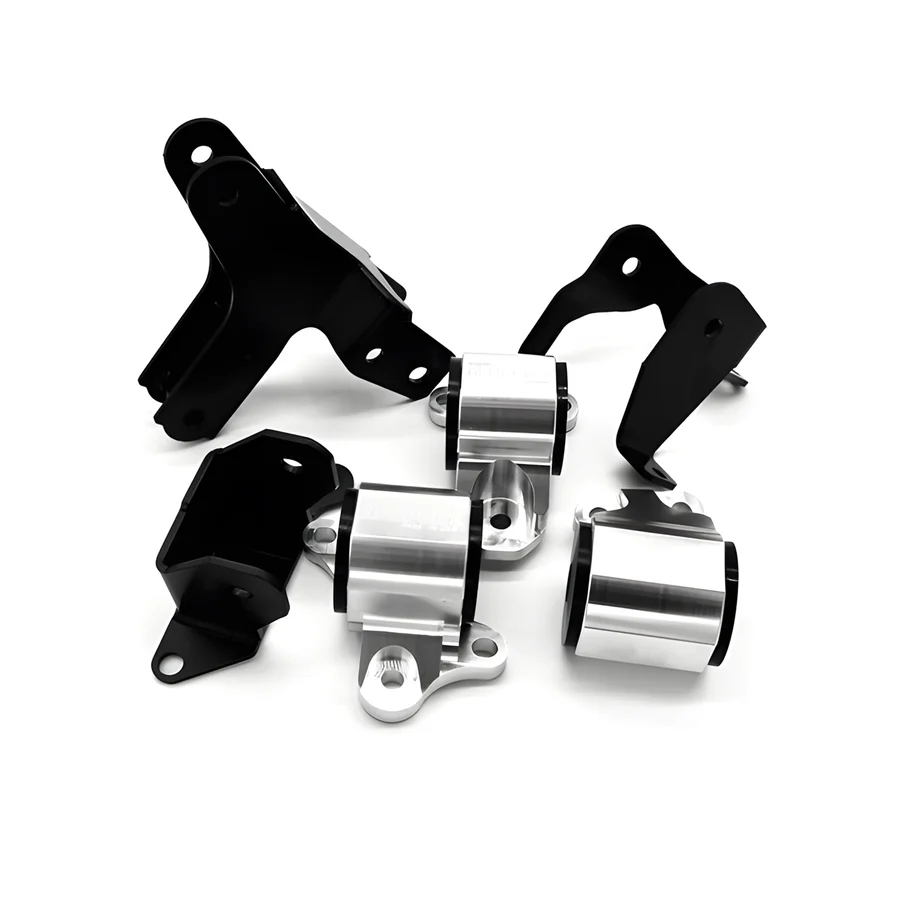

• Hasport EKBAWD2 B-Series AWD engine swap mounting components

• Application-specific engine and transmission mounting brackets

• Performance polyurethane bushings in the selected hardness configuration

• Associated mounting hardware supplied with the kit

Important: The EKBAWD2 is an engine and transmission mounting kit, not a complete AWD conversion package.

The engine, transmission, transfer case, driveshaft, rear differential, axles, and other supporting conversion components are sold separately unless otherwise specified.

Build a stronger foundation for your AWD Civic conversion with the Hasport EKBAWD2 B-Series AWD Engine Swap Mount Kit, designed for 1996–2000 Honda Civic applications using compatible B-Series engines with a 2-bolt left-hand mounting configuration and 1997–2001 Honda CR-V AWD manual transmissions.

Featuring precision-engineered mounting components, performance polyurethane bushings, and AWD-specific drivetrain positioning, the EKBAWD2 delivers the support needed for a serious street or competition build.

Whether you're assembling a turbocharged B18 AWD drag car, a B20-powered street machine, or a high-revving B16 performance Civic, Hasport provides the specialized mounting solution needed to support your conversion.
