Images may be for reference only
Product Details

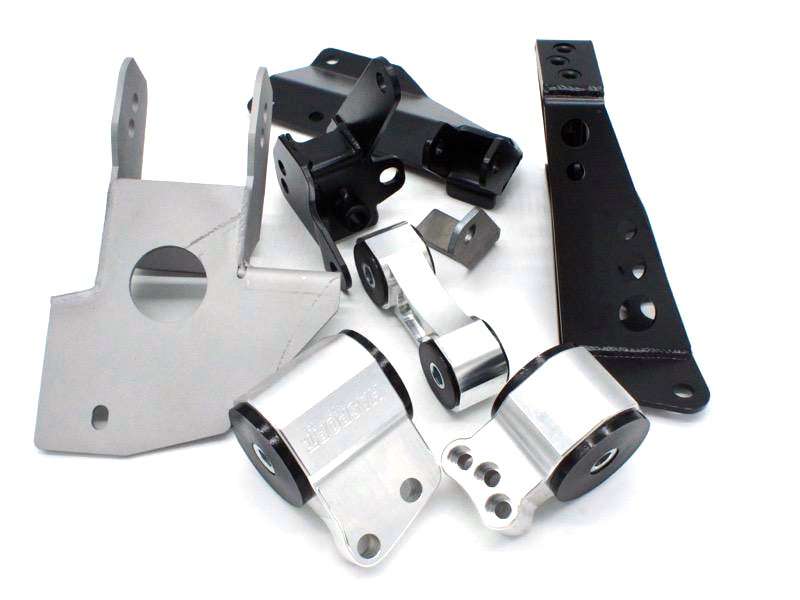

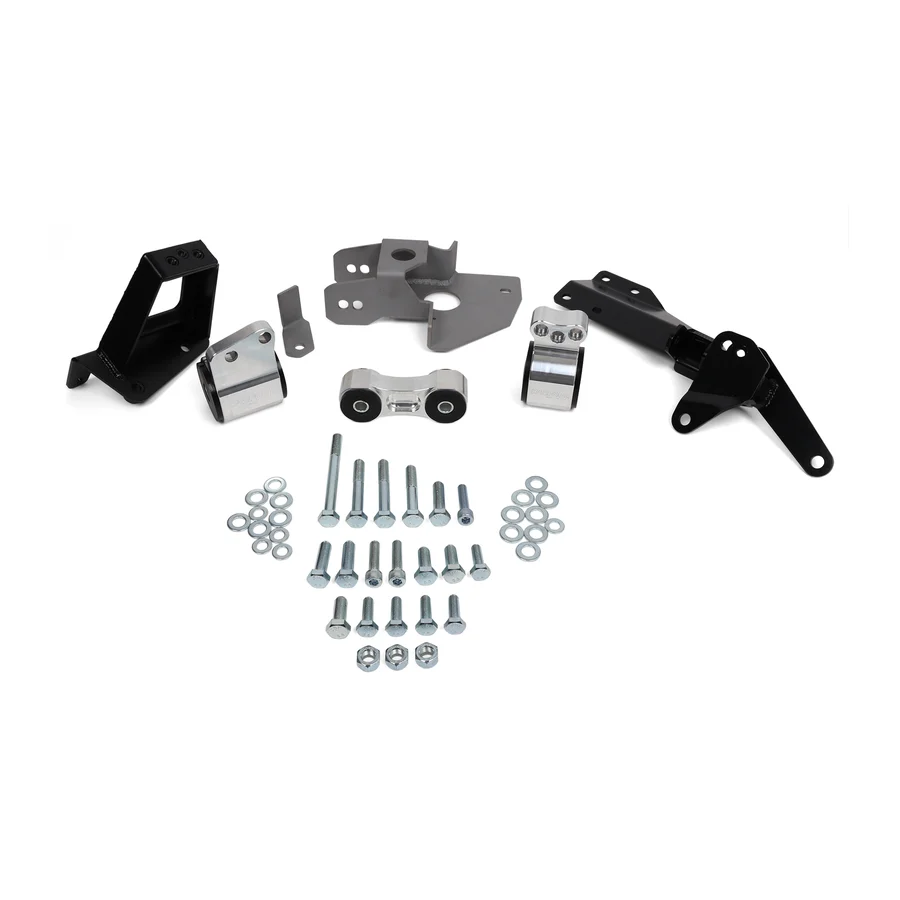

Take your EF K-swap to the next level with the Hasport EFKAWD Performance Engine Mount Kit, designed for installing a Honda K-series engine with a CR-V or Element AWD manual transmission into the 1988–1991 Honda Civic/CRX platform. The kit is also compatible with K-series FWD manual transmissions from the CR-V and Element, giving builders additional drivetrain options.
Engineered specifically for K-series conversions, the EFKAWD positions the drivetrain to provide optimized axle alignment, ground clearance, and hood clearance. After the required engine-bay modifications are completed, the mount system allows the K-series engine and compatible transmission to bolt into the EF chassis.
Like Hasport's other performance mount systems, the EFKAWD is developed using CAD/CAM design technology and is available with four urethane bushing stiffness options, allowing you to configure the mounts for anything from a street-driven AWD conversion to a dedicated competition build.
Features
- Designed for K-series engine swaps into 1988–1991 Honda Civic and CRX
- Designed for use with K-series CR-V and Element AWD manual transmissions
- Also compatible with CR-V and Element FWD manual transmissions
- Ideal for custom AWD K-series EF conversions
- Optimized engine placement for proper axle alignment
- Designed to maximize ground and hood clearance
- Engineered using sophisticated CAD/CAM technology
- Performance-oriented mount design helps provide secure drivetrain positioning
- Available with four urethane bushing stiffness options
- Suitable for applications ranging from daily-driven street builds to high-performance race cars
- Designed with a combination of strength, functionality, and clean styling
- Backed by Hasport's lifetime warranty
Available Bushing Stiffness
- U62A – Street: Best suited for daily-driven and performance street applications
- U70A – Race: Firmer option for aggressive street and motorsport use
- U88A – Extreme Race: High-stiffness option for competition-oriented builds
- U94A – Most Extreme Race: Hasport's firmest urethane option for dedicated race applications
Higher-durometer bushings provide greater resistance to drivetrain movement but will generally transmit more noise, vibration, and harshness (NVH) into the chassis.
Vehicle Fitment
- 1988–1991 Honda Civic
- 1988–1991 Honda CRX
- For Honda K-Series engine swap applications
Transmission Compatibility
- Honda CR-V K-Series AWD manual transmission
- Honda Element K-Series AWD manual transmission
- Honda CR-V K-Series FWD manual transmission
- Honda Element K-Series FWD manual transmission
Specifications:
- Manufacturer: Hasport Performance
- Part Number: EFKAWD
- Product Type: K-Series AWD Engine Swap Mount Kit
- Chassis: 1988–1991 Civic / CRX (EF)
- Engine Family: Honda K-Series
- Transmission Type: CR-V / Element AWD or FWD Manual
- Bushing Options: U62A, U70A, U88A, U94A
- Approximate Kit Weight: 25 lbs
- Warranty: Hasport Lifetime Warranty
Installation Note
- The EFKAWD requires modifications to the engine bay before installation. Once the necessary modifications have been completed, the mount kit provides the mounting solution for installing the K-series engine and compatible CR-V or Element manual transmission into the EF chassis. Because an AWD conversion requires additional drivetrain and chassis components beyond the engine mounts, this kit should be considered one component of a complete AWD conversion.
- For builders looking to combine the lightweight 1988–1991 Civic/CRX chassis with K-series power and AWD capability, the Hasport EFKAWD provides a purpose-built engine mounting solution with optimized drivetrain placement and multiple bushing options to suit street, drag, or track applications.
| Part Number: | EFKAWD |
| Brand: | Hasport |
| Insert Hardness: | 62A |
| Drivetrain: | AWD |
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim | Notes |
|---|---|---|---|---|
| 1988 | Honda | CRX | DX | AWD |
| 1988 | Honda | CRX | HF | AWD |
| 1988 | Honda | CRX | Si | AWD |
| 1988 | Honda | Civic | Base | AWD |
| 1988 | Honda | Civic | DX | AWD |
| 1988 | Honda | Civic | LX | AWD |
| 1988 | Honda | Civic | RT 4WD | AWD |
| 1988 | Honda | Civic | Wagovan | AWD |
| 1989 | Honda | CRX | Base | AWD |
| 1989 | Honda | CRX | HF | AWD |
| 1989 | Honda | CRX | Si | AWD |
| 1989 | Honda | Civic | Base | AWD |
| 1989 | Honda | Civic | DX | AWD |
| 1989 | Honda | Civic | LX | AWD |
| 1989 | Honda | Civic | RT 4WD | AWD |
| 1989 | Honda | Civic | Si | AWD |
| 1989 | Honda | Civic | Wagovan | AWD |
| 1990 | Honda | CRX | Base | AWD |
| 1990 | Honda | CRX | HF | AWD |
| 1990 | Honda | CRX | Si | AWD |
| 1990 | Honda | Civic | Base | AWD |
| 1990 | Honda | Civic | DX | AWD |
| 1990 | Honda | Civic | EX | AWD |
| 1990 | Honda | Civic | LX | AWD |
| 1990 | Honda | Civic | RT 4WD | AWD |
| 1990 | Honda | Civic | Si | AWD |
| 1991 | Honda | CRX | Base | AWD |
| 1991 | Honda | CRX | HF | AWD |
| 1991 | Honda | CRX | Si | AWD |
| 1991 | Honda | Civic | Base | AWD |
| 1991 | Honda | Civic | DX | AWD |
| 1991 | Honda | Civic | EX | AWD |
| 1991 | Honda | Civic | LX | AWD |
| 1991 | Honda | Civic | RT 4WD | AWD |
| 1991 | Honda | Civic | Si | AWD |
Engine Fitment
| Engine |
|---|
| Honda 2.4L/2354CC - 4 Cylinder (K24Z3) |
| Honda 2.4L/2354CC - 4 Cylinder (K24Z7) |
