Product Details
| Part Number: | CL9TCB |
| Brand: | Hasport |

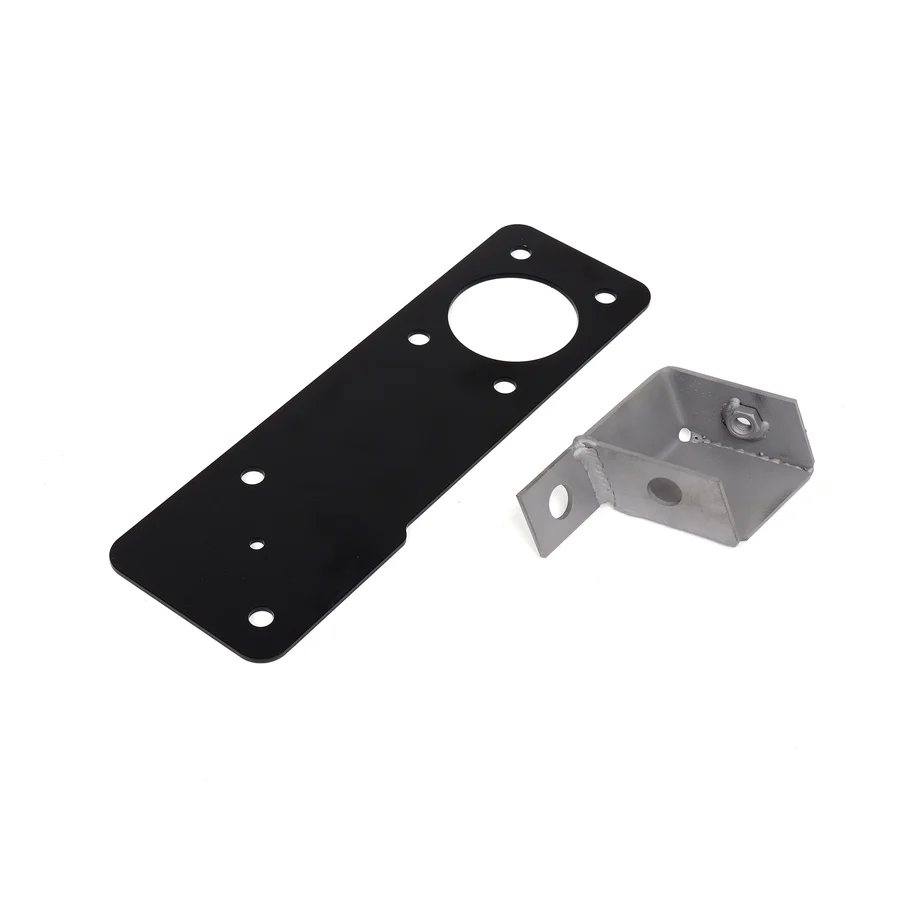

Complete your automatic-to-manual transmission conversion properly with the Hasport Racing CL9TCB Clutch Pedal Mounting Brace. Designed for select Honda Accord and Acura TSX/TL applications, this kit provides the additional structural support needed to securely mount the clutch pedal to the cowl during a manual transmission conversion.
Automatic-equipped vehicles were not originally configured with the same clutch pedal mounting provisions as their manual-transmission counterparts. The Hasport CL9TCB reinforces the clutch pedal mounting area, helping prevent unwanted pedal movement and flex during clutch operation. The brace can be welded to the cowl or bolted in place using rivet nuts/threaded inserts, giving builders flexibility based on their preferred installation method.
The CL9TCB configuration also includes a steel hole-pattern template that simplifies locating the required clutch pedal mounting holes. The template attaches at the brake booster area inside the vehicle, providing an accurate reference for drilling during the conversion.
Features
- Genuine Hasport Racing clutch pedal mounting brace
- Part Number: CL9TCB
- Designed for automatic-to-manual transmission conversions
- Provides a solid upper mounting point for the clutch pedal
- Reinforces the cowl area to help minimize clutch pedal flex
- Helps provide a more stable and consistent clutch pedal feel
- Includes a steel hole-pattern/drill template
- Template assists with accurately locating clutch pedal mounting holes
- Template references the brake booster mounting area for positioning
- Brace can be welded to the cowl
- Can alternatively be bolted in place using rivet nuts or threaded inserts
- Purpose-built solution eliminates the need to fabricate a clutch pedal reinforcement brace from scratch
- Ideal for properly completing a manual transmission conversion
- Heavy-duty steel construction
- Designed specifically around compatible Honda/Acura chassis geometry
Kit Includes
- 1 × Hasport Clutch Pedal Mounting Brace
- 1 × Steel Hole-Pattern Template
- Installation instructions
Installation
- The steel template is used to determine the proper location for the clutch pedal mounting holes. Once positioned, the cowl can be drilled and the reinforcement brace installed. Depending on the build, the brace may be welded into position or secured using appropriate threaded inserts/rivet nuts.
Important Installation Note:
- Dashboard removal is required to install the CL9TCB clutch pedal brace.
- This component is intended as part of an automatic-to-manual conversion and does not include the clutch pedal assembly, clutch master cylinder, transmission, or other manual-swap components
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2003 | Honda | Accord | DX |
| 2003 | Honda | Accord | EX |
| 2003 | Honda | Accord | LX |
| 2004 | Acura | TL | Base |
| 2004 | Acura | TSX | Base |
| 2004 | Honda | Accord | DX |
| 2004 | Honda | Accord | EX |
| 2004 | Honda | Accord | LX |
| 2005 | Acura | TL | Base |
| 2005 | Acura | TSX | Base |
| 2005 | Honda | Accord | DX |
| 2005 | Honda | Accord | EX |
| 2005 | Honda | Accord | Hybrid |
| 2005 | Honda | Accord | LX |
| 2005 | Honda | Accord | SE |
| 2006 | Acura | TL | Base |
| 2006 | Acura | TSX | Base |
| 2006 | Honda | Accord | EX |
| 2006 | Honda | Accord | Hybrid |
| 2006 | Honda | Accord | LX |
| 2006 | Honda | Accord | LX Special Edition |
| 2006 | Honda | Accord | Value Package |
| 2007 | Acura | TL | Base |
| 2007 | Acura | TL | Type-S |
| 2007 | Honda | Accord | EX |
| 2007 | Honda | Accord | EX-L |
| 2007 | Honda | Accord | Hybrid |
| 2007 | Honda | Accord | LX |
| 2007 | Honda | Accord | Special Edition |
| 2007 | Honda | Accord | Value Package |
| 2008 | Acura | TL | Base |
| 2008 | Acura | TL | Type-S |
