Images may be for reference only
Product Details
| Part Number: | CDK |
| Brand: | Hasport |

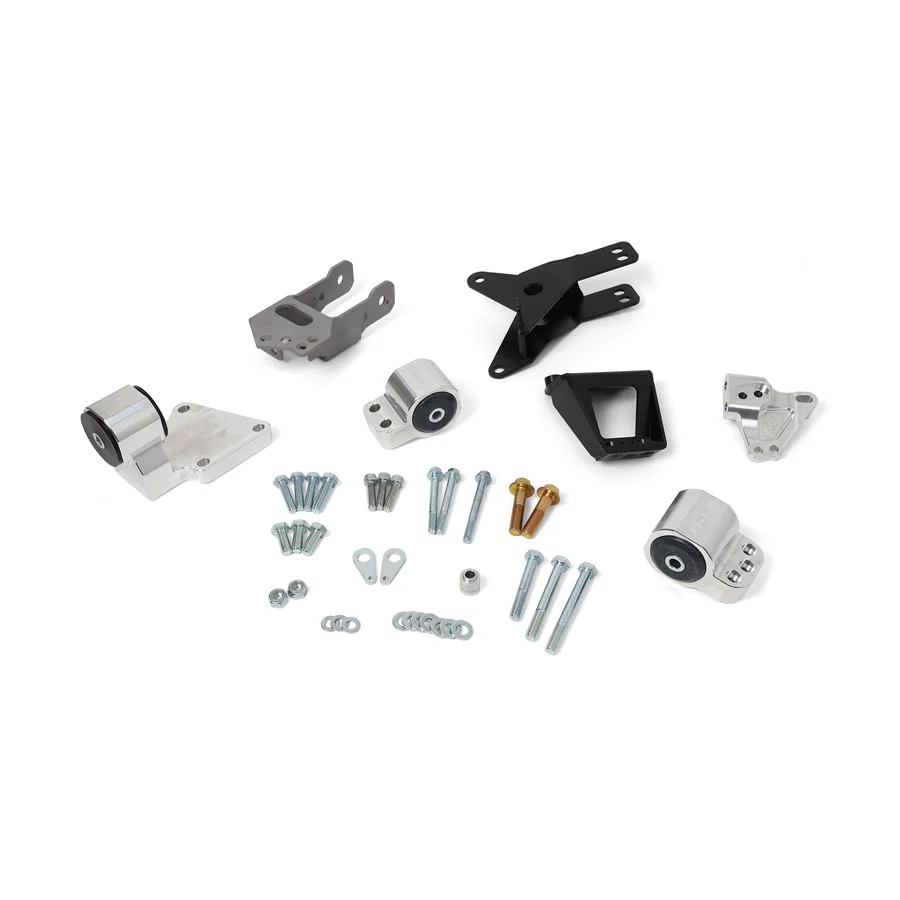

Upgrade your fifth-generation Accord with modern Honda K-Series power using the Hasport CDK K-Series Engine Swap Mount Kit. Designed specifically for the 1994–1997 Honda Accord (CD chassis), the CDK mount system provides a purpose-built foundation for installing a Honda K-Series engine with your choice of several popular K-Series manual transmissions.
Hasport's CDK system features a dual-height mounting design that optimizes drivetrain placement for axle alignment, ground clearance, and hood clearance. The design keeps the cylinder head in a consistent location, helping simplify intake and exhaust fitment when configuring your K-Series swap.
Multiple CDK configurations are available based on transmission choice, including RSX/Civic Si, Accord/TSX, and CR-V/Element AWD or FWD manual transmissions. The kit also works with both factory automatic and manual Accord chassis, making it a versatile solution for a wide variety of K20 and K24-powered builds.
Features
- Genuine Hasport Performance K-Series Engine Swap Mount Kit
- Part Number / Series: CDK
- Designed for 1994–1997 Honda Accord (CD chassis)
- Allows installation of compatible Honda K-Series engines
- Supports popular K20 and K24 engine combinations
- Multiple configurations available for different K-Series manual transmissions
- Works with both factory automatic and manual chassis
- Hasport dual-height mounting design
- Optimized engine placement for proper axle alignment
- Designed to maximize ground clearance and hood clearance
- Consistent cylinder-head positioning helps simplify intake and exhaust fitment
- Performance polyurethane bushings help control excessive drivetrain movement
- Available in four polyurethane bushing stiffness options
- Designed using sophisticated CAD/CAM engineering
- Suitable for naturally aspirated and forced-induction K-Series builds
- Excellent foundation for street, autocross, drag, and road-racing applications
- Hasport offers matching swap components including axles and accessories
- Backed by Hasport's lifetime warranty
Vehicle Fitment
- 1994-1997 Honda Accord
- Factory automatic or manual chassis
The CDK is a mount-kit family with several configurations depending on which transmission is being used:
- CDK2 – RSX and 2002–2011 Civic Si manual transmissions
- CDK4 – 2003–2007 Accord and 2004–2008 TSX manual transmissions
- CDK5 – 2008–2013 Accord, 2009–2014 TSX, and 2012–2015 Civic Si manual transmissions
- CDKAWD – K-Series CR-V and Element AWD or FWD manual transmissions
Selecting the correct transmission configuration is essential when ordering.
Bushing Options
- U62A – Street: Best suited for daily-driven and street-oriented vehicles
- U70A – Race: Firmer option for aggressive street, autocross, and track use
- U88A – Extreme Race: Very stiff configuration intended primarily for competition
- U94A – Most Extreme Race: Maximum drivetrain control for dedicated race applications
Higher-durometer bushings provide greater control over drivetrain movement but will also increase noise, vibration, and harshness (NVH) transmitted into the chassis.
Installation Requirements
- Installation requires engine-bay modification and welding. Hasport specifically states that the factory transmission bracket must be cut from the frame rail. Once the necessary chassis modifications have been completed, the mount system provides the mounting solution for the K-Series drivetrain.
- Additional components will be required to complete the swap, including the appropriate transmission, axles, intermediate shaft, shifter/cables, wiring and ECU solution, cooling system components, intake, exhaust, and other application-specific hardware.
- Hasport also offers the HP-CDKAX axle set for K-swapped 1994–1997 Accords. This axle package is designed for use with an Accord/TSX intermediate shaft and is specified by Hasport for street use rather than drag racing.
Important Fitment Note:
- CDK identifies the complete Hasport mount family for K-Series swaps into the 1994–1997 Honda Accord. The correct version—CDK2, CDK4, CDK5, or CDKAWD—must be selected according to the transmission being used. Installation requires cutting the factory transmission bracket from the frame rail and involves welding, so professional installation or appropriate fabrication experience is recommended.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1994 | Honda | Accord | DX |
| 1994 | Honda | Accord | EX |
| 1994 | Honda | Accord | LX |
| 1995 | Honda | Accord | DX |
| 1995 | Honda | Accord | EX |
| 1995 | Honda | Accord | LX |
| 1996 | Honda | Accord | 25th Anniversary Edition |
| 1996 | Honda | Accord | DX |
| 1996 | Honda | Accord | EX |
| 1996 | Honda | Accord | LX |
| 1996 | Honda | Accord | Value Package |
| 1997 | Honda | Accord | DX |
| 1997 | Honda | Accord | EX |
| 1997 | Honda | Accord | LX |
| 1997 | Honda | Accord | SE |
| 1997 | Honda | Accord | Value Package |
Engine Fitment
Honda 2.0L/1998CC - 4 Cylinder (K20A3)
Honda 2.0L/1998CC - 4 Cylinder (K20A2)
Honda 2.0L/1998CC - 4 Cylinder (K20Z1)
Honda 2.0L/1998CC - 4 Cylinder (K20Z3)
Honda 2.4L/2354CC - 4 Cylinder (K24A1)
Honda 2.4L/2354CC - 4 Cylinder (K24A8)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A4)
