Product Details
| Part Number: | HT-193100 |
| Brand: | Haltech |
| CARB Approved: | No |

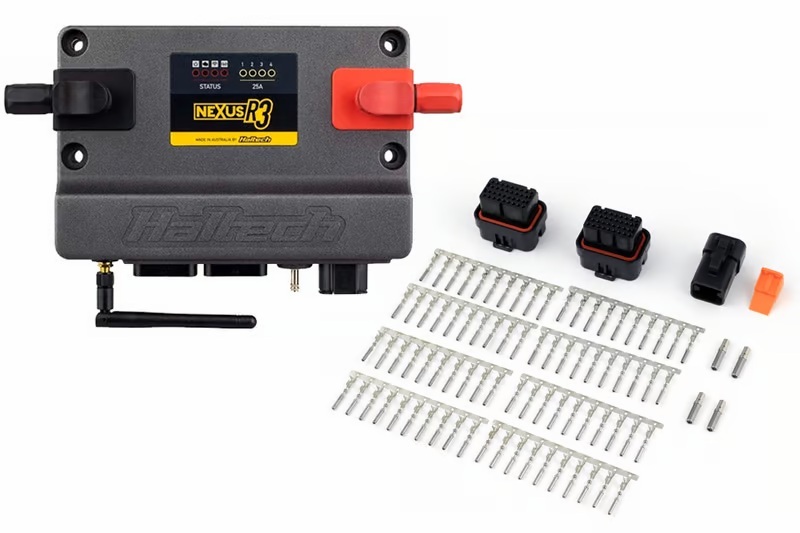

The Haltech NEXUS R3 Plug & Pin Set is an essential component designed for seamless electrical connections within your NEXUS R3 engine management system. Crafted by Haltech, a trusted name in automotive electronics, this set ensures reliable and secure wiring connections that maintain optimal performance. Whether you're installing or repairing, this plug and pin set provides a precise fit for your NEXUS R3 system, facilitating efficient signal transmission and power delivery.
Made with high-quality materials, the set features durable construction to withstand the vibrations, temperature variations, and conditions typical in automotive environments. Its design emphasizes ease of installation, allowing technicians and enthusiasts to connect components quickly and confidently. The plug and pin set is engineered to meet the specific requirements of the NEXUS R3, ensuring compatibility and reliable operation.
Ideal for professional automotive applications or DIY enthusiasts, this set helps maintain the integrity of your electronic systems, preventing connection failures that could impact vehicle performance. It is a crucial accessory for those looking to upgrade or maintain their engine management system, ensuring long-term reliability. The Haltech NEXUS R3 Plug & Pin Set is a dependable choice for achieving optimal electrical connections in your vehicle's electronic setup.
Overview:
- 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
- 8 x peak/hold injector drivers (can be used as low side drive outputs)
- 8 x low current ignition outputs (can be used as low side drive outputs)
- 6 x low side drive outputs, PWM capable (DPOs)
- 6 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
- 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 1 x on-board wideband controller, supporting NTK and LSU4.9
- 1 x on-board 4 bar MAP sensor
- 2 x CAN ports with switchable termination
- Onboard data logging - Up to 300 channels of logging at sample rates up to 1ms (1kHz) with 128MB of internal memory
- Plug and Pin set compatible with Haltech Nexus products that use the Key 2 / 34 position connector.
- Plug and pins only - Male Deutsch DTP-06-4S - Black connector (25Amp)
- Superseal connector
- 34 Pin (Key 1) Plug and Pins
VCU FEATURES
- Controlled via NSP (Nexus Software Programmer)
- Long Term Learning
- Stepper Motor Control
- 4D Closed Loop Boost Control
- Closed Loop CO2 Control
- Rotational Idle
- Launch Control
- Traction Control
- Anti-Lag
- Dual Knock Control
- Trans Brake Control
- Race Timer
- Multi Stage Fuel Injection
- Multi-level Engine Protection
- 6 Stage Nitrous Control
- 4-sensor variable cam control
- Intake Air Bleed Control
- Flat Shift Control
- Shock Travel & Ride Height Control
- Advanced Torque Management
- On-board Wi-Fi
- On-board datalogging (128MB)
AUTOMATIC TRANSMISSION CONTROL
- Ford AODE/4R70W
- GM 4L60E
- GM 4L80E
- Toyota A340E
- Lenco
- Liberty
Specifications
- Analog Voltage Inputs (AVI) 11
- Differential Engine Position Inputs 2 (Trigger and Home)
- Digital Pulsed Inputs (DPI) 0
- Synchronized Pulsed Inputs (SPI) 6
- Knock Sensor Inputs 2
- On-board Wideband Controller 1 x NTK/LSU 4.9
- Injection 8 (peak and hold)
- Ignition 8
- Ignition Switch Input 1
- Engine Control Relay output 0
- Total Digital Pulsed Outputs (DPO) 6
- Half Bridge Outputs (HBO) 6 8A
- On-Board PDM YES
- 25A High Current Outputs (HCO) 4
- CAN Bus Networks 2
- MAP sensor Internal (4 BAR)
- Inertia / G-Sensor YES
- USB 2.0 USB-C
- Low Power Up via Cable YES
- Wi-Fi YES
- Compatible with Haltech Connect App YES
- Anti-Lag/Rotational Idle YES
- Boost Control 4D Closed Loop
- Closed Loop O2 Control Dual
- CO2 Control YES
- Drive-By-Wire Throttle Dual
- Engine Protection Multi-Level
- Flat Shift Support Advanced
- Flex Fuel YES
- Intake Air Bleed Control YES
- Knock Control Dual
- Launch Control YES
- Long Term Learning Up to 4D
- Nitrous Control Stages Up to 6
- Race Timer YES
- Rolling Anti-Lag YES
- Shock Travel & Ride Height YES
- Torque Management (Driveshaft and Engine RPM Targeting) YES
- Traction Control YES
- Trans Brake YES
- Tuning Table Resolution 32x32x8 4D
- Variable Cam Control Up to 4
- Onboard storage 128MB
