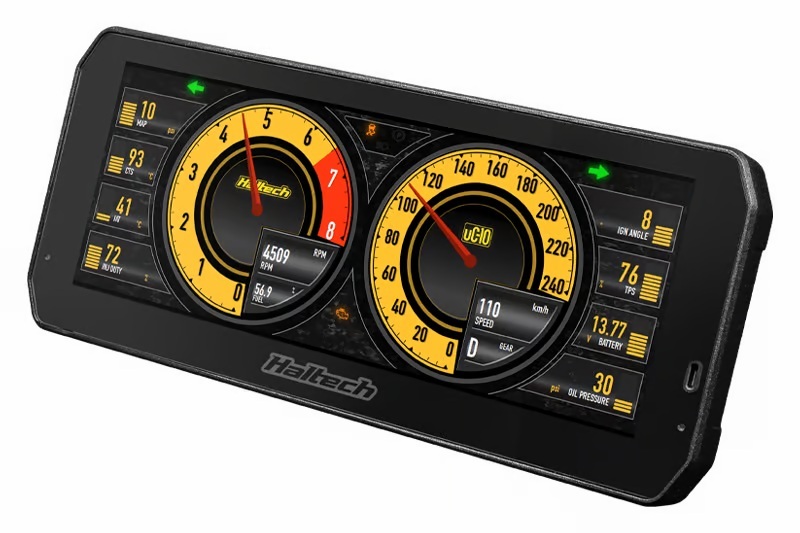

Take full control of your vehicle's data with the Haltech uC-10 Display Dash. Featuring a crisp, clear, and full-colour screen, the uC-10 display is now fully customisable using Haltech's powerful and intuitive NSP software. Allowing you to design your own screen layouts, arrange gauges, and display the data you want to see, exactly how you want to see it.

Versatility is central to the uC-10. It offers wide compatibility with Haltech CAN, OBD2, and a host of popular aftermarket ECUs, or it can be wired in as a complete stand-alone unit. This ensures seamless integration into a wide range of vehicles and setups. The uC-10 also offers extensive I/O capacity, making it an ideal central data hub or an I/O expander in an existing Haltech environment.

Overview:

Full Screen Customisation:

• Design and configure your own display layouts with Haltech's NSP software.

Broad Compatibility:

• Haltech CAN and OBDII ready - (Optional OBDII to CAN cable required for OBDII Plug and Play compatibility (HT-135003)

Plug'n'Play compatible with the following aftermarket ECU brands:

• Hondata
• Link G4
• MaxxECU
• Microtech
• MoTeC M1 Series
• MoTeC Hundred Series (M400, M600, M800 gold box ECUs)
• Syvecs

Display:

• Full-colour, optically-bonded TFT screen with a 1280 x 480 resolution and 600+ lumens.

Viewing Angle:

• 70-degree minimum viewing angle (vertical and horizontal).

Protection:

• IP64 rated (Dust-tight and protected against water splashes).

Data Logging:

• 512MB of on-board looped data logging.

Odometer:

• 6-digit odometer.

Inputs & Outputs:

• 10 x user-configurable Analogue Voltage Inputs (AVIPs)
• 4 x user-configurable Digital Pulsed Outputs (DPOs)
• 4 x user-configurable Switched Pulsed Inputs (SPIs)
• 1 x dedicated Tacho Input
• 1 x dedicated alternator excite

Sensors:

• 2 x Ambient light sensors.
