Images may be for reference only
Product Details
| Part Number: | RST-AZE-X129_2 |
| Brand: | Rev9Power |
| Location: | Front and Rear |
| Position: | Left and Right (Driver and Passenger) |
| Front Spring Rate: | 8K |
| Rear Spring Rate: | 8K |
| Front Adjustable Camber: | Yes |
| Rear Adjustable Camber: | No |
| Dampening Adjustment Levels: | 32 Levels |

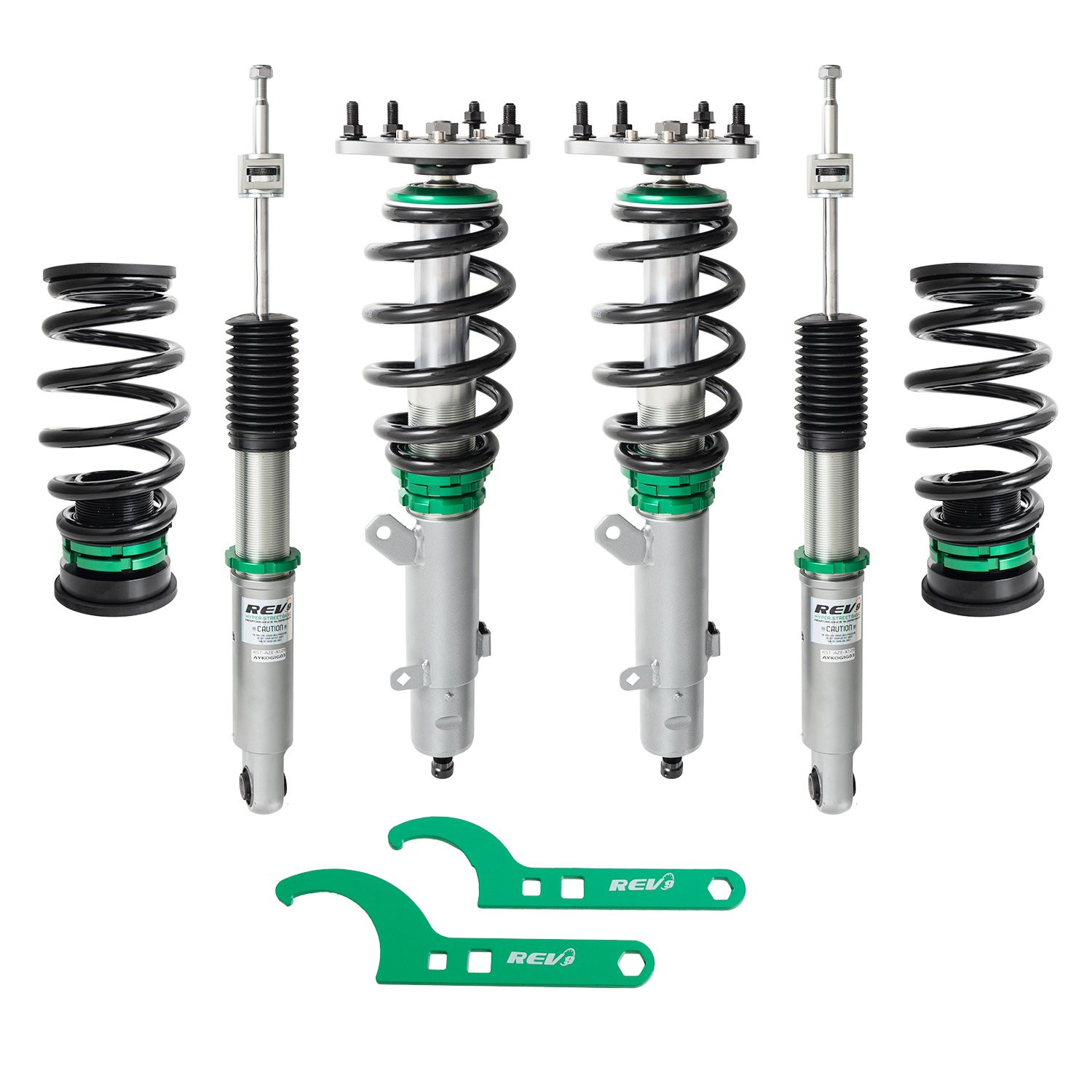

Take your vehicle’s handling to the next level with the REV9 Hyper-Street 3 Coilover Kit. Engineered specifically for the Honda CR-V (RS) 2023-2026, this premium upgrade introduces race-inspired Inverted Front Struts alongside our proven 32-level damping adjustments. Whether you are daily driving or carving canyon roads, the Hyper-Street 3 balances an aggressive drop with refined ride comfort.
The Inverted Shock Advantage:
Traditional coilovers place the heavy shock body at the bottom (attached to the wheel). The Hyper-Street 3 flips the script by mounting the shock body to the chassis.
- Sharper Steering Response: By flipping the shock upside down, we significantly reduce unsprung weight. Your suspension reacts instantly to road imperfections because the wheel assembly is lighter.
- Zero Structural Flex: The massive outer casing eliminates strut deflection under extreme cornering loads, keeping your alignment precise when pushing hard.
- Optimized Heat Dissipation: Larger internal oil capacity handles heat better, keeping your dampening stable, predictable, and fade-free.
Key Features:
- Advanced Inverted Mono-Tube Front Struts: Heavy-duty strength paired with a low repulsive force to retain premium ride comfort on lowered vehicles.
- 32-Level Damping Control: Click-adjustable precise valving lets you easily tune your ride from street-compliant to track-stiff.
- Independent Ride Height Adjustability: Fully adjustable lower mounts allow you to drop your vehicle without sacrificing spring travel or pre-load.
- Lightweight Aluminum Hardware: High-strength aluminum collars and brackets shed weight without compromising structural integrity.
- [Premium Front Top Mounts / Pillow Ball Camber Plates]: Includes integrated aluminum top mounts for crisp steering feedback and personalized alignment tuning. (Note: Change to "Reuses factory top mounts" if applicable to this specific chassis)
- *Front Shocks - Inverted
- *Rear Shocks - Traditional Upright
Specifications
Front:
- Top Mount: Yes, Camber Plate w/ Pillow Ball
- Spring Rate: 8 kg/mm (448 lbs/inch)
- Spring Length: 200 mm (7.87 inch)
- Spring Inner Diameter: 62 mm (2.44 inch)
- Shock Type: Inverted Mono-Tube
Rear:
- Top Mount: No, Re-use Factory Top Mount
- Spring Rate: 8 kg/mm (448lbs/inch)
- Spring Length: 180 mm (7.09 inch)
- Spring Inner Diameter: 62 mm (2.44 inch)
- Shock Type: Standard Mono-Tube
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2023 | Honda | CR-V | EX |
| 2023 | Honda | CR-V | EX-L |
| 2023 | Honda | CR-V | Hybrid Sport |
| 2023 | Honda | CR-V | Hybrid Sport Touring |
| 2023 | Honda | CR-V | LX |
| 2024 | Honda | CR-V | EX |
| 2024 | Honda | CR-V | EX-L |
| 2024 | Honda | CR-V | Hybrid Sport |
| 2024 | Honda | CR-V | Hybrid Sport Touring |
| 2024 | Honda | CR-V | Hybrid Sport-L |
| 2024 | Honda | CR-V | LX |
| 2025 | Honda | CR-V | EX |
| 2025 | Honda | CR-V | EX-L |
| 2025 | Honda | CR-V | Hybrid Sport |
| 2025 | Honda | CR-V | Hybrid Sport Touring |
| 2025 | Honda | CR-V | Hybrid Sport-L |
| 2025 | Honda | CR-V | LX |
| 2025 | Honda | CR-V | e:FCEV |
| 2026 | Honda | CR-V | EX |
| 2026 | Honda | CR-V | EX-L |
| 2026 | Honda | CR-V | Hybrid Sport |
| 2026 | Honda | CR-V | Hybrid Sport Touring |
| 2026 | Honda | CR-V | Hybrid Sport-L |
| 2026 | Honda | CR-V | Hybrid TrailSport |
| 2026 | Honda | CR-V | LX |
| 2026 | Honda | CR-V | e:FCEV |
