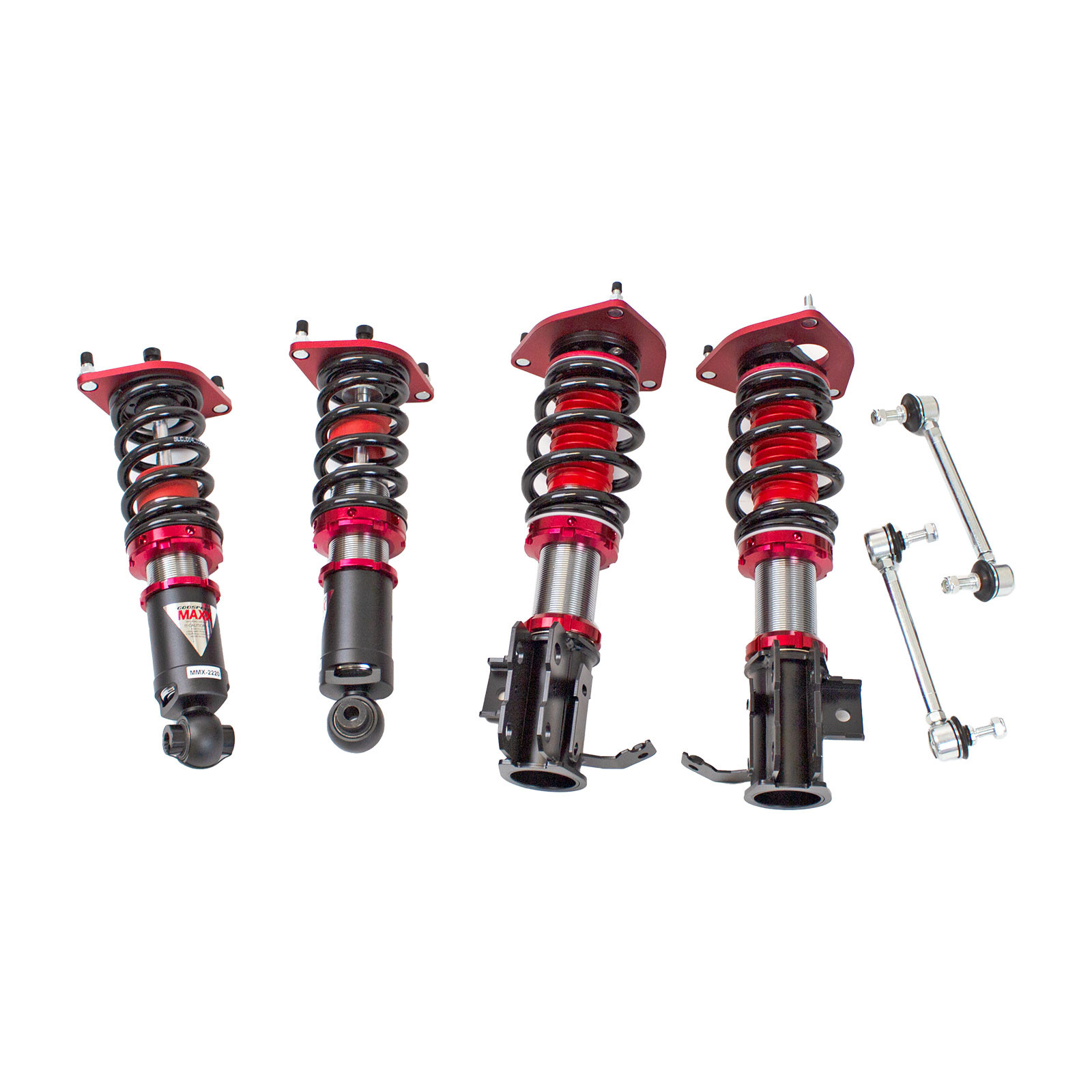

Godspeed Project 13-20 BRZ/FRS/86 MAXX Coilovers
Part Number: MMX2220-B

Images may be for reference only

Godspeed Project 13-20 BRZ/FRS/86 MAXX Coilovers
Part Number: MMX2220-B

Be the first to review!
Retail: $990.00
$891.00 & Free Shipping
Save: $99.00 (10%)

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.


Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 2.5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 1782 reward points. Learn More


Out of Stock
Enter your email address to be notified when it is back in stock.

Product Details

Part Number: MMX2220-B
Brand: Godspeed Project
Front Spring Rate: 10K
Rear Spring Rate: 12K
Front Adjustable Camber: Yes
Rear Adjustable Camber: No
Dampening Adjustment Levels: 40 Levels

The Godspeed Project MAXX coilover for 2013-2020 Subaru BRZ (ZC6) is for the tuners that want a track oriented setup that also provides daily commute comfort. With 40 levels of damping valve adjustment, you can easily adjust from stiff to soft simply by twisting the knob. Featuring mono-tube design with large capacity 52 mm dia. JIS seamless carbon steel shock body filled with IP F.A. 5W damper oil with properly valved 44 mm internal pistons to endurance competitiveness on a track course or daily spirited driving on public road. Cold wound springs are made from high tensile SAE9252 steel to ensure durability. Vehicle ride heights are adjusted with lower brackets to offer maximum shock travel in order to provide comfort compared to lowering springs alone. Mostly billet aluminum hardware accessories are used for its weight saving property in order to reduced overall weight of the coil-over system yet remain durable. All parts are replaceable and most importantly shock absorbers can be rebuild for customization or simply purchase replacement cartridge without spending too much for complete new coil-over system. You will experience quicker response times, improved bump absorption and increase grip to increase the safety when pushing your car to the limit!

Features:
  • 40 precise levels of damper adjustment
  • Mono-tube Design With Anodized Shock Body
  • Lightweight aluminum shock components and T7075 forged aluminum / carbon steel brackets.
  • 52 mm carbon steel shock body with a 44 mm internal piston.
  • Independent ride height and spring pre-load adjustments.
  • Italian IP F.A made shock oil with a high viscosity index.
  • Front camber adjustable plates are included(whereas applicable)
  • Full Length Adjustable, Independent Ride Height And Spring Tension Adjustment; Mono-Tube Shock With 40 Precise Levels of Damping Force Adjustment; Corresponds to Every Driving Scene From the Street To The Track
  • Large Capacity 52mm Steel Shock Body With Anti-Corrosion Coating; Aluminum And Steel Hardware Accessories; SAE9252 Steel Performance Springs;
  • Italian IP F.A. Made Shock Oil Provides High Viscosity Index To Withstand Intense Track Usage And Great For Everyday Driving.
  • Shock Absober Can Be Replaced When Worn Out, Replacement Parts Are Avaialble.; Full 1 Year Limited Warranty From Date Of Purchase, Parts Only
Specifications:
  • Damping Levels: 40-Level
  • Height Adjustment: Yes
  • Front Spring Rate: 8 kg/mm (448 lbs/inch)
  • Rear Spring Rate: 10 kg/mm (560 lbs/inch)
  • Front Spring Length: 150mm
  • Rear Spring Rate: 140mm
  • Front Top Mount: Yes, Pillow Ball Camber Plate
  • Rear Top Mount: Yes, Standard Type
  • Front Spring Inner Diameter: 62mm (2.44 inch)
  • RearSpring Inner Diameter: 62mm (2.44 inch)
Note: Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.

Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Scion FR-S
2013 Scion FR-S Base
2014 Scion FR-S Base
2015 Scion FR-S Base
2016 Scion FR-S Base
Subaru BRZ
2013 Subaru BRZ Limited
2014 Subaru BRZ Limited
2015 Subaru BRZ Limited
2016 Subaru BRZ Limited
2017 Subaru BRZ Limited
2018 Subaru BRZ Limited
2019 Subaru BRZ Limited
2020 Subaru BRZ Limited
2013 Subaru BRZ Premium
2014 Subaru BRZ Premium
2015 Subaru BRZ Premium
2016 Subaru BRZ Premium
2017 Subaru BRZ Premium
2018 Subaru BRZ Premium
2019 Subaru BRZ Premium
2015 Subaru BRZ Series.Blue
2019 Subaru BRZ Series.Gray
2016 Subaru BRZ Series.HyperBlue
2017 Subaru BRZ Series.Yellow
2018 Subaru BRZ TS
2020 Subaru BRZ TS
Toyota 86
2017 Toyota 86 Base
2018 Toyota 86 Base
2019 Toyota 86 Base
2020 Toyota 86 Base
2018 Toyota 86 GT
2019 Toyota 86 GT
2020 Toyota 86 GT
2020 Toyota 86 Hakone Edition
2017 Toyota 86 Special Edition
2019 Toyota 86 TRD Special Edition
