Product Details
| Part Number: | 934173-5003S |
| Brand: | Garrett Turbos |
| Turbo Flange: | T4 |
| Exhaust Housing: | .85 A/R |
| Turbine Discharge Flange: | V-Band |
| CARB Approved: | No |

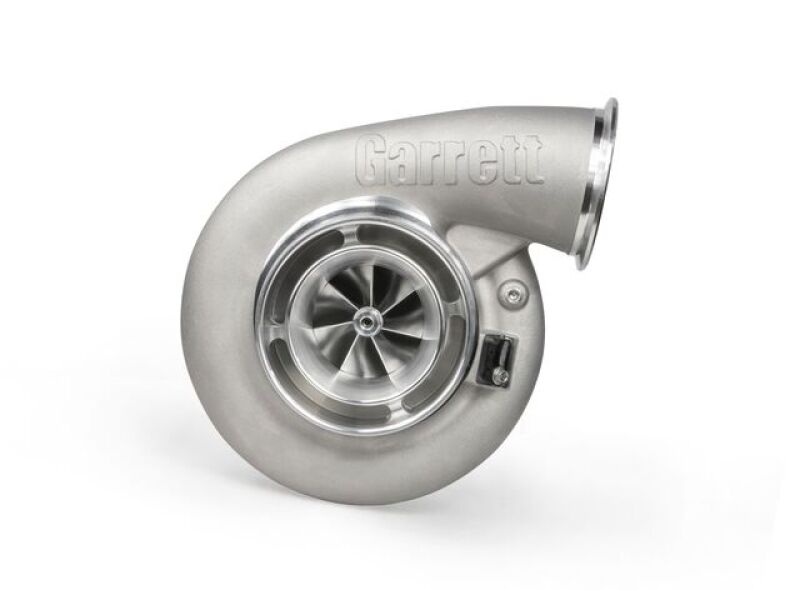

The Garrett G-XRace GXR45-67 67mm Super Core is engineered for high-performance turbocharging applications. Designed to deliver exceptional airflow and efficiency, this turbo core features a 67mm compressor wheel that enhances boost response and power output. Built with precision manufacturing standards, it is suitable for aftermarket upgrades and racing vehicles seeking increased horsepower and torque. The core's robust construction ensures durability under demanding conditions, making it ideal for motorsports enthusiasts and professional tuners alike. Please note that this part requires CARB acknowledgment and is not CARB-approved, emphasizing its use in non-California emissions jurisdictions. The G-XRace series is known for its advanced aerodynamics and reliable performance, making it a popular choice for those seeking to optimize their turbocharged engine's capabilities.
Features:
- Compressor wheel diameter: 67mm for optimal airflow and boost response
- High-performance design tailored for racing and aftermarket applications
- Robust construction ensures durability under intense conditions
- Requires carb acknowledgment; not CARB-approved
- Designed by Garrett for reliable and efficient turbocharging performance
- XBoost Technology increases power and performance
- Enhanced pressure ratio capability and higher boost pressure
- Increased efficiency at high flow rates
- Lower intake temperature
- 67.9mm Compressor Inducer | 102mm exducer
- Lightweight aluminum backplate
- Twin-scroll T4 and V-band turbine inlet flanges are available to meet the needs of racers with different engines and manifold designs
- Approved for use in drag racing classes with compressor wheel inducer limits of 67.9. Please verify class rules before purchasing
Engine Characteristics
- Min HP: 725
- Max HP: 1475
- Min Displacement (L): 2.0
- Max Displacement (L): 8.0
Compressor Wheel Specs
- Compressor Exducer (mm): 102
- Compressor Wheel Mat: Forged, Fully Machined
- Compressor A/R: .85
Turbine Wheel Specs
- Turbine Inducer (mm): 89
- Turbine Exducer (mm): 82
- Turbine Trim: 84
- Turbine Wheel Mat: Inconel
Turbochargers
- Product Line: G-XRace
- Frame Size: 45
- Rotation: Standard
- Cooling: Oil & Water Cooled
- Wastegate: External
- Bearing: Ceramic Dual Ball Bearing
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
