Product Details
| Part Number: | 934173-5001S |
| Brand: | Garrett Turbos |
| Turbo Flange: | T4 |
| Exhaust Housing: | .85 A/R |
| Turbine Discharge Flange: | V-Band |
| CARB Approved: | No |

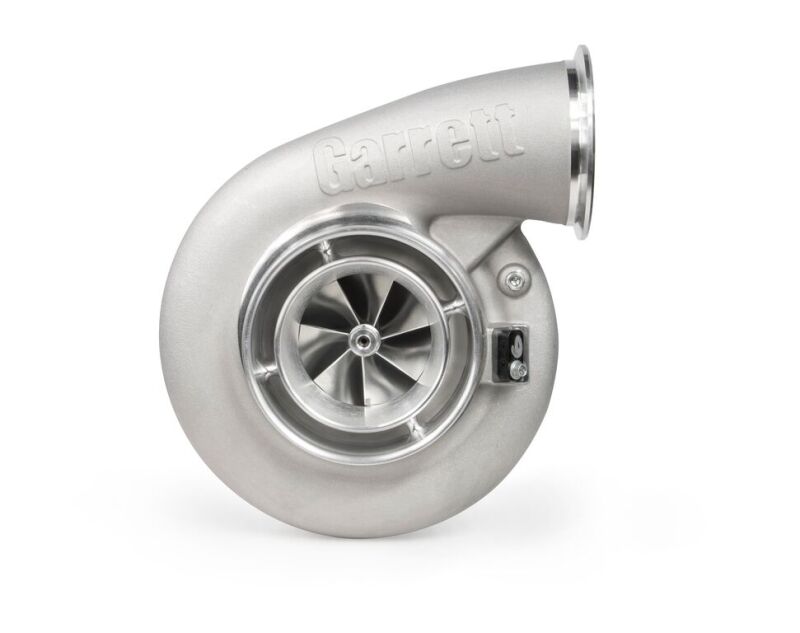

The Garrett G-XRace GXR42-68 68mm Super Core is a high-performance turbocharger component designed for automotive enthusiasts seeking optimal power delivery. This super core features a 68mm turbine wheel, engineered for durability and efficiency during high-stress driving conditions. Constructed with precision and quality, it is suitable for custom turbo setups where enhanced airflow and responsiveness are desired. The G-XRace series is known for its reliable performance, making it an ideal choice for racing applications or high-performance street builds. The part is lightweight yet robust, ensuring minimal lag and maximum boost response under demanding conditions. Installation requires familiarity with turbo system modifications, and proper support is recommended for best results. As a non-CARB-approved component, it is intended for off-road or racing use where local regulations permit. The GXR42-68 super core is a critical upgrade for those aiming to boost their vehicle's horsepower and torque efficiently. Featuring Garrett's renowned engineering, this turbo core is a testament to quality and high-performance standards in the automotive aftermarket. Proper handling and installation are essential to ensure the safety and optimal operation of your turbo system. This part does not include additional accessories but is compatible with a range of Garrett turbocharger assemblies designed for maximum efficiency. Whether you're building a track-ready machine or upgrading your daily driver, the Garrett G-XRace GXR42-68 provides the performance edge needed for serious automotive enthusiasts.
Features:
- 68mm turbine wheel designed for high airflow and responsiveness
- Constructed with durable materials for reliable performance under demanding conditions
- Suitable for custom turbocharger setups and high-performance applications
- Lightweight design to minimize lag and enhance boost response
- Non-CARB approved but ideal for off-road and racing use
- XBoost Techology increases power and performance
- Enhanced pressure ratio capability and higher boost pressure
- Increased efficiency at high flow rates
- Lower intake temperature
- 68.9mm Compressor Inducer | 102mm exducer
- Lightweight aluminum backplate
- Twin-scroll T4 and V-band turbine inlet flanges are available to meet the needs of racers with different engines and manifold designs
- Approved for use in drag racing classes with compressor wheel inducer limits of 68.9. Please verify class rules before purchasing
Engine Characteristics
- Min HP: 650
- Max HP: 1400
- Min Displacement (L): 2.0
- Max Displacement (L): 7.0
Compressor Wheel Specs
- Compressor Exducer (mm): 68
- Compressor Wheel Mat: Forged, Fully Machined
- Compressor A/R: .85
Turbine Wheel Specs
- Turbine Inducer (mm): 82
- Turbine Exducer (mm): 75
- Turbine Trim: 84
- Turbine Wheel Mat: Inconel
Turbochargers
- Product Line: G-XRace
- Frame Size: 42
- Rotation: Standard
- Cooling: Oil & Water Cooled
- Wastegate: External
- Bearing: Ceramic Dual Ball Bearing
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
