Product Details
| Part Number: | 896053-5003S |
| Brand: | Garrett Turbos |
| Turbo Flange: | T25 |
| Exhaust Housing: | .55 A/R |
| Turbine Discharge Flange: | 5-Bolt External |
| CARB Approved: | No |

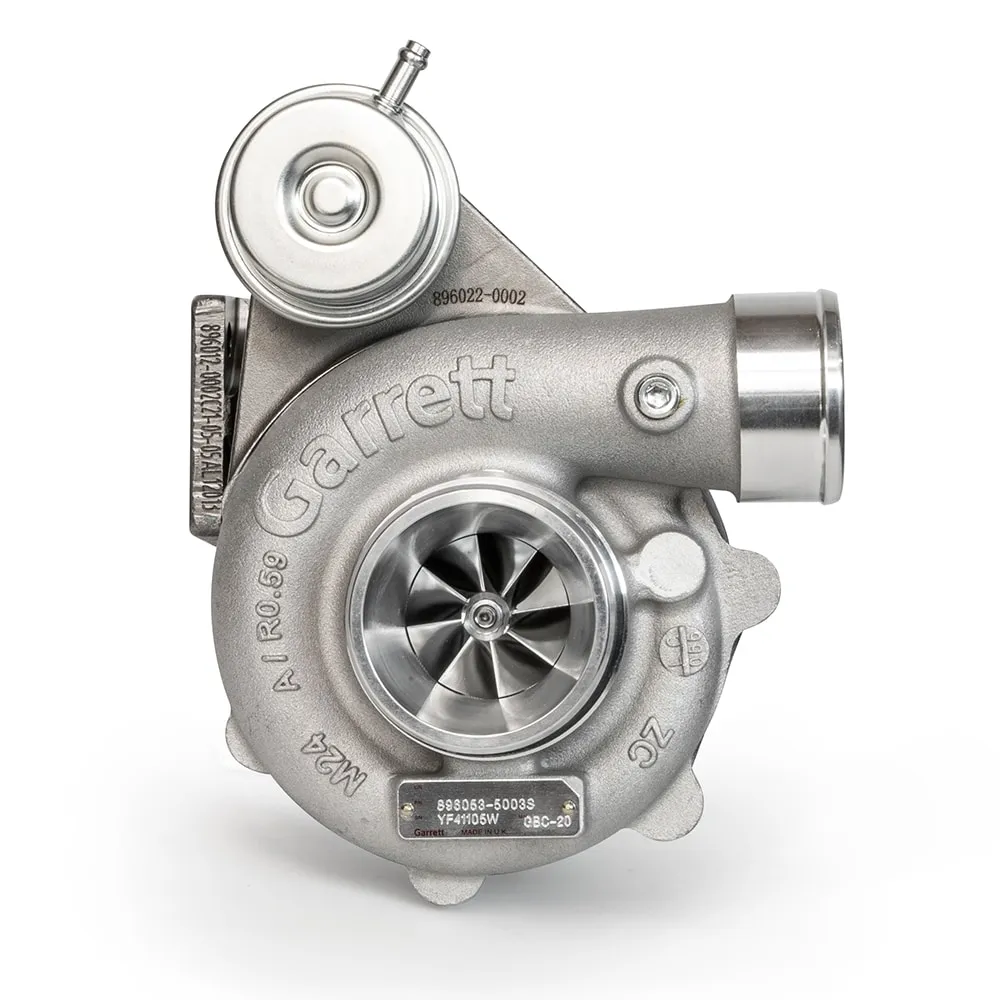

The Garrett GBC20-300 Club Line turbocharger offers reliable performance with a 0.55 air-to-vehicle ratio and features a T25 / 5-bolt flange connection for versatile installation options. Designed for automotive applications, this turbocharger is built with precision engineering to enhance engine efficiency and power output. Its internal wastegate provides consistent boost regulation, ensuring optimal engine performance across a range of driving conditions. The compact design makes it suitable for a variety of vehicle platforms, providing a balance of power and responsiveness. Crafted by Garrett, a leader in turbocharger technology, the GBC20-300 delivers durability and high-performance operation for enthusiasts seeking improved engine response and increased horsepower. It is important to note that this model is not CARB-approved, and acknowledgment of this status may be required for certain applications. The turbocharger is not suitable for air freight, and it conforms to industry standards for automotive parts, promising quality and reliability.
Features:
- 39MM Compressor Inducer | 52MM Compressor Exducer
- 17, 20, And 22 Outline Interchangeable
- 170 –300 Horsepower Capability
- Internal Wastegate Assembly With Calibrated Actuator
- Billet Compressor Wheel With Extended Tip Design For Higher Pressure Ratio Capability
- GTX Gen II Compressor Aero With Modern Turbine Wheel Aero
- Journal Bearing Rotating Group
- Engineered For Small Displacement Engines Including Powersports, Personal Watercraft And Automobiles
- Air-to-vehicle ratio: 0.55 for increased engine efficiency
- Flange type: T25 / 5-bolt for flexible installation options
- Internal wastegate: Provides consistent boost control
- Compact design: Suitable for a variety of vehicle platforms
- Durable construction: Ensures long-lasting performance from Garrett
Engine Characteristics
- Min HP: 170
- Max HP: 300
- Min Displacement (L): 0.8
- Max Displacement (L): 2.0
Compressor Wheel Specs
- Compressor Exducer (mm): 52
- Compressor Wheel Mat: Forged, Fully Machined
- Compressor A/R: 0.59
Turbine Wheel Specs
- Turbine Inducer (mm): 47
- Turbine Exducer (mm): 42
- Turbine Trim: 84
- Turbine Wheel Mat: Inconel
Turbochargers
- Product Line: GBC
- Frame Size: 20
- Rotation: Standard
- Cooling: Oil Cooled
- Wastegate: Internal
- Bearing: Journal Bearing
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
