Product Details
| Part Number: | 880696-5001S |
| Brand: | Garrett Turbos |
| Turbo Flange: | V-band |
| Exhaust Housing: | .72 A/R |
| Turbine Discharge Flange: | V-Band |
| CARB Approved: | No |

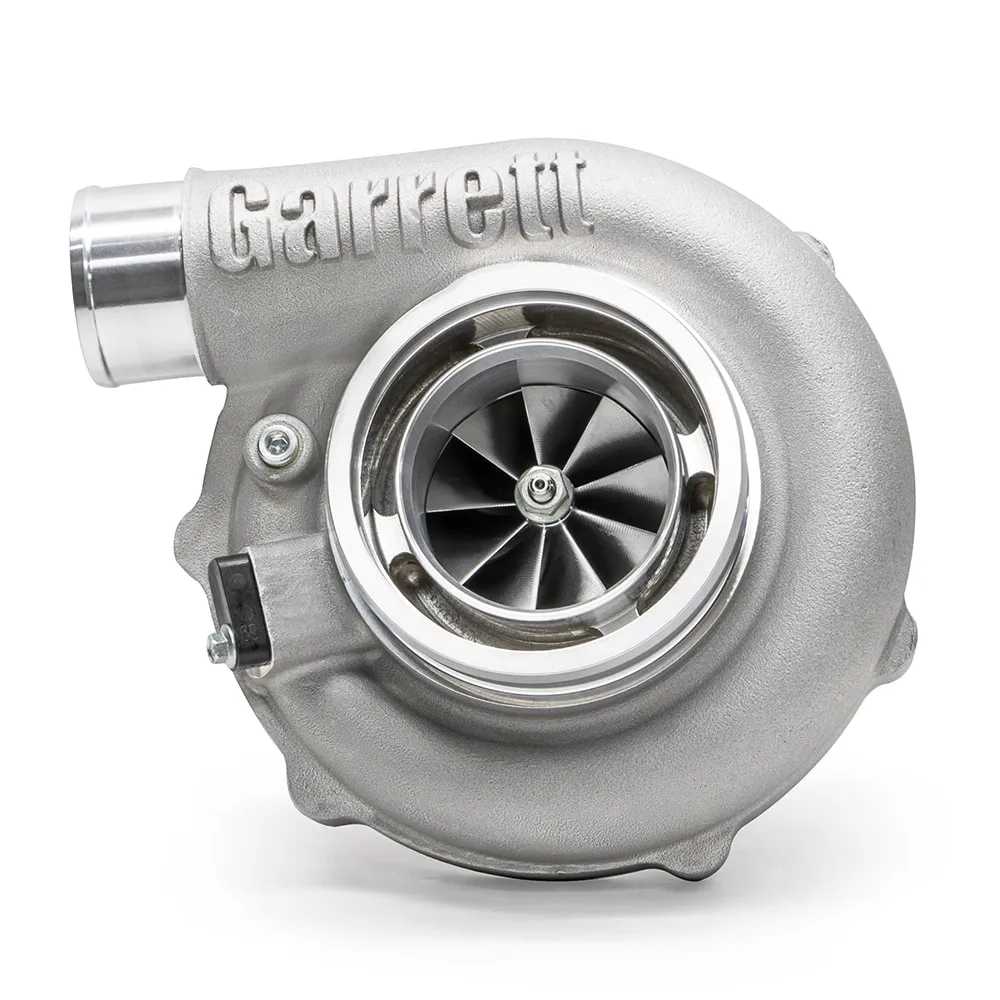

The Garrett G35-900 Super Core is a high-performance turbocharger designed for automotive enthusiasts seeking enhanced power and efficiency. Featuring a reverse rotation configuration, this turbocharger is optimized for specific engine setups, providing reliable boost delivery. Crafted with precision, the Garrett G35-900 Super Core ensures durability and consistent performance under demanding conditions. Its compact design allows for seamless integration into a variety of vehicle platforms, making it a versatile upgrade for both street and racing applications. The turbocharger is built with quality materials to withstand high temperatures and pressures, ensuring longevity and reduced maintenance needs. It is essential to note that this product requires CARB acknowledgment, emphasizing compliance with specific emission regulations where applicable. The Garrett G35-900 Super Core is not CARB-approved, but it can be used in non-regulated environments, providing flexibility for various tuning and modification projects.
Features:
- G-Series Compressor Aerodynamics For Maximum HP
- New Turbine Aero Provides Higher Flow And Efficiency
- 62MM Compressor Wheel Inducer
- 62MM Turbine Wheel Exducer
- 77% Maximum Compressor Efficiency
- 74% Maximum Turbine Efficiency
- Mar-M Alloy Turbine Wheel Rated Up To 1050° C
- High Efficiency Ceramic Ball Bearing Cartridge
- Oil Restrictor And Water Fittings Included
- Fully Machined Speed Sensor And Pressure Ports
- Reverse rotation design for optimized engine compatibility
- High-performance turbocharger for increased horsepower
- Compact and durable construction for long-lasting use
- Requires CARB acknowledgment for legal compliance in regulated areas
- Designed for automotive applications with reliable boost delivery
Engine Characteristics
- Min HP: 550
- Max HP: 900
- Min Displacement (L): 2.0
- Max Displacement (L): 5.5
Compressor Wheel Specs
- Compressor Exducer (mm): 76
- Compressor Wheel Mat: Forged, Fully Machined
- Compressor A/R: 0.72
Turbine Wheel Specs
- Turbine Inducer (mm): 68
- Turbine Exducer (mm): 62
- Turbine Trim: 84
- Turbine Wheel Mat: Mar-M
Turbochargers
- Product Line: G-Series
- Frame Size: 35
- Rotation: Reverse
- Cooling: Oil & Water Cooled
- Wastegate: External
- Bearing: Ceramic Dual Ball Bearing
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
