Product Details
| Part Number: | 880695-5001S |
| Brand: | Garrett Turbos |
| Turbo Flange: | V-band |
| Exhaust Housing: | .72 A/R |
| Turbine Discharge Flange: | V-Band |
| CARB Approved: | No |

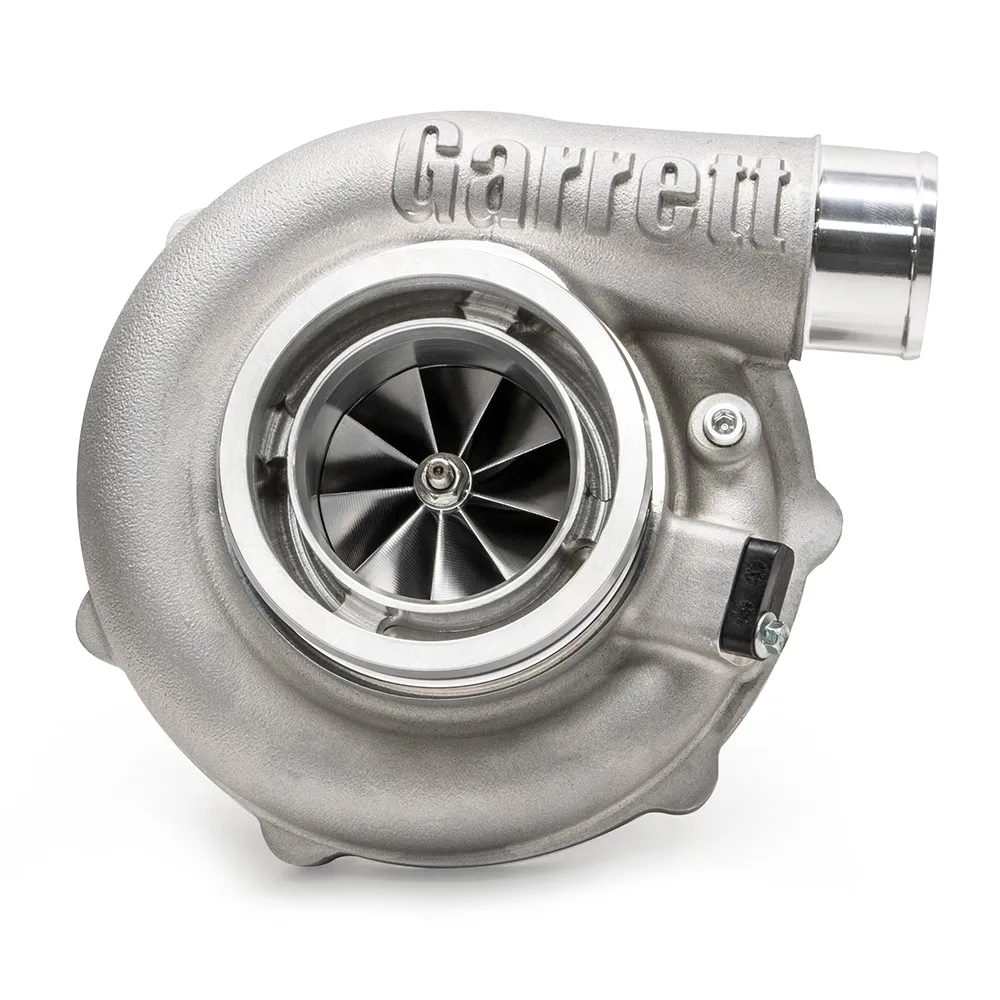

The Garrett G35-900 Super Core turbocharger is designed to deliver reliable performance in a variety of automotive applications. This turbocharger features a standard rotation design, optimized for consistent airflow and enhanced engine efficiency. Built with high-quality materials, it ensures durability and long-lasting operation under demanding conditions. The G35-900 Super Core is suitable for engines requiring a robust turbocharging solution, providing improved power output and responsiveness. Its compact design allows for straightforward installation within existing engine compartments, making it an excellent choice for both performance upgrades and OEM replacements. The turbocharger is engineered to meet stringent standards, ensuring dependable operation without the need for additional LTL freight shipping, making it a convenient option for various distribution channels.
Features:
- G-Series Compressor Aerodynamics For Maximum HP
- New Turbine Aero Provides Higher Flow And Efficiency
- 62MM Compressor Wheel Inducer
- 62MM Turbine Wheel Exducer
- 77% Maximum Compressor Efficiency
- 74% Maximum Turbine Efficiency
- Mar-M Alloy Turbine Wheel Rated Up To 1050° C
- High Efficiency Ceramic Ball Bearing Cartridge
- Oil Restrictor And Water Fittings Included
- Fully Machined Speed Sensor And Pressure Ports
- Standard rotation design for smooth airflow and engine performance
- Durable construction with high-quality materials for long-lasting use
- Optimized for automotive applications requiring reliable turbocharging
- Compact and easy to install within existing engine layouts
- Designed to enhance power output and engine responsiveness
Engine Characteristics
- Min HP: 550
- Max HP: 900
- Min Displacement (L): 2.0
- Max Displacement (L): 5.5
Compressor Wheel Specs
- Compressor Exducer (mm): 76
- Compressor Wheel Mat: Forged, Fully Machined
- Compressor A/R: 0.72
Turbine Wheel Specs
- Turbine Inducer (mm): 68
- Turbine Exducer (mm): 62
- Turbine Trim: 84
- Turbine Wheel Mat: Mar-M
Turbochargers
- Product Line: G-Series
- Frame Size: 35
- Rotation: Standard
- Cooling: Oil & Water Cooled
- Wastegate: External
- Bearing: Ceramic Dual Ball Bearing
