Product Details
| Part Number: | 880694-5003S |
| Brand: | Garrett Turbos |
| Turbo Flange: | V-band |
| Exhaust Housing: | .72 A/R |
| Turbine Discharge Flange: | V-Band |
| CARB Approved: | No |

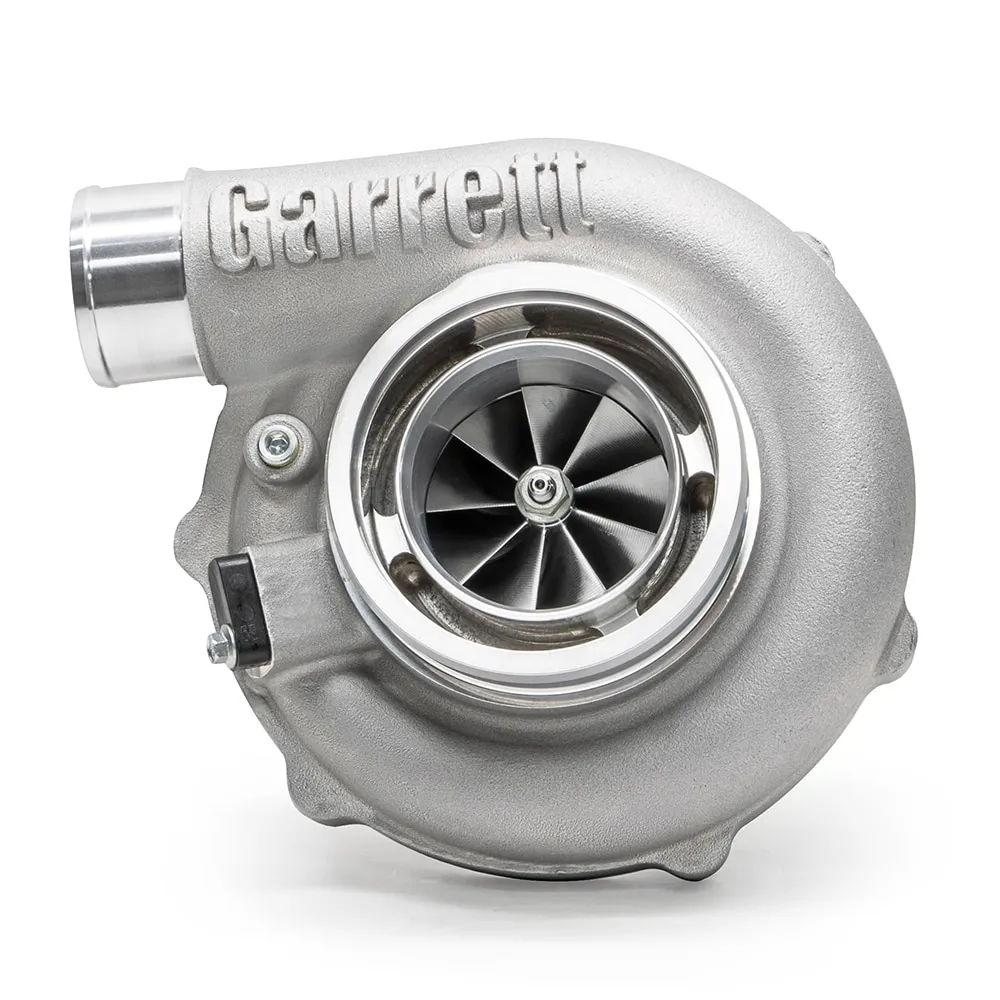

The Garrett G30-900 Super Core features a reverse rotation design, making it suitable for specific automotive applications that require clockwise or counterclockwise turbo rotation. Manufactured by Garrett, this turbocharger core is engineered for high performance and durability in demanding engine environments. Its design ensures optimal airflow management, contributing to improved engine efficiency and power output. The Super Core is ideal for custom setups and professional installations where a reliable, high-quality turbo component is essential.
Constructed with precision, the Garrett G30-900 Super Core offers a robust build that withstands high operating temperatures and pressures. The component's compact size and lightweight design facilitate easier installation and integration into a variety of vehicle configurations. As a non-CARB-approved model, it is suitable for applications outside California emissions requirements, and its air freight is not restricted, easing shipping logistics.
Designed with performance and reliability in mind, this turbo core requires acknowledgment of its carb status and complies with certain automotive standards. It does not include LTL freight requirements, making it easier to handle and ship. Whether used for upgrades, repairs, or custom racing setups, the Garrett G30-900 Super Core is a top choice for professional mechanics and automotive enthusiasts seeking a high-quality turbo component that delivers consistent performance.
Features:
- G-Series Compressor Aerodynamics For Maximum HP
- New Turbine Aero Provides Higher Flow And Efficiency
- 62MM Compressor Wheel Inducer
- 55MM Turbine Wheel Exducer
- 77% Maximum Compressor Efficiency
- 74% Maximum Turbine Efficiency
- Mar-M Alloy Turbine Wheel Rated Up To 1050° C
- High Efficiency Ceramic Ball Bearing Cartridge
- Oil Restrictor And Water Fittings Included
- Fully Machined Speed Sensor And Pressure Ports
- Reverse rotation design for versatile installation options
- High-performance turbocharger core engineered for durability
- Compact and lightweight for easier installation
- Suitable for custom and professional automotive applications
- Does not require LTL freight handling for shipping
Engine Characteristics
- Min HP: 550
- Max HP: 900
- Min Displacement (L): 2.0
- Max Displacement (L): 3.5
Compressor Wheel Specs
- Compressor Exducer (mm): 76
- Compressor Wheel Mat: Forged, Fully Machined
- Compressor A/R: 0.72
Turbine Wheel Specs
- Turbine Inducer (mm): 60
- Turbine Exducer (mm): 55
- Turbine Trim: 84
- Turbine Wheel Mat: Mar-M
Turbochargers
- Product Line: G-Series
- Frame Size: 30
- Rotation: Reverse
- Cooling: Oil & Water Cooled
- Wastegate: External
- Bearing: Ceramic Dual Ball Bearing
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
