Product Details
| Part Number: | 880694-5002S |
| Brand: | Garrett Turbos |
| Turbo Flange: | V-band |
| Exhaust Housing: | .72 A/R |
| Turbine Discharge Flange: | V-Band |
| CARB Approved: | No |

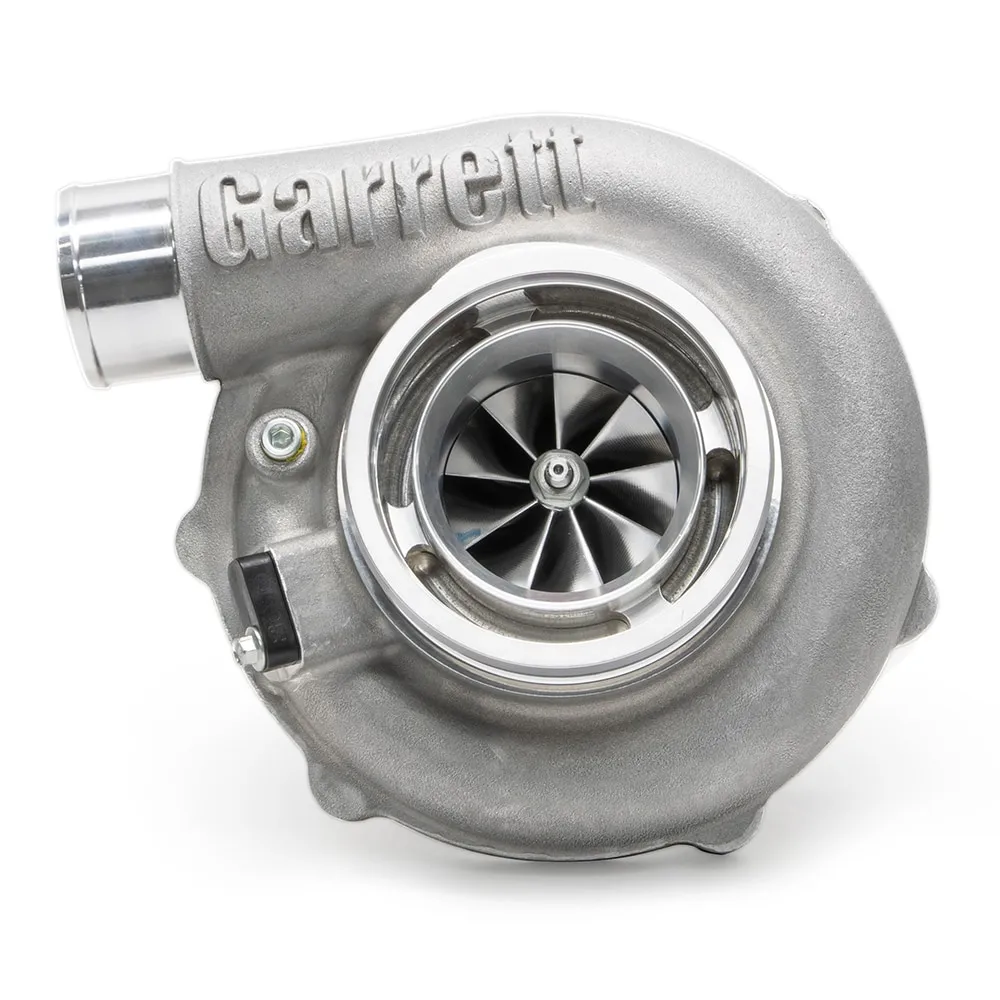

The Garrett G30-770 Super Core turbocharger is engineered to deliver exceptional performance for a variety of automotive applications. Designed with reverse rotation capabilities, this turbocharger enhances engine efficiency and responsiveness, making it suitable for specialized setups. Its robust construction ensures durability and reliable operation under demanding conditions. This model features a compact design that fits seamlessly into compatible engine configurations, providing a significant upgrade over stock components. The G30-770 Super Core is ideal for enthusiasts seeking increased horsepower and improved throttle response while maintaining compatibility with existing exhaust and intake systems.
Features:
- G-Series Compressor Aerodynamics For Maximum HP
- New Turbine Aero Provides Higher Flow And Efficiency
- 58MM Compressor Wheel Inducer
- 55MM Turbine Wheel Exducer
- 76% Maximum Compressor Efficiency
- 74% Maximum Turbine Efficiency
- Mar-M Alloy Turbine Wheel Rated Up To 1050° C
- High Efficiency Ceramic Ball Bearing Cartridge
- Oil Restrictor And Water Fittings Included
- Fully Machined Speed Sensor And Pressure Ports
- Reverse Rotation: Designed for specialized engine configurations that require reverse rotation turbochargers.
- High-Performance Design: Engineered to optimize airflow and boost pressure for increased horsepower.
- Durable Construction: Built with premium materials for long-lasting operation and reliability.
- Compact Size: Fits into a variety of engine bays without extensive modifications.
- Easy Integration: Compatible with existing exhaust and intake systems to simplify installation.
Engine Characteristics
- Min HP: 475
- Max HP: 770
- Min Displacement (L): 2.0
- Max Displacement (L): 3.5
Compressor Wheel Specs
- Compressor Exducer (mm): 71
- Compressor Wheel Mat: Forged, Fully Machined
- Compressor A/R: 0.72
Turbine Wheel Specs
- Turbine Inducer (mm): 60
- Turbine Exducer (mm): 55
- Turbine Trim: 84
- Turbine Wheel Mat: Mar-M
Turbochargers
- Product Line: G-Series
- Frame Size: 30
- Rotation: Reverse
- Cooling: Oil & Water Cooled
- Wastegate: External
- Bearing: Ceramic Dual Ball Bearing
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
