Product Details
| Part Number: | 880693-5002S |
| Brand: | Garrett Turbos |
| Turbo Flange: | V-band |
| Exhaust Housing: | .72 A/R |
| Turbine Discharge Flange: | V-Band |
| CARB Approved: | No |

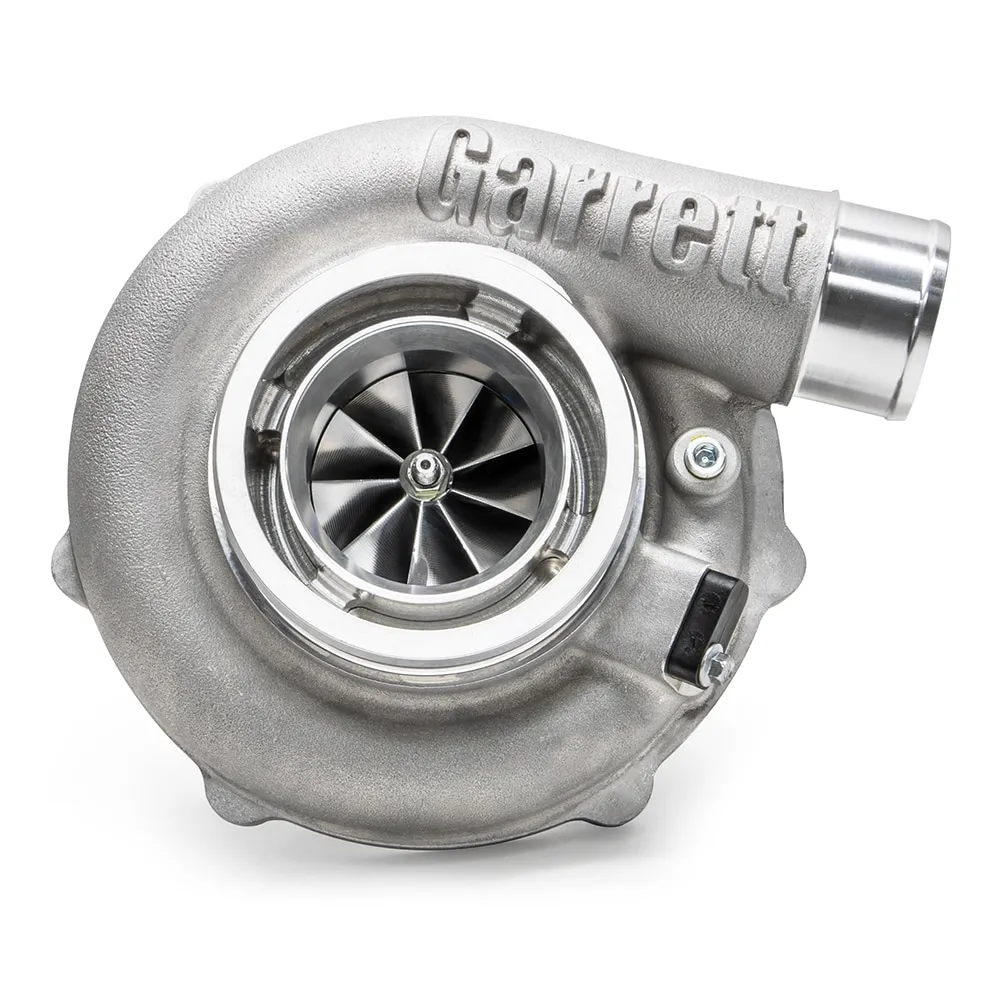

The Garrett G30-770 Super Core turbocharger is engineered for high-performance automotive applications, offering reliable power and efficiency. Designed with precision, this turbocharger features a standard rotation configuration, ensuring compatibility with a wide range of vehicles. Its robust construction and advanced aerodynamics deliver improved boost response and durability under demanding driving conditions. The G30-770 Super Core is ideal for enthusiasts seeking enhanced engine performance and longevity.
Constructed by Garrett, a leader in turbocharger technology, this model is built to meet the rigorous demands of modern engines. The turbocharger's compact design allows for straightforward installation without sacrificing performance. Its components are engineered to provide consistent airflow and boost pressure, contributing to optimal engine efficiency and power output. The G30-770 is also designed with ease of maintenance in mind, ensuring long-term reliability.
Please note that this turbocharger requires proper installation and adherence to safety protocols. It is not CARB-approved and should be used in applications where emissions compliance is not a primary concern. The G30-770 Super Core is a stock item, readily available for quick shipping and installation, making it a practical choice for both repair and upgrade projects. Whether upgrading your vehicle's performance or replacing a worn-out turbocharger, Garrett's G30-770 provides a dependable solution for automotive enthusiasts and professionals alike.
Features:
- G-Series Compressor Aerodynamics For Maximum HP
- New Turbine Aero Provides Higher Flow And Efficiency
- 58MM Compressor Wheel Inducer
- 55MM Turbine Wheel Exducer
- 76% Maximum Compressor Efficiency
- 74% Maximum Turbine Efficiency
- Mar-M Alloy Turbine Wheel Rated Up To 1050° C
- High Efficiency Ceramic Ball Bearing Cartridge
- Oil Restrictor And Water Fittings Included
- Fully Machined Speed Sensor And Pressure Ports
- Standard rotation configuration for compatibility with a wide range of vehicles
- Engineered by Garrett for high-performance durability and efficiency
- Compact design allows for straightforward installation
- Advanced aerodynamics for improved boost response and airflow
- Reliable construction designed for demanding driving conditions
- Easy to maintain, ensuring long-term operational reliability
- Not CARB approved, suitable for applications without emissions restrictions
- Stock item available for quick shipment and installation
Engine Characteristics
- Min HP: 475
- Max HP: 770
- Min Displacement (L): 2.0
- Max Displacement (L): 3.5
Compressor Wheel Specs
- Compressor Exducer (mm): 71
- Compressor Wheel Mat: Forged, Fully Machined
- Compressor A/R: 0.72
Turbine Wheel Specs
- Turbine Inducer (mm): 60
- Turbine Exducer (mm): 55
- Turbine Trim: 84
- Turbine Wheel Mat: Mar-M
Turbochargers
- Product Line: G-Series
- Frame Size: 30
- Rotation: Standard
- Cooling: Oil & Water Cooled
- Wastegate: External
- Bearing: Ceramic Dual Ball Bearing
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
