Product Details
| Part Number: | 880547-5024S |
| Brand: | Garrett Turbos |
| Turbo Flange: | V-band |
| Exhaust Housing: | .88 A/R |
| Turbine Discharge Flange: | V-Band |
| CARB Approved: | No |

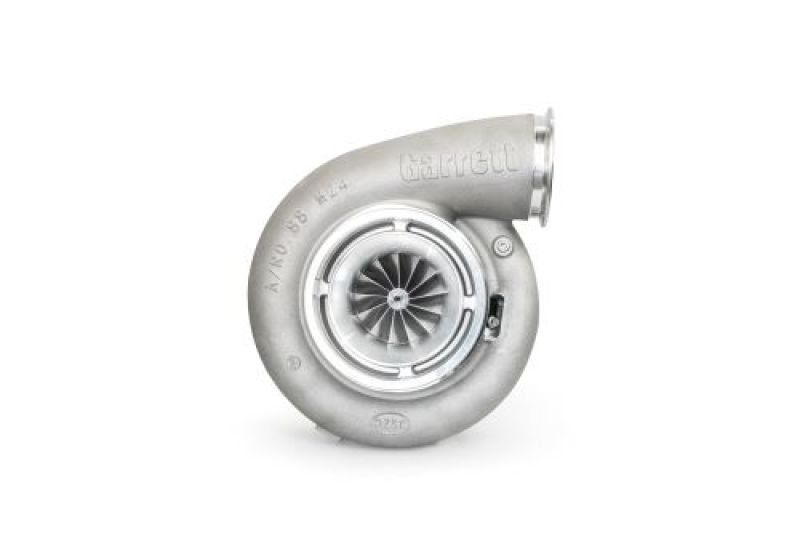

The Garrett G47-1650 80mm Super Core (Part #880547-5024S) is a high-performance turbocharger component designed for automotive applications. Crafted with precision engineering, this super core features an 80mm inducer diameter that provides enhanced airflow and boost capacity. Its robust construction ensures durability under demanding driving conditions, making it suitable for performance upgrades and custom builds. This component is an essential part of Garrett's turbocharger systems, providing reliable power delivery and efficiency. The G47-1650 Super Core is engineered to meet strict quality standards, ensuring consistent performance and longevity for your vehicle's forced induction setup. Designed for ease of installation, it integrates seamlessly into compatible turbocharger housings, offering an upgrade path for enthusiasts seeking improved engine output. This component is not CARB-approved but is ideal for off-road, racing, or other non-emissions-critical applications. Please note that it is a clearance item and may be subject to specific shipping restrictions. Trust Garrett's reputation for quality and innovation with this advanced turbocharger core, engineered to help maximize your vehicle*s performance potential.
Features:
- 80mm inducer diameter for increased airflow and boost capacity
- Precision-engineered for durability and consistent performance
- Designed for seamless integration into Garrett turbo systems
- Suitable for high-performance automotive applications
- Clearance item with specific shipping considerations
- High Flow, High Efficiency, GTX Gen II Comp Aero
- G-Series Turbine Aero Provides 20% Higher Flow And Efficiency (Compared To GTX47R)
- +9% Faster Spool (Estimated By Flow, Efficiency, And Inertia)
- 80MM Compressor Wheel Inducer | 109MM Compressor Exducer
- 88MM Turbine Wheel Exducer
- 74% Maximum Compressor Efficiency
- 75% Maximum Turbine Efficiency
- One-Piece Lightweight Aluminum Center Housing / Backplate
- Stainless Steel Turbine Housings
- High Efficiency Ceramic Ball Bearing Cartridge
- Fully Machined Speed Sensor And Pressure Ports
Engine Characteristics
- Min HP: 825
- Max HP: 1650
- Min Displacement (L): 2.5
- Max Displacement (L): 10.0
Compressor Wheel Specs
- Compressor Exducer (mm): 109
- Compressor Wheel Mat: Forged, Fully Machined
- Compressor A/R: 0.88
Turbine Wheel Specs
- Turbine Inducer (mm): 93
- Turbine Exducer (mm): 88
- Turbine Trim: 90
- Turbine Wheel Mat: Inconel
Turbochargers
- Product Line: G-Series
- Frame Size: 47
- Rotation: Standard
- Cooling: Oil Cooled
- Wastegate: External
- Bearing: Ceramic Dual Ball Bearing
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
