Product Details
| Part Number: | 877895-5005S |
| Brand: | Garrett Turbos |
| Turbo Flange: | V-band |
| Exhaust Housing: | .72 A/R |
| Turbine Discharge Flange: | V-Band |
| CARB Approved: | No |

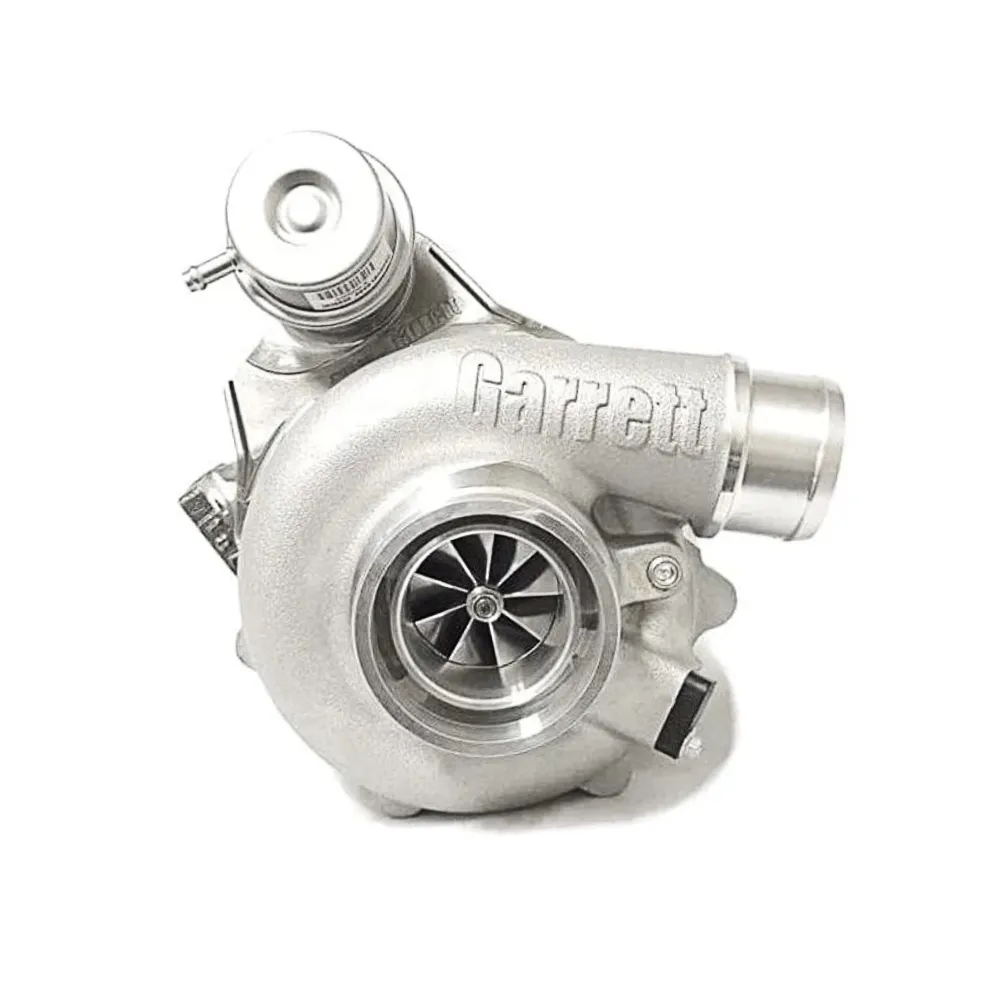

The Garrett G25-660 Turbocharger is engineered for high-performance automotive applications, offering reliable power and efficiency. Featuring a V-Band outlet connection, this turbocharger ensures a secure and quick installation, while the internal wastegate with a 0.72 A/R provides precise boost control for optimized engine performance. Designed for enthusiasts and professional tuners alike, the Garrett G25-660 delivers consistent durability and enhanced airflow for demanding driving conditions. Its compact size and robust construction make it suitable for a variety of turbocharged setups, ensuring excellent response and spool characteristics. This turbocharger is a critical component for maximizing engine output while maintaining durability over extended use.
Features:
- G-Series Compressor Aerodynamics For Maximum HP
- New Turbine Aero Provides Higher Flow And Efficiency
- 54MM Compressor Wheel Inducer
- 49MM Turbine Wheel Exducer
- 79% Maximum Compressor Efficiency
- 76% Maximum Turbine Efficiency
- Mar-M Alloy Turbine Wheel Rated Up To 1050° C
- 0.92 A/R With V-Band Turbine Housing Inlet Flange
- Assembled And Calibrated With a 0.5 Bar Actuator
- High Efficiency Ceramic Ball Bearing Cartridge
- Standard Rotation
- Oil Restrictor And Water Fittings Included
- Fully Machined Speed Sensor And Pressure Ports
- V-Band outlet connection for secure and easy installation
- Internal wastegate with 0.72 A/R for precise boost regulation
- High-performance Garrett design for enhanced airflow and response
- Compact size suitable for a range of turbocharged engines
- Durable construction for long-lasting performance
Engine Characteristics
- Min HP: 350
- Max HP: 660
- Min Displacement (L): 1.4
- Max Displacement (L): 3.0
Compressor Wheel Specs
- Compressor Exducer (mm): 67
- Compressor Wheel Mat: Forged, Fully Machined
- Compressor A/R: 0.70
Turbine Wheel Specs
- Turbine Inducer (mm): 54
- Turbine Exducer (mm): 49
- Turbine Trim: 84
- Turbine Wheel Mat: Mar-M
Turbochargers
- Product Line: G-Series
- Frame Size: 25
- Rotation: Standard
- Cooling: Oil & Water Cooled
- Wastegate: Internal
- Bearing: Ceramic Dual Ball Bearing
