Product Details
| Part Number: | 858161-5003S |
| Brand: | Garrett Turbos |
| Turbo Flange: | V-band |
| Exhaust Housing: | .70 A/R |
| Turbine Discharge Flange: | V-Band |
| CARB Approved: | No |

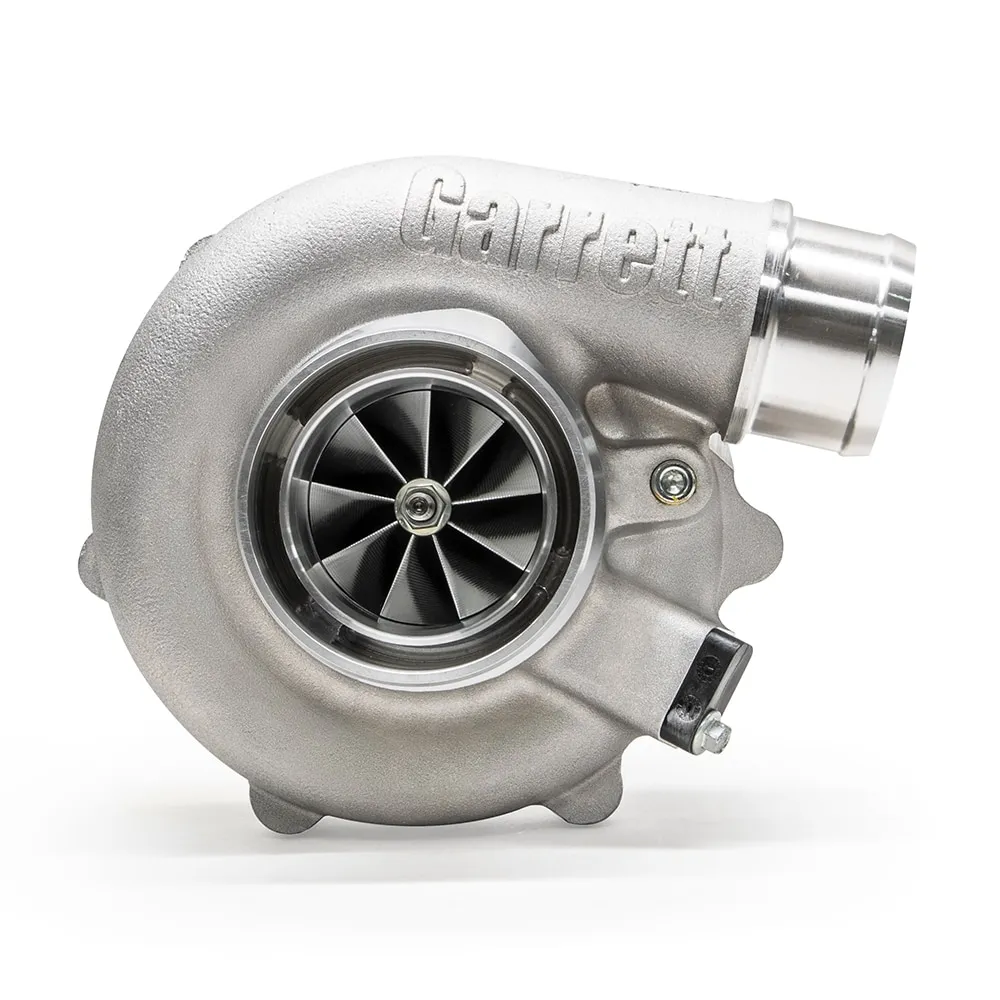

The Garrett G25-660 Super Core turbocharger is engineered for high-performance automotive applications, delivering reliable power and efficiency. Designed with a standard rotation configuration, this turbocharger enhances engine response and boosts overall vehicle performance. Its robust construction and precision engineering make it suitable for a wide range of turbocharged engines, providing a significant upgrade over stock components. The Garrett G25-660 Super Core is ideal for enthusiasts seeking improved acceleration and throttle response without extensive modifications.
Features:
- Standard rotation: Optimized for engines requiring a standard turbine flow direction.
- High durability: Built with quality materials to withstand demanding driving conditions.
- Efficient airflow: Designed to improve exhaust gas flow for increased power output.
- Easy installation: Compatible with various turbo systems, simplifying upgrades.
- Reliable performance: Engineered for consistent operation and longevity in automotive environments.
- G-Series Compressor Aerodynamics For Maximum HP
- New Turbine Aero Provides Higher Flow And Efficiency
- 54MM Compressor Wheel Inducer
- 49MM Turbine Wheel Exducer
- 79% Maximum Compressor Efficiency
- 76% Maximum Turbine Efficiency
- Mar-M Alloy Turbine Wheel Rated Up To 1050° C
- High Efficiency Ceramic Ball Bearing Cartridge
- Standard Rotation Configuration
- Oil Restrictor And Water Fittings Included
- Fully Machined Speed Sensor And Pressure Ports
Engine Characteristics
- Min HP: 350
- Max HP: 660
- Min Displacement (L): 1.4
- Max Displacement (L): 3.0
Compressor Wheel Specs
- Compressor Exducer (mm): 67
- Compressor Wheel Mat: Forged, Fully Machined
- Compressor A/R: 0.70
Turbine Wheel Specs
- Turbine Inducer (mm): 54
- Turbine Exducer (mm): 49
- Turbine Trim: 84
- Turbine Wheel Mat: Mar-M
Turbochargers
- Product Line: G-Series
- Frame Size: 25
- Rotation: Standard
- Cooling: Oil & Water Cooled
- Wastegate: External
- Bearing: Ceramic Dual Ball Bearing
