Product Details
| Part Number: | 858161-5002S |
| Brand: | Garrett Turbos |
| Turbo Flange: | V-band |
| Exhaust Housing: | .70 A/R |
| Turbine Discharge Flange: | V-Band |
| CARB Approved: | No |

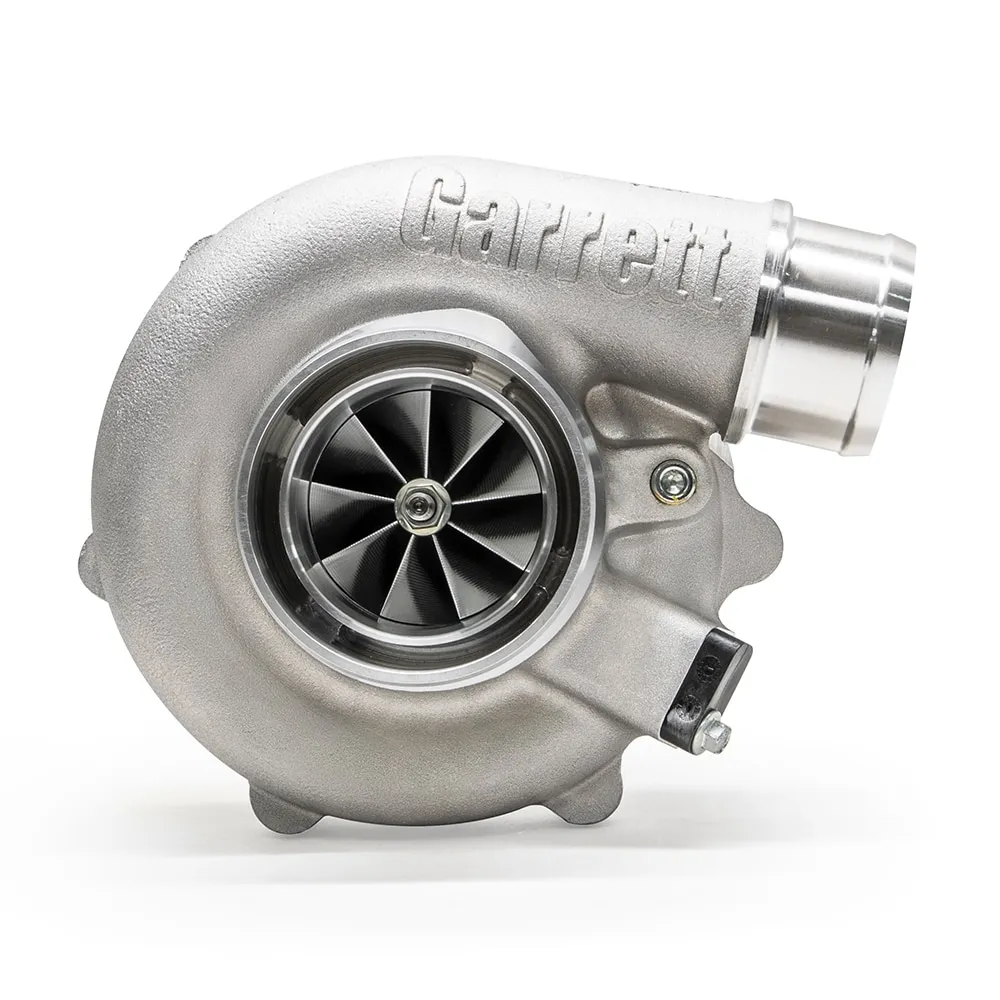

The Garrett G25-550 Super Core turbocharger is designed to deliver reliable performance in various automotive applications. Built with high-quality materials, this turbocharger features a durable construction that ensures longevity and consistent power output. Its standard rotation design makes it suitable for a range of vehicle setups, providing efficient spool-up and boost delivery for enhanced engine responsiveness. The G25-550 Super Core is ideal for enthusiasts seeking increased horsepower and torque without compromising engine stability.
Engineered for straightforward installation, this turbocharger integrates seamlessly into existing systems, offering a significant upgrade over stock components. Its compact size allows for flexible placement within tight engine bays, making it a versatile choice for custom builds and performance upgrades. The turbo's design emphasizes durability and efficiency, contributing to improved overall vehicle performance while maintaining compliance with necessary regulations.
Features: High-quality construction ensures durability and longevity. Standard rotation design suitable for various engine configurations. Compact size allows for flexible installation in tight spaces. Optimized for quick spool-up and boost delivery. Designed to enhance horsepower and torque for improved vehicle performance.
Features:
- G-Series Compressor Aerodynamics For Maximum HP
- New Turbine Aero Provides Higher Flow And Efficiency
- 48MM Compressor Wheel Inducer
- 49MM Turbine Wheel Exducer
- 80% Maximum Compressor Efficiency
- 76% Maximum Turbine Efficiency
- Mar-M Alloy Turbine Wheel Rated Up To 1050° C
- High Efficiency Ceramic Ball Bearing Cartridge
- Standard Rotation Configuration
- Oil Restrictor And Water Fittings Included
- Fully Machined Speed Sensor And Pressure Ports
Engine Characteristics
- Min HP: 300
- Max HP: 550
- Min Displacement (L): 1.4
- Max Displacement (L): 3.0
Compressor Wheel Specs
- Compressor Exducer (mm): 60
- Compressor Wheel Mat: Forged Fully Machined
- Compressor A/R: 0.70
Turbine Wheel Specs
- Turbine Inducer (mm): 54
- Turbine Exducer (mm): 49
- Turbine Trim: 84
- Turbine Wheel Mat: Mar-M
Turbochargers
- Product Line: G-Series
- Frame Size: 25
- Rotation: Standard
- Cooling: Oil & Water Cooled
- Wastegate: External
- Bearing: Ceramic Dual Ball Bearing
