Images may be for reference only

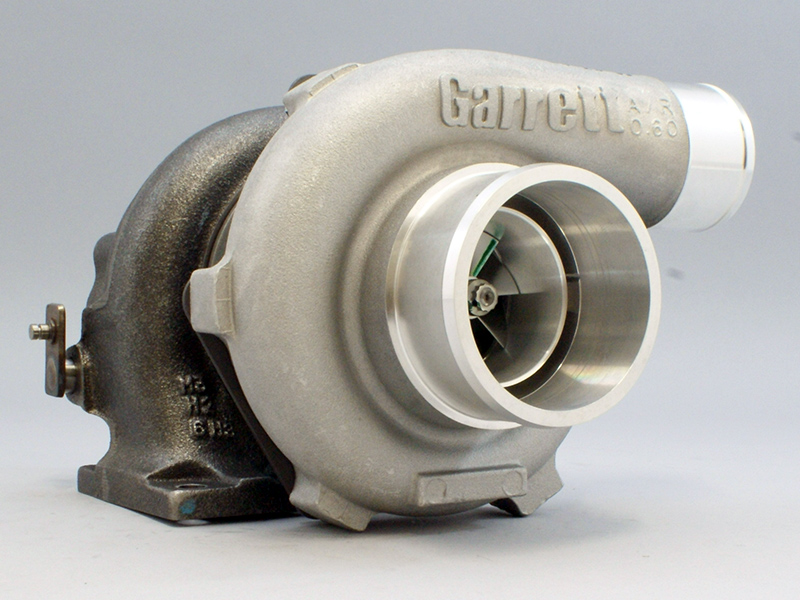

Product Details
| Part Number: | 856801-5059S |
| Brand: | Garrett Turbos |
| Turbo Flange: | V-band |
| Exhaust Housing: | .83 A/R |
| Turbine Discharge Flange: | V-Band |
| Turbocharger Series: | GT35 |
Horsepower: 400 - 750
Displacement: 2.0L - 4.5L
Features:
GEN 2 AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
NEW FULLY MACHINED SPEED SENSOR PORT.
SOLD AS ASSEMBLY KITS (SUPER CORE + TURBINE KIT)
NEW REVERSE ROTATION OPTIONS AVAILABLE
Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.
Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
| Compressor | Turbine | |||||||
|---|---|---|---|---|---|---|---|---|
| Super Core Reference Data | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| GTX3576R Standard Rotation | 58mm | 76mm | 58 | 0.60 | 68mm | 62mm | 84 | |
| GTX3576R Reverse Rotation | 58mm | 76mm | 58 | 0.60 | 68mm | 62mm | 84 | |
| Notes: | Assembly Kit PN | Super Core PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided |
| Assembly Kit PN Includes Super Core and Turbine Kit | 856801-5048S | 851154-5003S | 740902-0012 | 0.63 | T3 | V-Band | Free Float | N |
| 856801-5047S | 851154-5003S | 740902-0011 | 0.82 | T3 | V-Band | Free Float | N | |
| 856801-5046S | 851154-5003S | 740902-0010 | 1.06 | T3 | V-Band | Free Float | N | |
| 856801-5051S | 851154-5003S | 740902-0018 | 0.63 | T4 | V-Band | Free Float | N | |
| 856801-5050S | 851154-5003S | 740902-0017 | 0.82 | T4 | V-Band | Free Float | N | |
| 856801-5049S | 851154-5003S | 740902-0016 | 1.06 | T4 | V-Band | Free Float | N | |
| 856801-5060S | 851154-5003S | 740902-0033 | 0.61 | V-Band | V-Band | Free Float | N | |
| 856801-5059S | 851154-5003S | 740902-0032 | 0.83 | V-Band | V-Band | Free Float | N | |
| 856801-5058S | 851154-5003S | 740902-0031 | 1.01 | V-Band | V-Band | Free Float | N | |
| Reverse Rotation Configuration | 856803-5001S | 844626-5003S | 740902-0056 | 0.61 | V-Band | V-Band | Free Float | N |
| 856803-5002S | 844626-5003S | 740902-0057 | 0.83 | V-Band | V-Band | Free Float | N | |
| 856803-5003S | 844626-5003S | 740902-0058 | 1.01 | V-Band | V-Band | Free Float | N | |
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
