Product Details
| Part Number: | 836023-5001S |
| Brand: | Garrett Turbos |
| Turbo Flange: | T25 |
| Exhaust Housing: | .80 A/R |
| Turbine Discharge Flange: | 5-Bolt External |
| CARB Approved: | No |

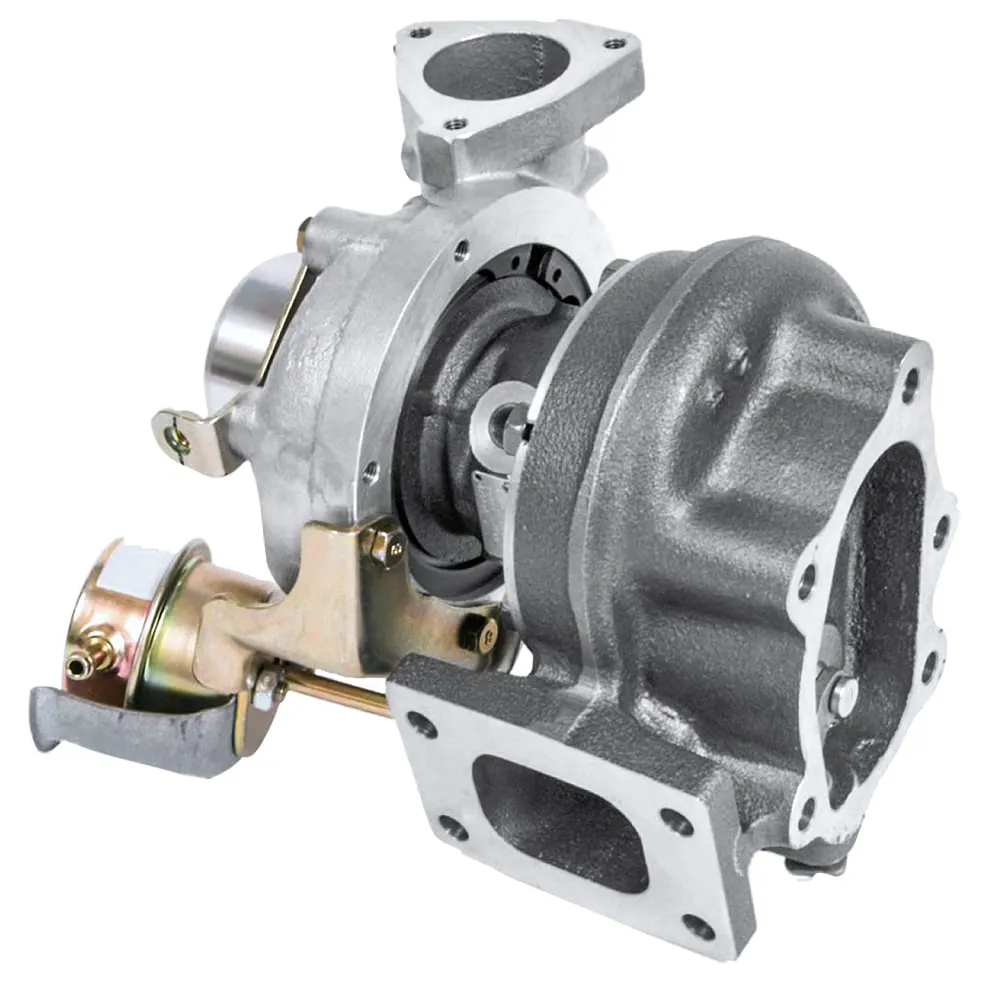

The Garrett GT2554R Turbocharger Cartridge (CHRA) is designed to deliver reliable performance in a range of automotive applications. Featuring a compact and efficient design, this turbocharger core is engineered to enhance engine power and responsiveness. The part number 836023-5001S corresponds to a high-quality replacement that ensures optimal airflow and durability. With a bearing system that supports high-speed rotation, the Garrett GT2554R CHRA provides consistent boost pressure for improved engine performance. This component is suitable for use in various turbocharged engines where precise and dependable operation is required. It is engineered to meet strict manufacturing standards, ensuring a long service life and seamless integration with your vehicle's existing turbo system.
Features:
- Original GT Series Aerodynamics
- 42MM Turbocharger Compressor Incuder
- Internally Wastegated Turbine Housing
- Sold As A Complete Turbo (Includes Turbine Kit & Actuator)
- Smallest Ball Bearing Configuration Available
- Water Cooled CHRA
- Air freight prohibited: false, allowing for safe and flexible shipping options
- Not CARB approved: true, indicating it is not compliant with California Air Resources Board regulations
- CARB acknowledgement required: true, confirming compliance with necessary documentation for non-CARB-approved parts
- LTL freight required: false, suitable for standard shipping methods
- Part type: automotive, designed specifically for turbocharger applications
- Prop 65: Unknown, indicating potential chemical disclosures are not specified
Engine Characteristics
- Min HP: 170
- Max HP: 270
- Min Displacement (L): 1.4
- Max Displacement (L): 2.2
Compressor Wheel Specs
- Compressor Exducer (mm): 54
- Compressor Wheel Mat: Cast
- Compressor A/R: 0.80
Turbine Wheel Specs
- Turbine Inducer (mm): 53
- Turbine Exducer (mm): 42
- Turbine Trim: 62
- Turbine Wheel Mat: Inconel
Turbochargers
- Product Line: GT
- Frame Size: 25
- Rotation: Standard
- Cooling: Oil & Water Cooled
- Wastegate: Internal
- Bearing: Ceramic Dual Ball Bearing
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
