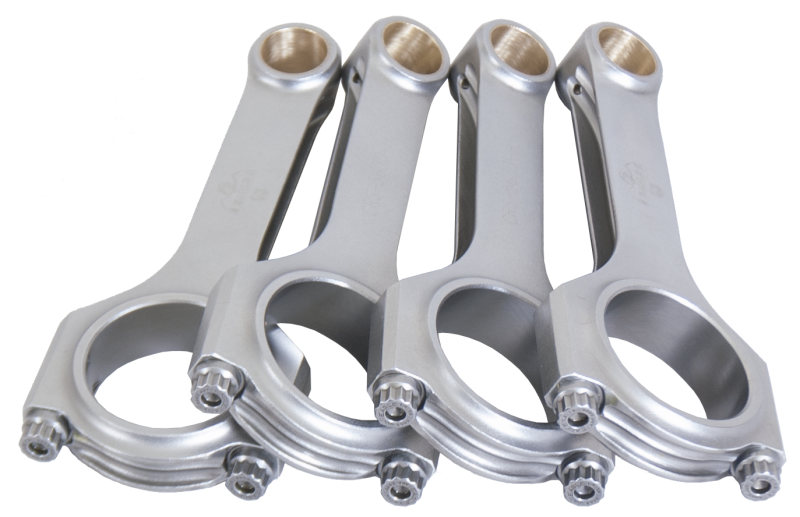

Eagle CRS5630H3D connecting rods are designed for Honda H22 engines used in high-performance and competition applications. Each rod is forged from high-strength 4340 steel using a two-piece forging process, then fully machined and shot-peened to support durability under demanding operating conditions. The H-beam design provides a strong foundation for increased power handling while maintaining precise fit and dependable engine performance.

This weight-matched set of four rods is equipped with ARP 2000 bolts for enhanced clamping strength and reliable operation at elevated power levels. Eagle holds critical sizing and machining tolerances to exact specifications, helping promote consistent balance and proper assembly throughout the rotating assembly. These connecting rods are recommended for competition use and are intended for builders seeking a performance upgrade for a Honda H22 engine.

For installation, torque the ARP 2000 bolts to 43 ft-lbs using ARP moly lubricant only. Proper installation procedures, bolt lubrication, and final clearancing should be followed according to the engine builder’s specifications. The Eagle CRS5630H3D set is supplied as four matched connecting rods and is intended for automotive applications.

Features:

• Application: Designed for Honda H22 engines
• Material: Forged 4340 steel for high-strength performance
• Design: H-beam connecting rod configuration
• Manufacturing: Fully machined and shot-peened surface
• Matching: Weight-matched set of four connecting rods
• Fasteners: ARP 2000 bolts included
• Bolt Torque: Torque to 43 ft-lbs using ARP moly lubricant only
• Use: Recommended for competition applications
