Product Details
| Part Number: | 9-421-7043 |
| Brand: | DeatschWerks |
| CARB Approved: | No |

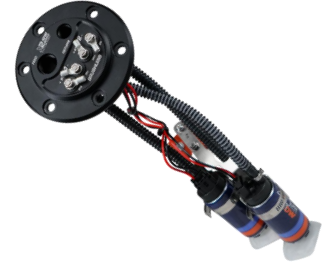

The new DeatschWerks X2 Series Fuel Pump Hanger is now available for 1992-2000 Civic and 1994-2001 Integra and includes accommodation for two pumps, integration of a return fuel line and retention of ALL the functionality of OE hanger. The X2 Series Fuel Pump hanger consists of a top-hat, pump mount and hangers. These components work together to deliver the flow you need and the OE functionality you want.
Features:
- OEM Tank Fitment
- 700% Increase Over OEM Honda Pump Hanger
- Fits 1992-2000 Honda Civic and 1994-2001 Integra
- Fits up to two DW100, 200, 300, 420 fuel pumps*
- Fits up to one DW440 or DW810 Brushless fuel pump*
- Supports over 1400 whp on Pump Gas - Forced Induction**
- Optional Plumbing Kits Available (PN# 6-624 or 6-625)
*Note : Available with no pumps, dual DW420 pumps or a single DW810 only.
**Note: Rated at 80psi total fuel pressure
Specifications:
- Material: Anodized Aluminum
- Feed Fitting: -8AN ORB
- Return Fitting: -6AN ORB
- Pump Size Fitment: 39mm or 42mm
- Pump PN# Fitment: 9-201, 9-301, 9-421, 9-441, 9-811
- Pump Wiring: M5 Stainless Terminals x4
- Flow at 43.5psi: 815 LPH (3.6GPM)
- Amp at 43.5psi: 35 Amps
- OE Items Reused: Hangar to Fuel Tank Gasket
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1992 | Honda | Civic | CX |
| 1992 | Honda | Civic | DX |
| 1992 | Honda | Civic | EX |
| 1992 | Honda | Civic | LX |
| 1992 | Honda | Civic | Si |
| 1992 | Honda | Civic | VX |
| 1993 | Honda | Civic del Sol | S |
| 1993 | Honda | Civic del Sol | Si |
| 1993 | Honda | Civic | CX |
| 1993 | Honda | Civic | DX |
| 1993 | Honda | Civic | EX |
| 1993 | Honda | Civic | LX |
| 1993 | Honda | Civic | Si |
| 1993 | Honda | Civic | VX |
| 1994 | Acura | Integra | GS-R |
| 1994 | Acura | Integra | LS |
| 1994 | Acura | Integra | RS |
| 1994 | Honda | Civic del Sol | S |
| 1994 | Honda | Civic del Sol | Si |
| 1994 | Honda | Civic del Sol | VTEC |
| 1994 | Honda | Civic | CX |
| 1994 | Honda | Civic | DX |
| 1994 | Honda | Civic | EX |
| 1994 | Honda | Civic | LX |
| 1994 | Honda | Civic | Si |
| 1994 | Honda | Civic | VX |
| 1995 | Acura | Integra | GS-R |
| 1995 | Acura | Integra | LS |
| 1995 | Acura | Integra | RS |
| 1995 | Acura | Integra | Special Edition |
| 1995 | Honda | Civic del Sol | S |
| 1995 | Honda | Civic del Sol | Si |
| 1995 | Honda | Civic del Sol | VTEC |
| 1995 | Honda | Civic | CX |
| 1995 | Honda | Civic | DX |
| 1995 | Honda | Civic | EX |
| 1995 | Honda | Civic | LX |
| 1995 | Honda | Civic | Si |
| 1995 | Honda | Civic | VX |
| 1996 | Acura | Integra | GS-R |
| 1996 | Acura | Integra | LS |
| 1996 | Acura | Integra | RS |
| 1996 | Acura | Integra | Special Edition |
| 1996 | Honda | Civic del Sol | S |
| 1996 | Honda | Civic del Sol | Si |
| 1996 | Honda | Civic del Sol | VTEC |
| 1996 | Honda | Civic | CX |
| 1996 | Honda | Civic | DX |
| 1996 | Honda | Civic | EX |
| 1996 | Honda | Civic | HX |
| 1996 | Honda | Civic | LX |
| 1997 | Acura | Integra | GS |
| 1997 | Acura | Integra | GS-R |
| 1997 | Acura | Integra | LS |
| 1997 | Acura | Integra | RS |
| 1997 | Acura | Integra | Type R |
| 1997 | Honda | Civic del Sol | S |
| 1997 | Honda | Civic del Sol | Si |
| 1997 | Honda | Civic del Sol | VTEC |
| 1997 | Honda | Civic | CX |
| 1997 | Honda | Civic | DX |
| 1997 | Honda | Civic | EX |
| 1997 | Honda | Civic | HX |
| 1997 | Honda | Civic | LX |
| 1998 | Acura | Integra | GS |
| 1998 | Acura | Integra | GS-R |
| 1998 | Acura | Integra | LS |
| 1998 | Acura | Integra | RS |
| 1998 | Acura | Integra | Type R |
| 1998 | Honda | Civic | CX |
| 1998 | Honda | Civic | DX |
| 1998 | Honda | Civic | EX |
| 1998 | Honda | Civic | GX |
| 1998 | Honda | Civic | HX |
| 1998 | Honda | Civic | LX |
| 1999 | Acura | Integra | GS |
| 1999 | Acura | Integra | GS-R |
| 1999 | Acura | Integra | LS |
| 1999 | Honda | Civic | CX |
| 1999 | Honda | Civic | DX |
| 1999 | Honda | Civic | EX |
| 1999 | Honda | Civic | GX |
| 1999 | Honda | Civic | HX |
| 1999 | Honda | Civic | LX |
| 1999 | Honda | Civic | Si |
| 1999 | Honda | Civic | Value Package |
| 2000 | Acura | Integra | GS |
| 2000 | Acura | Integra | GS-R |
| 2000 | Acura | Integra | LS |
| 2000 | Acura | Integra | Type R |
| 2000 | Honda | Civic | CX |
| 2000 | Honda | Civic | DX |
| 2000 | Honda | Civic | EX |
| 2000 | Honda | Civic | GX |
| 2000 | Honda | Civic | HX |
| 2000 | Honda | Civic | LX |
| 2000 | Honda | Civic | Si |
| 2001 | Acura | Integra | GS |
| 2001 | Acura | Integra | GS-R |
| 2001 | Acura | Integra | LS |
| 2001 | Acura | Integra | Type R |
