Images may be for reference only
Product Details

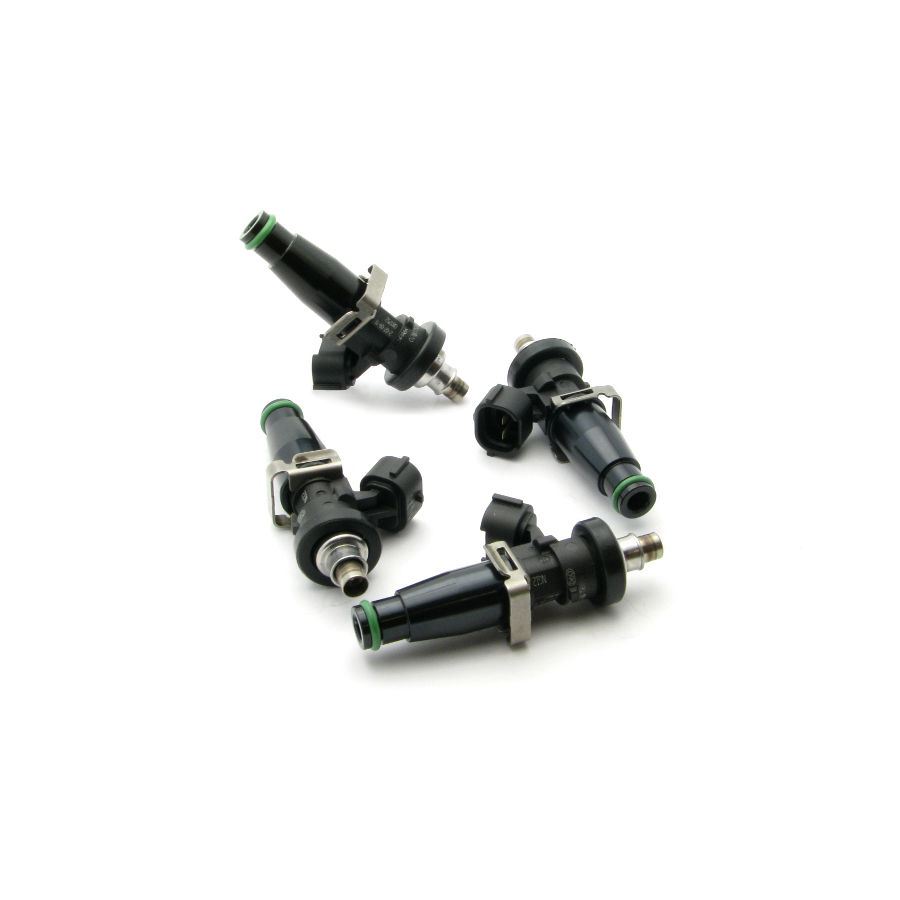

Set of 4 DeatchWerks 2200cc injectors for Honda B-Series and D-Series Engines
- E85 compatibility
- Flow rates and set balancing in-house by DeatschWerks
- Flow balanced to within 1-2% (flow report included)
- Excellent spray pattern and atomization for optimized idle and tuning
- Technical assistance and tuning data available via phone or email
- 3-year comprehensive warranty
- Fuel Pressure Range 40-100 psi
- Minimum Pulse Width 1.1 ms
- Maximum Duty Cycle 92%
- Coil Impedance 14.2 ohm
- Injector Type Denso Top Feed
- Connector Type Sumitomo
Notes:
- After market ECU required
- Item only qualifies for an exchange due to high incidence of buyers remorse
- Contact us with questions about injectors BEFORE purchasing
| Part Number: | 16S-04-2200-4 |
| Brand: | DeatschWerks |
| Size: | 2200cc |
| CARB Approved: | No |
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1991 | Acura | Integra | GS |
| 1991 | Acura | Integra | LS |
| 1991 | Acura | Integra | RS |
| 1992 | Acura | Integra | GS |
| 1992 | Acura | Integra | GS-R |
| 1992 | Acura | Integra | LS |
| 1992 | Acura | Integra | RS |
| 1992 | Honda | Civic | CX |
| 1992 | Honda | Civic | DX |
| 1992 | Honda | Civic | EX |
| 1992 | Honda | Civic | LX |
| 1992 | Honda | Civic | Si |
| 1992 | Honda | Civic | VX |
| 1993 | Acura | Integra | GS |
| 1993 | Acura | Integra | GS-R |
| 1993 | Acura | Integra | LS |
| 1993 | Acura | Integra | RS |
| 1993 | Honda | Civic del Sol | S |
| 1993 | Honda | Civic del Sol | Si |
| 1993 | Honda | Civic | CX |
| 1993 | Honda | Civic | DX |
| 1993 | Honda | Civic | EX |
| 1993 | Honda | Civic | LX |
| 1993 | Honda | Civic | Si |
| 1993 | Honda | Civic | VX |
| 1994 | Acura | Integra | GS-R |
| 1994 | Acura | Integra | LS |
| 1994 | Acura | Integra | RS |
| 1994 | Honda | Civic del Sol | S |
| 1994 | Honda | Civic del Sol | Si |
| 1994 | Honda | Civic del Sol | VTEC |
| 1994 | Honda | Civic | CX |
| 1994 | Honda | Civic | DX |
| 1994 | Honda | Civic | EX |
| 1994 | Honda | Civic | LX |
| 1994 | Honda | Civic | Si |
| 1994 | Honda | Civic | VX |
| 1995 | Acura | Integra | GS-R |
| 1995 | Acura | Integra | LS |
| 1995 | Acura | Integra | RS |
| 1995 | Acura | Integra | Special Edition |
| 1995 | Honda | Civic del Sol | S |
| 1995 | Honda | Civic del Sol | Si |
| 1995 | Honda | Civic del Sol | VTEC |
| 1995 | Honda | Civic | CX |
| 1995 | Honda | Civic | DX |
| 1995 | Honda | Civic | EX |
| 1995 | Honda | Civic | LX |
| 1995 | Honda | Civic | Si |
| 1995 | Honda | Civic | VX |
| 1996 | Acura | Integra | GS-R |
| 1996 | Acura | Integra | LS |
| 1996 | Acura | Integra | RS |
| 1996 | Acura | Integra | Special Edition |
| 1996 | Honda | Civic del Sol | S |
| 1996 | Honda | Civic del Sol | Si |
| 1996 | Honda | Civic del Sol | VTEC |
| 1996 | Honda | Civic | CX |
| 1996 | Honda | Civic | DX |
| 1996 | Honda | Civic | EX |
| 1996 | Honda | Civic | HX |
| 1996 | Honda | Civic | LX |
| 1997 | Acura | Integra | GS |
| 1997 | Acura | Integra | GS-R |
| 1997 | Acura | Integra | LS |
| 1997 | Acura | Integra | RS |
| 1997 | Acura | Integra | Type R |
| 1997 | Honda | Civic del Sol | S |
| 1997 | Honda | Civic del Sol | Si |
| 1997 | Honda | Civic del Sol | VTEC |
| 1997 | Honda | Civic | CX |
| 1997 | Honda | Civic | DX |
| 1997 | Honda | Civic | EX |
| 1997 | Honda | Civic | HX |
| 1997 | Honda | Civic | LX |
| 1998 | Acura | Integra | GS |
| 1998 | Acura | Integra | GS-R |
| 1998 | Acura | Integra | LS |
| 1998 | Acura | Integra | RS |
| 1998 | Acura | Integra | Type R |
| 1998 | Honda | Civic | CX |
| 1998 | Honda | Civic | DX |
| 1998 | Honda | Civic | EX |
| 1998 | Honda | Civic | GX |
| 1998 | Honda | Civic | HX |
| 1998 | Honda | Civic | LX |
| 1999 | Acura | Integra | GS |
| 1999 | Acura | Integra | GS-R |
| 1999 | Acura | Integra | LS |
| 1999 | Honda | Civic | CX |
| 1999 | Honda | Civic | DX |
| 1999 | Honda | Civic | EX |
| 1999 | Honda | Civic | GX |
| 1999 | Honda | Civic | HX |
| 1999 | Honda | Civic | LX |
| 1999 | Honda | Civic | Si |
| 1999 | Honda | Civic | Value Package |
| 2000 | Acura | Integra | GS |
| 2000 | Acura | Integra | GS-R |
| 2000 | Acura | Integra | LS |
| 2000 | Acura | Integra | Type R |
| 2000 | Honda | Civic | CX |
| 2000 | Honda | Civic | DX |
| 2000 | Honda | Civic | EX |
| 2000 | Honda | Civic | GX |
| 2000 | Honda | Civic | HX |
| 2000 | Honda | Civic | LX |
| 2000 | Honda | Civic | Si |
| 2001 | Acura | Integra | GS |
| 2001 | Acura | Integra | GS-R |
| 2001 | Acura | Integra | LS |
| 2001 | Acura | Integra | Type R |
Engine Fitment
| Engine |
|---|
| Honda 1.8L/1834CC - 4 Cylinder (B18A1) |
| Honda 1.7L/1678CC - 4 Cylinder (B17A1) |
| Honda 1.8L/1797CC - 4 Cylinder (B18C1) |
| Honda 1.8L/1834CC - 4 Cylinder (B18B1) |
| Honda 1.8L/1797CC - 4 Cylinder (B18C5) |
| Honda 1.5L/1493CC - 4 Cylinder (D15B8) |
| Honda 1.5L/1493CC - 4 Cylinder (D15B7) |
| Honda 1.6L/1588CC - 4 Cylinder (D16Z6) |
| Honda 1.5L/1493CC - 4 Cylinder (D15Z1) |
| Honda 1.6L/1588CC - 4 Cylinder (D16Y7) |
| Honda 1.6L/1588CC - 4 Cylinder (D16Y8) |
| Honda 1.6L/1590CC - 4 Cylinder (D16Y5) |
| Honda 1.6L/1588CC - 4 Cylinder (D16B5) |
| Honda 1.6L/1595CC - 4 Cylinder (B16A2) |
| Honda 1.6L/1588CC - 4 Cylinder (B16A3) |
