Product Details
| Part Number: | DC-RBCCNC-OG |
| Brand: | Drag Cartel Industries |

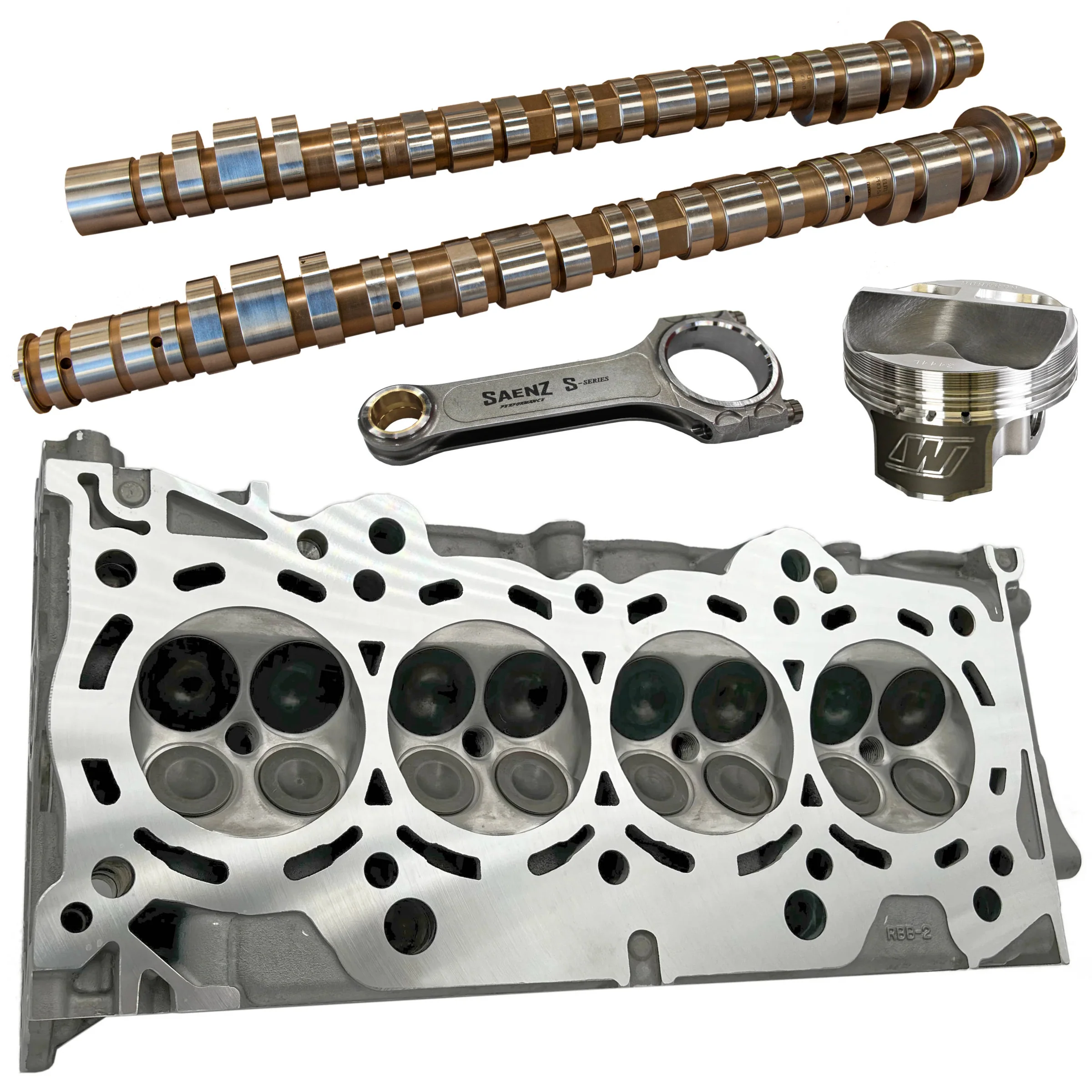

TSX K-Series Street/Strip CNC Head & Camshaft Combo
Are you serious about building an all-motor Honda K-series powerhouse for the street and strip? The TSX K-Series CNC Head & OG Camshaft Combo is a complete, pre-matched top-end performance package designed to deliver maximum naturally aspirated horsepower and reliability. This kit combines a professionally ported RBB cylinder head with race-proven valvetrain components and Drag Cartel's highest-performing camshafts.
What is included in this Top-End Combo?
This package provides a comprehensive, bolt-on solution to drastically improve the airflow and valvetrain stability of your K-series engine.
- CARTEL RBB TSX CNC HEAD: A fully ported and prepped Acura TSX RBB cylinder head.
- OG CAMSHAFTS: Your choice of high-performance Drag Cartel 8620 Billet Cams (002.2, 003.2, 004, or 004.5).
- SUPERTECH SPRK-H1021D DUAL SPRING VALVE KIT: Includes dual springs, lightweight Titanium Retainers, and high-quality Flat Face Valves.
Key Features of the CARTEL CNC Head
The RBB head is meticulously ported and prepped to optimize every aspect of airflow and combustion, making it an essential upgrade for any serious K-series build.
- CNC Cartel Port Design: Utilizes a custom, precision CNC port design to achieve superior flow characteristics.
- Valve Seat & Bowl Rework: Features a custom radius/discrete valve job with larger intake seats, meticulously blending the port bowls for optimal flow.
- Chamber and Compression Prep: Combustion chambers are blended and smoothed, and the head is CNC'd and milled to achieve the proper target compression ratio.
- Professional Assembly: The head is assembled with new OE valve seals, and spring heights are precisely set to match your chosen Drag Cartel camshaft profile.
Drag Cartel OG Camshafts
- Material: All cams are made from aerospace-grade 8620 steel billet material for ultimate rigidity and durability.
- Benefit: Reduces valve float at extended RPMs, allowing the engine to safely reach its true potential.
- Cam Options: Choose the stage that best fits your performance goal (002.2, 003.2, 004, or 004.5).
Supertech Dual Spring Valve Kit
- Springs: SPRK-H1021D Dual Valve Springs provide the increased pressure needed for high-lift cams.
- Valves: One-piece forged Supertech Flat Face Valves are heat-treated, shot-peened, and CNC finished for exceptional strength and reliability.
- Retainers: Lightweight Titanium Retainers minimize valvetrain mass, further reducing the risk of valve float.
Fitment:
This high-performance combo is compatible with many popular K-Series engines often used in track and street builds.
- Acura RSX Type S 2.0 K20A2 2002–2004
- Acura RSX Type S 2.0 K20Z1 2005–2006
- Acura TSX 2.4 K24A2 2004–2008
- Honda Accord 2.4 K24A8 2006–2007
- Honda Civic Si 2.0 K20Z3 2006–2011
- Fits Both K20 & K24 Engines up to 8th Generation Honda Civics
Incompatibility Warning:
- This combo is NOT compatible with the following engines:
- K24Z7 Block / Engines
- K24W1 Block / Engines
Ready to install guaranteed horsepower? Select your Drag Cartel Cam stage and order this complete top-end combo today!
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2002 | Acura | RSX | Type-S |
| 2003 | Acura | RSX | Type-S |
| 2004 | Acura | RSX | Type-S |
| 2004 | Acura | TSX | Base |
| 2005 | Acura | RSX | Type-S |
| 2005 | Acura | TSX | Base |
| 2006 | Acura | RSX | Type-S |
| 2006 | Acura | TSX | Base |
| 2006 | Honda | Accord | EX |
| 2006 | Honda | Accord | LX |
| 2006 | Honda | Accord | LX Special Edition |
| 2006 | Honda | Accord | Value Package |
| 2006 | Honda | Civic | Si |
| 2007 | Acura | TSX | Base |
| 2007 | Honda | Accord | EX-L |
| 2007 | Honda | Accord | Special Edition |
| 2007 | Honda | Accord | Value Package |
| 2007 | Honda | Civic | Si |
| 2007 | Honda | Element | EX |
| 2007 | Honda | Element | LX |
| 2007 | Honda | Element | SC |
| 2008 | Acura | TSX | Base |
| 2008 | Honda | Civic | MUGEN Si |
| 2008 | Honda | Civic | Si |
| 2008 | Honda | Element | EX |
| 2008 | Honda | Element | LX |
| 2008 | Honda | Element | SC |
| 2009 | Honda | Civic | Si |
| 2009 | Honda | Element | EX |
| 2009 | Honda | Element | LX |
| 2009 | Honda | Element | SC |
| 2010 | Honda | Civic | Si |
| 2010 | Honda | Element | EX |
| 2010 | Honda | Element | LX |
| 2010 | Honda | Element | SC |
| 2011 | Honda | Civic | Si |
| 2011 | Honda | Element | EX |
| 2011 | Honda | Element | LX |
Engine Fitment
Honda 2.0L/1998CC - 4 Cylinder (K20A2)
Honda 2.0L/1998CC - 4 Cylinder (K20Z1)
Honda 2.0L/1998CC - 4 Cylinder (K20Z3)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A8)
