Product Details
| Part Number: | DC-EL-PRO3-TWIN |
| Brand: | Drag Cartel Industries |

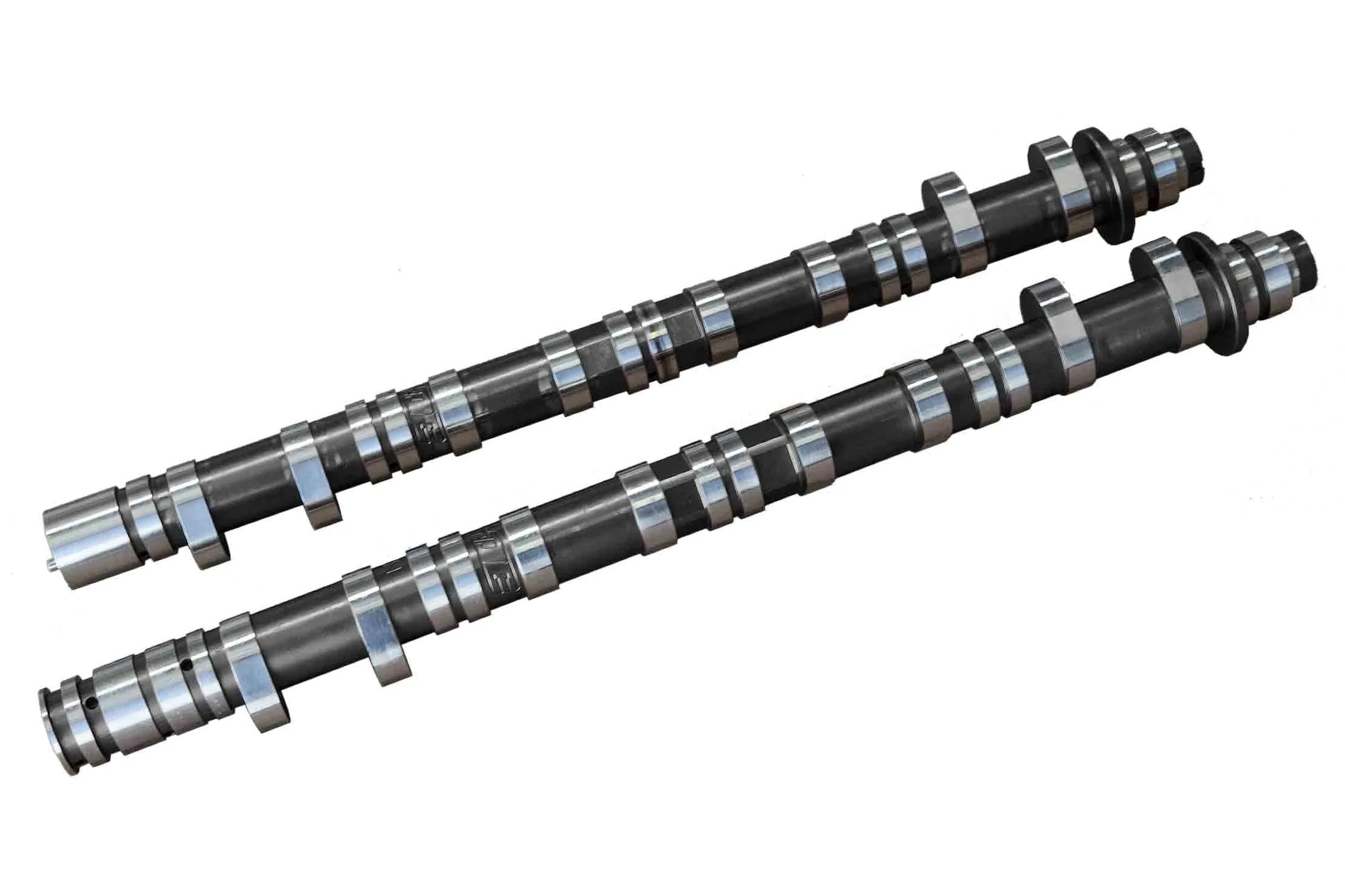

Are you building a maximum-effort, naturally aspirated (NA) Honda K-series engine destined for the racetrack? The Drag Cartel 003 ELITE PRO Twin Lobe Killer Cams are engineered to deliver the highest possible lift and duration for peak NA horsepower output. Constructed from premium Tool Steel, these cams are race-proven and track-tested to provide unmatched rigidity, stability, and reliability at sustained, extended RPM ranges.
Why are ELITE PRO Twin Lobe Killer Cams essential for NA Racing?
This aggressive cam profile, combined with the Twin Lobe Killer design, removes VTEC limitations and maximizes airflow crucial for competition.
- Extreme Rigidity: Made from ALL-NEW Tool Steel Material, providing superior stiffness over standard billet steel to maintain valvetrain stability at high engine speeds.
- Reduced Valve Float: The rigid Tool Steel construction minimizes cam deflection, effectively reducing valve float and safeguarding your engine components under duress.
- Maximum NA Profile: These cams feature one of the most aggressive lift and duration specs available, CNC ground on a state-of-the-art Landis Cam grinder to maximize cylinder head airflow.
- Twin Lobe Killer Design: Modifies the VTEC system to use only the high-lift cam lobe full-time, maximizing performance while maintaining the factory rocker assembly geometry (with modification).
Camshaft Specifications and Requirements
The 003 Twin Lobe Killer profile is highly aggressive and requires specific modifications and high-performance valvetrain components.
- Material: All-New Tool Steel Material
- Intake Lobe Specs:
- Lift: 16.8 mm
- Duration @ 0.050′′: 0.284′′
- Exhaust Lobe Specs:
- Lift: 15.6 mm
- Duration @ 0.050′′: 0.282′′
- Included Components: Pins & Spacer Kit Included for the Twin Lobe conversion.
Installation Requirement (CRITICAL):
- Rocker Modification: These cams require Machined Factory K20A2 Outer Rockers (modification or aftermarket rockers required) for proper clearance and function.
Installation Torque Specifications
Ensure precise and reliable installation by adhering to the following factory torque values:
- Intake Cam Gear Bolt: 83 lb-ft
- Exhaust Cam Gear Bolt: 51 lb-ft
- Pulse Plates: 29 lb-ft
Engine Compatibility and Fitment
The ELITE PRO 003 Cams are compatible with the most popular K-Series performance engines used in racing builds.
- Vehicle Engine Code Years
- Acura RSX Type-S / Type-R K20A2 2001–2006
- Acura TSX K24A2 2004–2006
- Honda Civic Si K20Z3 2006–2010
- K-Series Engines K20A2, K24A2
Incompatibility Warning:
These cams are designed for high-performance VTEC-modified builds and are NOT compatible with the following engines:
- K24Z7 Block / Engines
- K24W1 Block / Engines
Unleash the maximum potential of your NA K-series. Choose the Drag Cartel 003 ELITE PRO Twin Lobe Killer Cams and gain the competitive edge!
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
Acura RSX
2002 Acura RSX Type-S
2003 Acura RSX Type-S
2004 Acura RSX Type-S
2005 Acura RSX Type-S
2006 Acura RSX Type-S
2003 Acura RSX Type-S
2004 Acura RSX Type-S
2005 Acura RSX Type-S
2006 Acura RSX Type-S
Acura TSX
2004 Acura TSX Base
2005 Acura TSX Base
2006 Acura TSX Base
2007 Acura TSX Base
2008 Acura TSX Base
2005 Acura TSX Base
2006 Acura TSX Base
2007 Acura TSX Base
2008 Acura TSX Base
Honda Civic
2008 Honda Civic MUGEN Si
2006 Honda Civic Si
2007 Honda Civic Si
2008 Honda Civic Si
2009 Honda Civic Si
2010 Honda Civic Si
2011 Honda Civic Si
2007 Honda Civic Si
2008 Honda Civic Si
2009 Honda Civic Si
2010 Honda Civic Si
2011 Honda Civic Si
Engine Fitment
Honda 2.0L/1998CC - 4 Cylinder (K20A2)
Honda 2.0L/1998CC - 4 Cylinder (K20Z1)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.0L/1998CC - 4 Cylinder (K20Z3)
