Product Details
| Part Number: | DC-EL-PRO3-SINGLE |
| Brand: | Drag Cartel Industries |

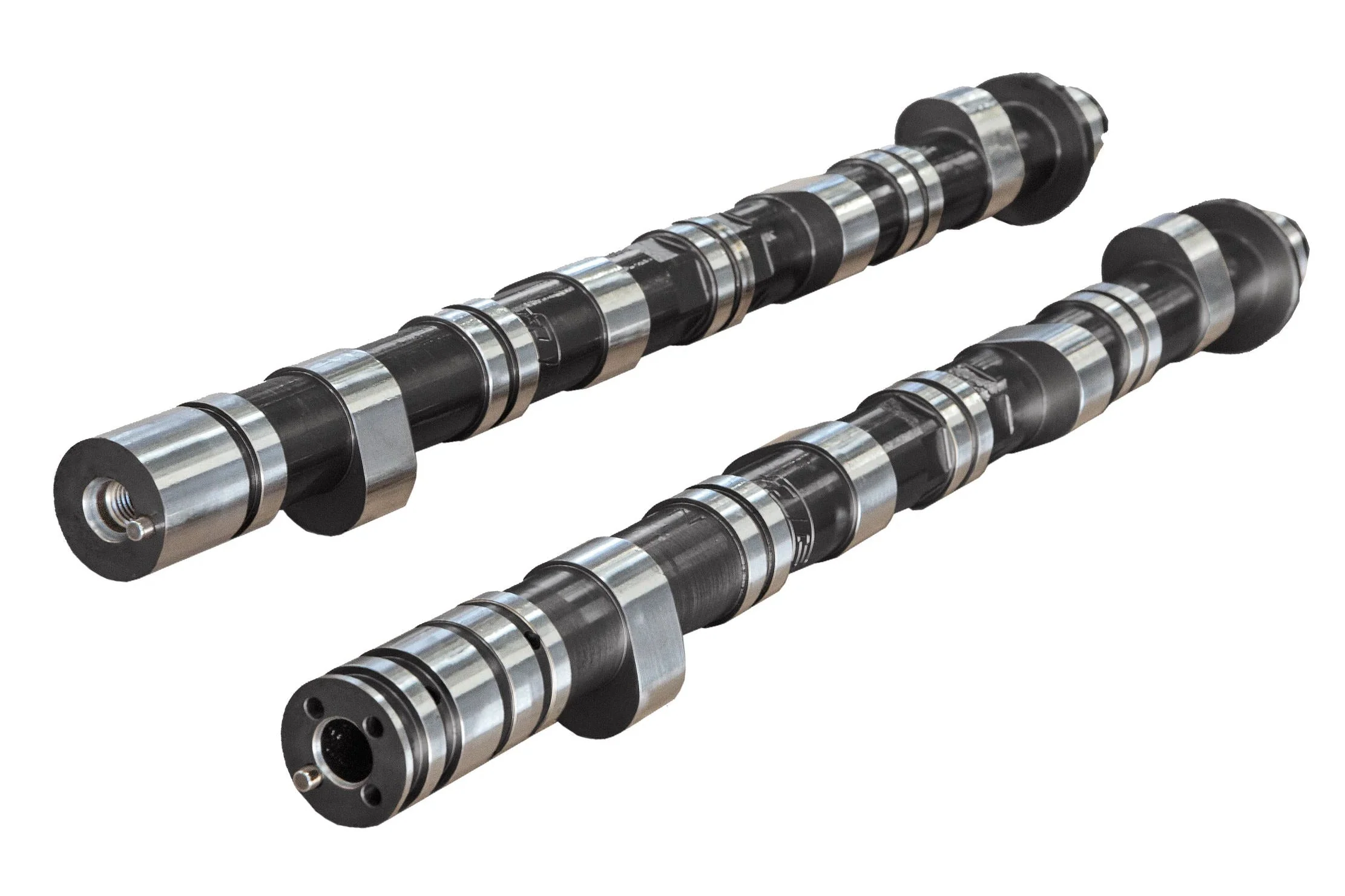

Are you building an uncompromising, maximum-effort Honda K-series race engine where every horsepower counts? The Drag Cartel ELITE PRO 003 K Killer Camshafts are engineered for the motorsports elite. These single lobe cams are manufactured from premium Tool Steel, delivering the absolute highest lift, unmatched rigidity, and the most reliable performance at sustained, extreme RPMs by permanently deleting the factory VTEC system.
Why Choose ELITE PRO Single Lobe K Killer Cams?
The K Killer system removes the limitations and complexity of VTEC, replacing it with a single, highly aggressive profile that is optimized for all-out racing power.
- Maximum Profile: These cams feature the highest lift and most aggressive duration in the single-lobe lineup, maximizing the airflow potential of your race-built cylinder head.
- VTEC Elimination: The single-lobe design removes the VTEC crossover, providing a fixed, optimized race profile that is essential for maximizing horsepower and stability under extreme conditions.
- Ultimate Rigidity: Constructed from ALL-NEW Tool Steel Material, offering superior stiffness that significantly reduces valve float and ensures valvetrain stability at the highest RPM ranges.
Camshaft Specifications and Requirements
The 003 K Killer profile is the most aggressive single lobe profile offered and requires the complete VTEC Killer valvetrain system for proper operation.
- Material: All-New Tool Steel Material
- Intake Lobe Specs:
- Lift: 16.8 mm
- Duration @ 0.050": 0.282"
- Exhaust Lobe Specs:
- Lift: 15.6 mm
- Duration @ 0.050": 0.280"
Required Supporting Modification (CRITICAL):
- VTEC Killer System: These cams require the Drag Cartel VTEC KILLER Roller Rocker system (sold separately) for proper installation and function.
Installation Torque Specifications
Ensure precise and reliable installation by adhering to the following factory torque values:
- Intake Cam Gear Bolt: 83 lb-ft
- Exhaust Cam Gear Bolt: 51 lb-ft
- Pulse Plates: 29 lb-ft
The ELITE PRO 003 Cams are compatible with the most popular K-Series performance engines used in racing builds.
- Vehicle Engine Code Years
- Acura RSX Type-S / Type-R K20A2 2002–2006
- Acura TSX K24A2 2004–2006
- Honda Civic Si K20Z3 2006–2010
- K-series Engines K20A2, K24A2
These cams are designed for high-performance VTEC-deleted builds and are NOT compatible with the following engines:
- K24Z7 Block / Engines
- K24W1 Block / Engines
Ready to achieve the ultimate K-series racing power? Choose the Drag Cartel ELITE PRO 003 K Killer Cams and dominate the field!
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2002 | Acura | RSX | Type-S |
| 2003 | Acura | RSX | Type-S |
| 2004 | Acura | RSX | Type-S |
| 2004 | Acura | TSX | Base |
| 2005 | Acura | RSX | Type-S |
| 2005 | Acura | TSX | Base |
| 2006 | Acura | RSX | Type-S |
| 2006 | Acura | TSX | Base |
| 2006 | Honda | Civic | Si |
| 2007 | Acura | TSX | Base |
| 2007 | Honda | Civic | Si |
| 2008 | Acura | TSX | Base |
| 2008 | Honda | Civic | MUGEN Si |
| 2008 | Honda | Civic | Si |
| 2009 | Honda | Civic | Si |
| 2010 | Honda | Civic | Si |
| 2011 | Honda | Civic | Si |
Engine Fitment
Honda 2.0L/1998CC - 4 Cylinder (K20A2)
Honda 2.0L/1998CC - 4 Cylinder (K20Z1)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.0L/1998CC - 4 Cylinder (K20Z3)
