CP Pistons 04-09 S2000 12.5:1 87.5mm Bore Piston Set
Part Number: SC7176-4

Images may be for reference only

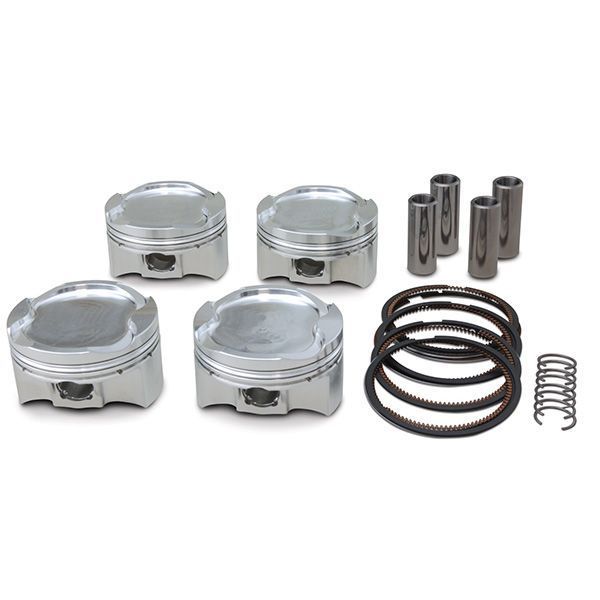

CP Pistons 04-09 S2000 12.5:1 87.5mm Bore Piston Set
Part Number: SC7176-4

Be the first to review!
$885.15 & Free Shipping

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.


Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 1770 reward points. Learn More


Special Order
Estimated shipping time if ordered today is 30 days, but it may take longer.
Not eligible for cancellation or return

Product Details

Part Number: SC7176-4
Brand: CP Pistons
Bore: 87.5mm
Compression Ratio: 12.5:1
Oversize: +0.5mm
Stroke (mm): 90.7
Rod (mm): 149.7
C/D (mm): 30
Dome CC's: 5.0
Includes Piston Rings: Yes

CP Pistons 04-09 S2000 12.5:1 87.5mm Bore Piston Set

CP Pistons represent the highest quality and is engineered for maximum power. Pistons can be ordered with gas ports, skirt coating, ceramic top coating, and stronger wrist pins if desired. Cometic head gaskets also available. CP pistons are compatible with oversized valves and high lift camshafts. Part numbers ending in a "X" are on a X-style forging for additional strength, durability and weight reduction. The X-style has a full radius dome design, high performance rings and light weight wrist pins.

Standard features include:

  • Deep valve reliefs accommodate high lift camshafts.
  • Larger valve reliefs for +1mm valve sizes.
  • Custom skirt cam and barrel design.
  • Accumulator grooves.
  • High strength aluminum forgings.
  • High performance rings.
  • Fully CNC machined and balanced to +/- 1 gram.
  • Wrist pins included at no additional cost.
  • Double pin oilers force fed from oil ring groove.
  • Pin lock grooves for easy lock removal.
  • Pin fitting included

Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Honda S2000
2004 Honda S2000 Base
2005 Honda S2000 Base
2006 Honda S2000 Base
2007 Honda S2000 Base
2008 Honda S2000 Base
2009 Honda S2000 Base
2008 Honda S2000 CR
2009 Honda S2000 CR

Engine Fitment

Honda 2.2L/2157CC - 4 Cylinder (F22C1)
