Product Details
| Part Number: | CH-BOPB-K |
| Brand: | Circuit Hero |
| Color: | Black |

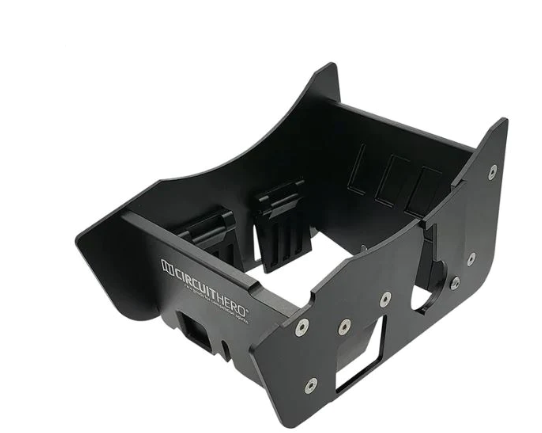

The Circuit Hero Billet K-Series Oil Pan Baffle is a unique product that easily installs on the oil pan floor and keeps oil nearby the oil sump arm preventing oil starvation and protecting engine components. Oil flows freely by utilizing five (5) doors and is designed to keep the engine lubricated during hard acceleration, cornering, and braking.
Features
- CNC Machined 6061 Aluminum
- Two Flush Mount Doors and Three Low Profile Doors
- Black Anodized for Superior Protection
- Simple Drop-in Installation
- Fits K20A/A2/Z1 Engines
- Prevents Oil Starvation
- Thin Profile Mounts and Doors for Additional Clearance
Engine Applications
- USDM 02-04 RSX Type-S (K20A2)
- USDM 05-06 RSX Type-S (K20Z1)
- JDM K20A Engines (EP3 Civic/DC5 Integra Type-R)
- UKDM K20A2 Engines (EP3 Civic Type-R)
- RSX Type-S*
*Modifications Required:
- Oil Pan: Acura/Honda Part Number: 1200-PRB-000
- Oil Pump: Acura/Honda Part Number: 15100-PRB-A01
- Chain: Acura/Honda Part Number: 13441-PCX-004
- Chain Guide: Acura/Honda Part Number: 13460-PNC-004
**K24- Must use aluminum oil pan
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2002 | Acura | RSX | Base |
| 2002 | Acura | RSX | Type-S |
| 2002 | Honda | Civic | Si |
| 2003 | Acura | RSX | Base |
| 2003 | Acura | RSX | Type-S |
| 2003 | Honda | Civic | Si |
| 2004 | Acura | RSX | Base |
| 2004 | Acura | RSX | Type-S |
| 2004 | Honda | Civic | Si |
| 2005 | Acura | RSX | Base |
| 2005 | Acura | RSX | Type-S |
| 2005 | Honda | Civic | Si |
| 2006 | Acura | RSX | Base |
| 2006 | Acura | RSX | Type-S |
| 2006 | Honda | Civic | Si |
| 2007 | Honda | Civic | Si |
| 2008 | Honda | Civic | MUGEN Si |
| 2008 | Honda | Civic | Si |
| 2009 | Honda | Civic | Si |
| 2010 | Honda | Civic | Si |
| 2011 | Honda | Civic | Si |
Engine Fitment
Honda 2.0L/1998CC - 4 Cylinder (K20A2)
Honda 2.0L/1998CC - 4 Cylinder (K20Z1)
Honda 2.0L/1998CC - 4 Cylinder (K20Z3)
Honda 2.0L/1998CC - 4 Cylinder (K20A3)
1 Reviews ★★★★★
0
0
0
0
1
Kendell | January 19th, 2025
Fits perfectly in the oil pan aluminum
