Product Details
| Part Number: | 13134 |
| Brand: | Aeromotive |
| Color: | Black |
| Size: | -10AN |
| CARB Approved: | No |

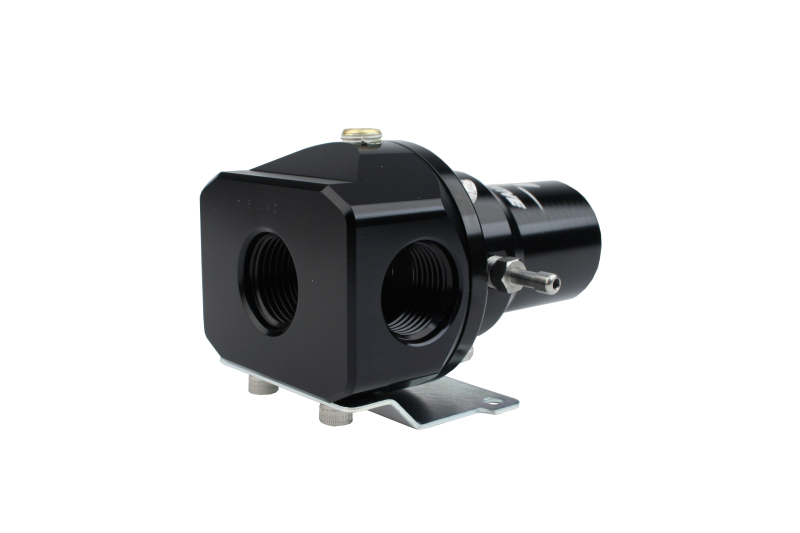

The Aeromotive 13134 Extreme Flow EFI Fuel Pressure Regulator is engineered for high-performance applications requiring precise fuel delivery. Designed to work seamlessly with Eliminator, Pro Pump, and Dual A1000 fuel systems, this regulator features a compact two-port body with dual AN-10 inlet/outlet ports and one AN-10 return port, providing versatile installation options. The 0.313 high-flow valve/seat supports fuel flow rates between 3 and 9 gallons per minute, making it suitable for demanding fuel pump setups. Dual springs enhance the operating pressure range, allowing the regulator to support base fuel pressures from 30 PSI up to 120 PSI, with an installed standard spring supporting 30-75 PSI and an included high-pressure spring supporting 75-120 PSI. The regulator supports vacuum and boost reference on a 1:1 ratio with PSI, ensuring accurate fuel pressure regulation under various engine conditions. Its low-profile design reduces weight and space requirements, making it ideal for high-performance automotive applications that demand reliable fuel regulation. Constructed by Aeromotive, this regulator combines durability and precision to optimize engine performance and efficiency.
Features:
- Extreme Flow Design is ideal with Eliminator, Pro-Pump, Dual A1000, and Brushless 3.5 and 5.0 Gear Pump fuel systems.
- Suitable for Mechanical pumps up to 6.0 GPM.
- Compact, 2-Port Body with dual ORB-10 inlet/outlet ports and one ORB-10 return port.
- High Flow 0.313" Valve/Seat, optimized for larger electric fuel pumps in the 2.5-6.0 GPM flow range.
- Dual Springs expand the pressure range while maintaining a low profile and reduced weight.
- Standard spring (installed) supports 30-75 PSI base fuel pressure.
- High-pressure spring (included) supports 75-120 PSI base fuel pressure.
- Systems where an electric pump is desired and where base pressure exceeds 70-PSI should run two pumps of similar flow rate, in series.
- This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
- Vacuum and boost reference on a 1:1 ratio.
- Compatible with gasoline, ethanol, and methanol.
Specifications:
- Pressure Range: 30-120 PSI
- Adjustable: Yes
- Minimum Pressure: 30 PSI
- Maximum Pressure: 120 PSI
- Mounting Bracket Included: Yes
- Port Quantity: 2
- Inlet Port Diameter: ORB-12
- Inlet Gender: Female
- Gauge Included: No
- Color: Black
- Grade Type: Performance
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
