Product Details
| Part Number: | 12341 |
| Brand: | Aeromotive |
| Color: | Black |
| Size: | -12AN |

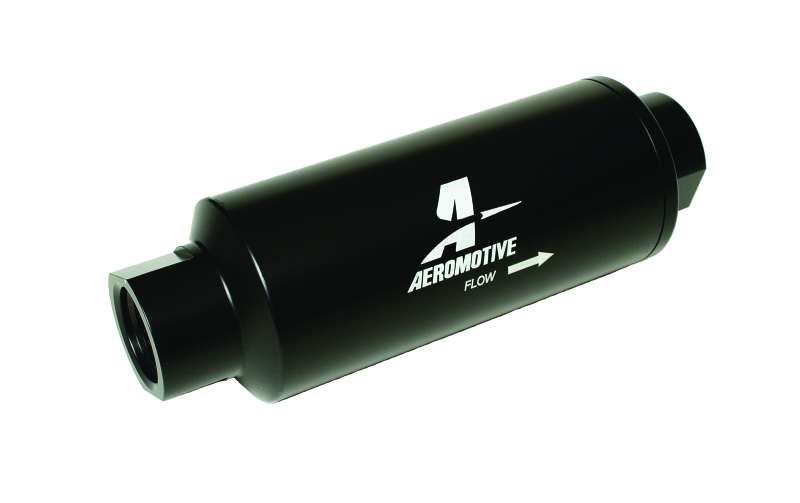

The Aeromotive In-Line Marine Filter is designed to provide high-flow filtration with minimal pressure drop, making it ideal for demanding marine and automotive applications. Constructed from aircraft-grade billet aluminum alloy and precision hard-coated, this filter ensures durability and resistance to harsh conditions. The compact design features pleated filtration media, which maximizes surface area to deliver superior flow rates while maintaining low resistance. The 10-micron microglass element effectively captures contaminants, ensuring clean fuel delivery in marine, racing, and high-performance environments. Its AN-12 (ORB) port size allows for easy installation into existing fuel systems, providing a reliable solution for performance enthusiasts seeking optimal filtration performance.
Features:
- Aircraft-grade billet aluminum construction for durability
- Precision hardcoated finish for corrosion resistance
- Pleated design maximizes surface area for efficient filtration
- 10-micron microglass element effectively captures contaminants
- In-line design with AN-12 (ORB) port for easy installation
- Suitable for use with E85 and alcohol-based fuels
- Compact size with a 2-1/2 inch outer diameter for space-efficient installation
- Marine-grade build designed to withstand harsh environments
Specifications:
- Fuel Filter Style: Inline
- Fuel Type: All Fuels
- Fuel Type: E85/Alcohol
- Inlet Quantity: 1
- Inlet Size: AN-12
- Inlet Attachment: Female Thread
- Inlet Outside Diameter: AN-12
- Outlet Quantity: 1
- Outlet Size: AN-12
- Outlet Attachment: Female Thread
- Outlet Outside Diameter: AN-12
- End 1 Gender: Female
- End 2 Gender: Female
- Fitting Type: AN-12
- Fittings Included: No
- Filter Element Included: Yes
- Filter Element Material: Microglass
- Micron Rating: 10
- Smallest Particle Filtered: 10 microns
- Flow Rate: 2000 Pounds Per Hour
- Filter Housing Color: Black
- Filter Housing Finish: Anodized
- Filter Housing Diameter: 2.5 Inches
- Filter Housing Length: 7 Inches
- Filter Housing Material: Billet Aluminum
- Mounting Type: External
- Mounting Bracket Included: No
- Clamps Included: No
- Gasket Or Seal Included: Yes
- Maximum Fuel Pressure (psi): 70 PSI
- Universal Or Specific Fit: Universal
