An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 - 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.

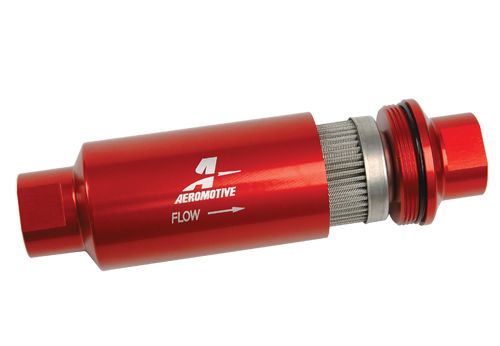

• High-flow, 100-micron stainless steel (coarse) cleanable element.
• Flows 2,000 lb/hr with a pressure drop of less than 1 PSI.
• Compact size: 5.5' long x 2' diameter
• ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes.
• All filter assemblies feature an O-ring for positive sealing in high pressure applications.
• CNC-machined from 6061-T6 aircraft aluminum.
• Bright dip black anodized finish for a corrosion resistant, show car quality appearance.
• 100-micron filters are designed for use between the fuel tank and the fuel pump to protect the pump
