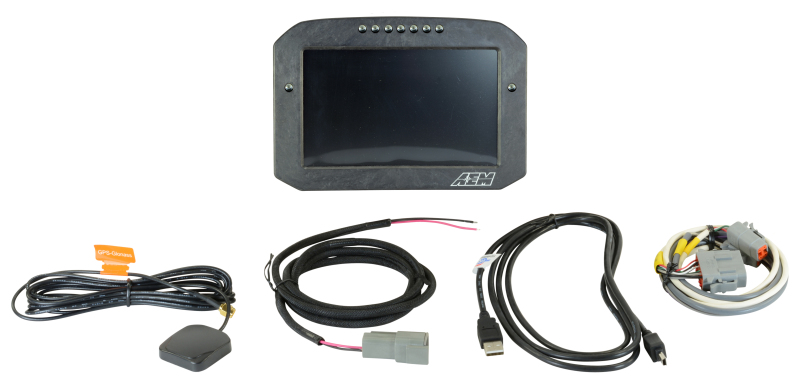

The AEM CD-7G Carbon Flush Digital Dash Display offers a high-resolution 7-inch full-color screen that is daylight readable, providing clear visibility in various racing conditions. Encased in a lightweight, rugged flow-molded carbon fiber composite housing, this dash combines durability with advanced technology for professional motorsport applications. It features seven programmable LED indicators on top for RPM and shift alerts, which can be customized to flash or dim according to user preferences, enhancing driver awareness during high-speed events. The integrated internal 20Hz GPS receiver and antenna enable precise tracking, lap timing, and vehicle dynamics data collection, making it ideal for track enthusiasts and professional racers alike.

Designed for versatility, the CD-7G supports multiple data channels from factory ECUs and CAN-enabled devices, allowing comprehensive vehicle monitoring. The dash can accept channels from 2008-up factory ECUs using a plug-and-play OBDII CAN adapter cable, and additional inputs such as temperature sensors and user-triggered events can be added through optional modules. Its seven programmable pages—including main screens, alarms, and custom pages—are configurable via the included DashDesign Graphics Editor software, enabling users to create tailored layouts and warning icons that suit their specific needs. The dash’s IP66 rating ensures it remains protected against water ingress, making it suitable for open cockpit environments.

Additional features include a dimmable night mode activated through a 'headlight-in' connection, an odometer function, and compatibility with a variety of ECU brands through plug-and-play adapter cables. The device supports side-by-side operation of CAN-enabled devices and non-CAN devices, providing seamless integration into existing vehicle systems. The included wiring harness and GPS antenna simplify installation, and the optional remote button kit allows quick page changes and memory clearing. Whether used for competitive racing or high-performance driving, the AEM CD-7G Carbon Flush Digital Dash delivers comprehensive, customizable, and reliable data visualization in a sleek, durable package.

Features:

• Full-color 7-inch daylight-readable display with 800x480 resolution
• Rugged, lightweight flow-molded carbon fiber enclosure for durability
• Seven programmable, dimmable LEDs for RPM and shift indication
• Internal 20Hz GPS receiver and antenna for precise vehicle dynamics and lap timing
• Supports multiple CAN and non-CAN channels from various vehicle ECUs
• Configurable through DashDesign Graphics Editor software
• Seven programmable pages, including main, alarm, and custom pages
• Accepts channels from 2008-up factory ECUs via plug-and-play OBDII CAN adapter
• Over 200 customizable warning icons with the option to add user graphics
• IP66 water resistance suitable for open cockpit environments
