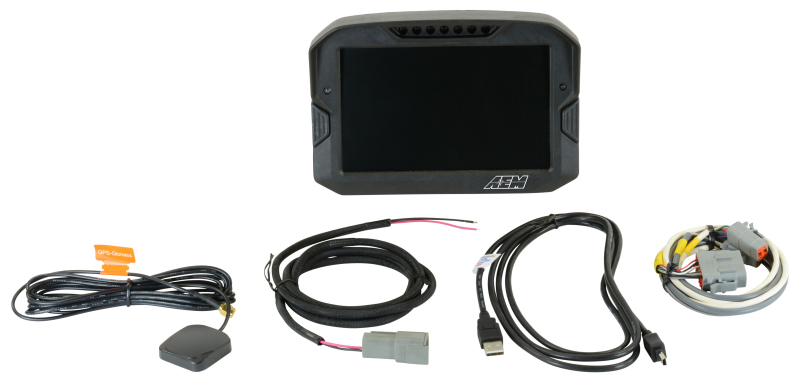

The AEM CD-7G Non-Logging GPS-Enabled Race Dash offers a high-performance, durable digital display designed for racing enthusiasts and professional drivers. Featuring a 7-inch full-color, sunlight-readable screen with an 800x480 resolution, this dash ensures clear visibility in all lighting conditions. The rugged flow-molded carbon fiber composite housing provides a lightweight yet tough enclosure, suitable for open cockpit, marine, and motorcycle applications. The dash includes a GPS antenna and wiring harness, enabling precise vehicle positioning and performance monitoring without the need for vehicle dynamics modules. Its CAN input interface allows seamless integration with AEMnet-enabled devices and third-party ECUs, making it versatile for various vehicle configurations.

Features:

• Total display weight of 20.9 oz. / 595 grams
• Accepts channels from two separate user programmable CAN bus connections - works with AEMnet-enabled devices and non-AEM 3rd party devices side by side
• Seven programmable pages, including four Main pages, Alarm, On-Change, and Start-up pages
• Install the CD-7 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
• Wiring interface/harness is identical to the CD-5 Carbon
• User-supplied graphics can be changed based on channel values (up to the full screen size)
• Free DashDesign Graphics Editor software
• Add a Vehicle Dynamics Module for GPS, 3-axis gyroscope, and 3-axis accelerometer for G-loads, roll, pitch, yaw, track mapping, and lap timing (PN 30-2206, sold separately)
• Odometer function
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• 'Headlight-in' connection dims the dash and LEDs during night operation
• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)
• Add an 8 Channel K-Type EGT CAN Module for 8 additional temps via AEMnet CAN bus (PN 30-2224, sold separately)
• Two programmable LEDs
• Layout files are interchangeable with all versions of the CD-5 Carbon
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• IP65 water resistance - open cockpit, marine, and motorcycle safe
• Use included page layouts and input your channels and text, or create your own from scratch
• Full color 7" screen with 800x480 resolution
• Available with or without on-board 20Hz GPS receiver and antenna
• The unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Convert CAN bus channel values to user-defined text in multiple languages
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic, and Vi-Pec ECUs
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams, etc.)
