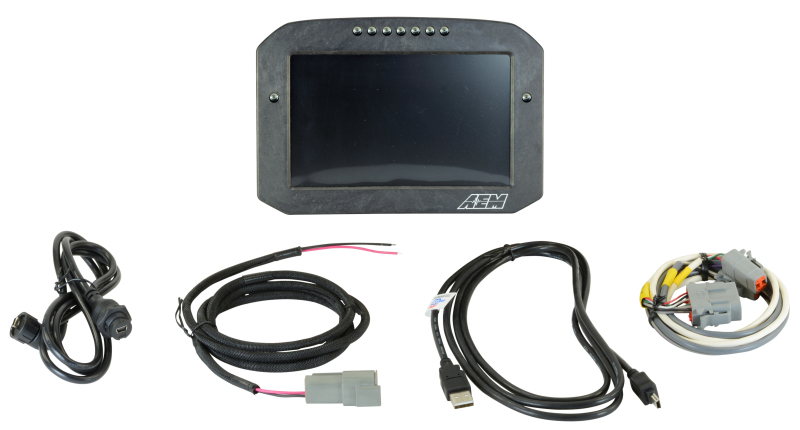

The AEM CD-7L Carbon Logging Flush Digital Dash Display offers a high-performance solution for automotive enthusiasts seeking comprehensive data monitoring. Featuring a 7-inch full-color, daylight-readable screen with 800x480 resolution, this dash provides clear visibility even in direct sunlight. Its rugged, lightweight flow-molded carbon fiber composite enclosure ensures durability and a sleek appearance suitable for open cockpit environments. The display includes seven ultra-bright LEDs along the top, which can be programmed to indicate RPM, shift points, or other critical parameters with adjustable brightness and flashing alerts for optimal driver awareness.

The CD-7L is designed with extensive customization in mind, offering seven programmable pages that can display data from multiple vehicle sensors and ECU inputs, including analog channels, CAN bus data, and user-defined graphics. Users can input custom warning icons, create unique layouts, and assign channel values to descriptive text or graphics, enhancing the dash’s versatility. The device supports integration with AEMnet CAN-enabled devices as well as non-AEM CAN bus systems, facilitating seamless connection to a wide range of vehicle electronics.

Additional features include a dedicated alarm page for quick troubleshooting, two extra switch inputs for user-triggered events, and an onboard 20 Hz GPS receiver option for precise lap timing and G-load measurements. The dash also offers an odometer function, headlight-in mode for night operation, and an anti-glare filter for optimum readability. Compatibility with optional remote button kits (sold separately) allows drivers to change pages or clear memory without distraction. The included wiring harness and plug-and-play adapter cables for popular ECUs make installation straightforward, while the optional internal logging capability captures data at up to 1,000Hz per channel for in-depth analysis. With IP66 water resistance, this dash is built to withstand harsh racing conditions and weather exposure, making it an ideal choice for professional and enthusiast racers alike.

Features:

• Full-color 7-inch daylight-readable display with 800x480 resolution
• Flow-molded carbon fiber composite enclosure for durability and lightweight design
• Seven programmable LED indicators for RPM and shift light alerts, adjustable brightness, and flashing
• Seven customizable pages, including main, alarm, on-change, and startup pages
• Supports CAN input from AEMnet and non-AEM devices for versatile data integration
• Dedicated alarm page with user-defined warnings in multiple languages
• Two extra programmable switch inputs for user-triggered events
• Optional onboard 20Hz GPS receiver for lap timing and G-load analysis
• Odometer function included for distance tracking
• Night mode with headlight-in feature to dim the display during night driving
• Over 200 customizable warning icons plus user-uploaded graphics
• Plug-and-play cables available for popular ECUs like Holley, MSD, and Link
• Available with or without internal data logging up to 1,000Hz per channel
• IP66 rated for water and dust resistance, suitable for open cockpit use
• Includes wiring harness; remote button kit sold separately
• Interchangeable layout files and customizable channel-to-text conversion
